A DIN rail is a long metal rail used for mounting electrical and industrial control equipment, such as power supplies, circuit breakers, or terminal blocks, inside a rack cabinet or housing. DIN stands for Deutsche Institut für Normung in German and in English, it translates to the German Institute of Standards. DIN rails were developed in Germany during the late 1920s and by the 1950s, DIN rails were developed into the current form and began to be widely used throughout the world. The use of a DIN rail system in industries allows for components to be mounted within close proximity of each other, which is ideal for environments with space limitations, and is a cost-effective solution as it reduces the amount wiring and space needed. There are three types of DIN rail; top hat section, C section, and G section. The Top Hat section, also referred to as TS35, measures at 35mm wide and are commonly used for mounting a wide range of electrical and industrial control equipment; circuit breakers, motor controllers, and remote I/O. There are also miniature top hat DIN rails, which measures at 15mm wide and are more commonly used for mounting smaller equipment, such as relays. The C section, also referred to as TS32, measures at 32mm wide and is used for mounting heavier equipment, such as power supplies and transformer. The G section features a deeper recess on one side with the deeper end positioned on the lower edge. The G section rail offers additional support for heavier equipment.

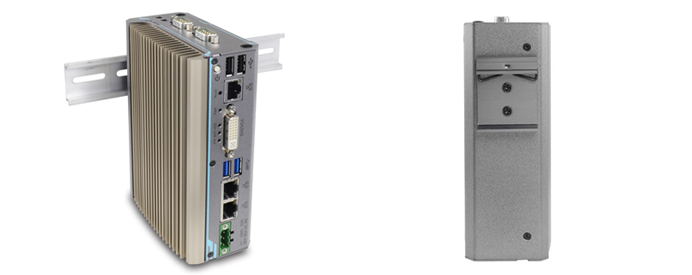

Acnodes' compact fanless embedded computers with DIN-rail mounting:

FES9300: Compact DIN-rail fanless embedded computer powered by Atom E3950 Quad-Core processor comes with DVI + VGA dual display outputs, 1 x GbE LAN, 2 x GbE PoE+ ports,120GB SATA SSD, front I/O access DIN-mounting design, extended working temperature from -25°C to 70°C, and 12V DC power input. Option for external AC power adapter, wall mounting bracket, and Windows 10 OS.

FES9310: Compact DIN-rail fanless embedded computer powered by Atom E3950 Quad-Core processor comes with DVI + VGA dual display outputs, 3 x GbE LAN, 120GB SATA SSD, front I/O access DIN-mounting design, extended working temperature from -25°C to 70°C, and 12V DC power input. Option for external AC power adapter, wall mounting bracket, and Windows 10 OS.

FES9320: Compact DIN-rail fanless embedded computer powered by Pentium N4200 Quad-Core processor comes DVI + VGA dual display outputs, 1 x GbE LAN, 2 x GbE PoE+ ports, 120GB SATA SSD, DIN-mounting design, extended working temperature from -25°C to 70°C, and 12V DC power input. Option for external AC power adapter, wall mounting bracket, and Windows 10 OS.

FES9330: Compact DIN-rail fanless embedded computer powered by Pentium N4200 Quad-Core CPU comes with DVI + VGA dual display outputs, 3 x GbE LAN, 120GB SATA SSD, front I/O access DIN-mounting design, extended working temperature from -25°C to 70°C, and 12V DC power input. Option for external AC power adapter, wall mounting bracket, and Windows 10 OS.

Acnodes Corporation has a wide array of product line configurations. They can customize most commercial and industrial computers to one’s specific needs.  For information, please visit  www.acnodes.com or contact us at [email protected].

About Acnodes Corporation

Acnodes manufactures, designs, and markets industrial computers and display solutions for diverse industries ranging from automation to military.  We have an array of technological innovations in the area of rack mount servers, embedded computers, Panel PC’s and rugged monitors that create simpler and more valuable products to the customers. We work closely with our clients to customize computer products to meet their required projects and challenges. Acnodes strives to explore new technologies to better improve life and work.

Source: RS Components
