USB Hub KVM Switch - Rack KVM Console
An 8 or 16 port USB Hub KVM switch integrated into a 1U high rack console with an LCD panel and 104-key keyboard with touchpad. Option for remote or IP user console and DC power supply.
USB Hub KVM Switch - Rack KVM Console

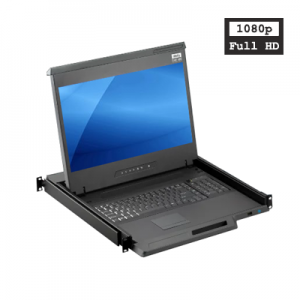

Rackmount KVM console drawer with a 16.2" to 19" industrial LCD monitor, 104-key keyboard with touchpad (option for trackball), 8 or 16 port KVM switch with USB hub, 1 x front USB port for system upgrades & shared USB peripherals, and a 1U high rackmount monitor drawer.
-
![]()
- 1U high 22.8 inch depth rackmount drawer
- 17 inch 1280 x 1024 industrial LCD monitor
- VGA video input
- 8 port USB Hub KVM switch, option for 16 port KVM switch
- 1 x local user console, option for remote or IP user console
- 1 x front USB port for system upgrades & shared USB peripherals
- 104-key keyboard with touchpad/trackball
- External 100/240 auto-sensing AC power adapter
- Option for 12V / 24V / 48V / 125V / 250V DC power supply
-
![]()
- 1U high 24.4 inch depth rackmount drawer
- 19 inch 1280 x 1024 industrial LCD monitor
- VGA video input
- 8 port USB Hub KVM switch, option for 16 port KVM switch
- 1 x local user console, option for remote or IP user console
- 1 x front USB port for system upgrades & shared USB peripherals
- 104-key keyboard with touchpad/trackball
- External 100/240 auto-sensing AC power adapter
- Option for 12V / 24V / 48V / 125V / 250V DC power supply
-
![]()
- 1U high 22.8 inch depth rackmount drawer
- 17.3 inch 1920 x 1080 Full HD industrial LCD monitor
- VGA video input
- 8 port USB Hub KVM switch, option for 16 port KVM switch
- 1 x local user console, option for remote or IP user console
- 1 x front USB port for system upgrades & shared USB peripherals
- 104-key keyboard with touchpad/trackball
- External 100/240 auto-sensing AC power adapter
- Option for 12V / 24V / 48V / 125V / 250V DC power supply
-
![]()
- 1U high 22.8 inch depth rackmount drawer
- 16.2 inch 1920 x 1200 WUXGA industrial LCD monitor
- VGA video input
- 8 port USB Hub KVM switch, option for 16 port KVM switch
- 1 x local user console, option for remote or IP user console
- 1 x front USB port for system upgrades & shared USB peripherals
- 104-key keyboard with touchpad/trackball
- External 100/240 auto-sensing AC power adapter
- Option for 12V / 24V / 48V / 125V / 250V DC power supply
-
![]()
- 1U high 22.8 inch depth rackmount drawer
- 19 inch 1440 x 900 widescreen industrial LCD monitor
- VGA video input
- 8 port USB Hub KVM switch, option for 16 port KVM switch
- 1 x local user console, option for remote or IP user console
- 1 x front USB port for system upgrades & shared USB peripherals
- 104-key keyboard with touchpad/trackball
- External 100/240 auto-sensing AC power adapter
- Option for 12V / 24V / 48V / 125V / 250V DC power supply
-
![]()
- 1U high 22.8 inch depth rackmount drawer
- 17 inch 1280 x 1024 industrial LCD monitor
- 1000 nits high brightness LED backlight LCD Panel
- VGA video input
- 8 port USB Hub KVM switch, option for 16 port KVM switch
- 1 x local user console, option for remote or IP user consoles
- 104-key keyboard with touchpad/trackball
- External 100/240 auto-sensing AC power adapter
- Option for 12V / 24V / 48V / 125V /250V DC power supply
-
![]()
- 1U high 24.4 inch depth rackmount drawer
- 19 inch 1280 x 1024 industrial LCD monitor
- 1000 nits high brightness LED backlight LCD Panel
- VGA video input
- 8 port USB Hub KVM switch, option for 16 port KVM switch
- 1 x local user console, option for remote or IP user consoles
- 104-key keyboard with touchpad/trackball
- External 100/240 auto-sensing AC power adapter
- Option for 12V / 24V / 48V / 125V / 250V DC power supply
REFERENCE
What is a USB KVM Switch?
A USB KVM switch integrates a USB hub into a KVM Switch, where it centralizes control of PC and peripheral functions from a single rack console. It allows the user to share USB devices on multiple computers without detaching the USB device from the console. For example, if you wanted to use a specific thumb drive for all 8 computers connected to your KVM switch, all you would need to do is attach the thumb drive on the front USB input and change from port to port. This will allow each computer to see the thumb drive without any other requirements from the user. This can be helpful for software upgrades on multiple platforms and is super convenient especially when the built-in monitor and keyboard are utilized.
