Wide Temperature Touch Panel PC (-40°C to 70°C)
The PCW81XX wide temperature touch panel PC series is a power-optimized and robust embedded HMI featuring an industrial-grade flat LCD panel design with an IP65-rated aluminum front bezel, PCAP touch screen technology, and a wide operating temperature range of -40°C to 70°C (-40°F to 158°F). Powered by Intel 11th Generation Tiger Lake Core i7/i5 UP3 processors, these fanless systems support up to 32GB DDR4 memory, M.2 slots, one 2.5” lockable SATA HDD tray, one audio jack, two RJ45 Ethernet ports, DC input, and Windows 10. These wide temperature panel PCs are ideal for use as a Web Brower, Terminal, and HMI in all levels of automation control and harsh industrial environments.
Wide Temperature Touch Panel PC (-40°C to 70°C)
15.6", 18.5", and 19" wide temperature touch panel PCs featuring an IP65-rated flat front bezel design, PCAP touch screen technology, Intel Tigerlake UP3-Series processors, various I/O ports, Panel or VESA mounting, and a wide working temperature range of -40°C to 70°C (-40°F to 158°F).
-
![]()

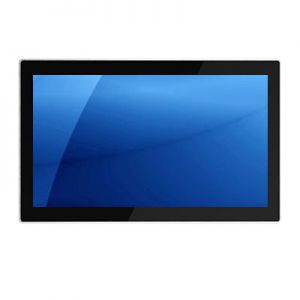

- 15.6" industrial PCAP touch panel PC
- Supports Full HD (1920 x 1080) resolution
- Intel Tigerlake-UP3 Core i3 / i5 / i7 processors
- 1 x removable 2.5" HDD/SDD tray
- 4 x USB, 2 x GbE LAN, 1 x DP, 4 x COM, 1 x Audio Out
- IP65 compliant flat front aluminum bezel
- -40°C to 70°C wide range working temperature
- Supports Panel or VESA mounting
- 12~24V DC wide-range power input
-
![]()
- 18.5" industrial PCAP touch panel PC
- Support Full HD (1920 x 1080) resolution
- Intel Tigerlake-UP3 Core i3 / i5 / i7 processors
- 1 x removable 2.5" HDD/SDD tray
- 4 x USB, 2 x GbE LAN, 1 x DP, 4 x COM, 1 x Audio Out
- IP65 compliant flat front aluminum bezel
- -40°C to 70°C wide range working temperature
- Supports Panel or VESA mounting
- 12~24VDC wide range power input
-
![]()

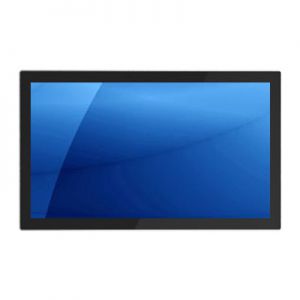

- 19-inch 1280 x 1024 industrial LCD monitor
- Projected Capacitive type touch screen - USB
- Intel Tigerlake-UP3 Core i5-1145GRE processor
- 4GB DDR4 memory (Up to 32GB) & 120GB SSD
- 1 x removable 2.5" HDD/SDD tray
- 4 x USB, 2 x GbE LAN, 2 x DP, 4 x RS-232/422/485, 1 x Audio
- -40°C to 70°C wide range working temperature
- IP65 rated flat front aluminum bezel
- Supports Panel or VESA mounting
- 9~55V DC wide-range power input
