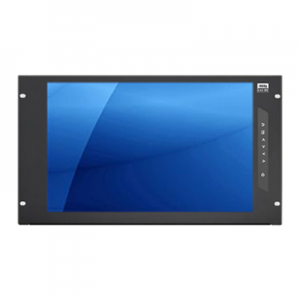

17/19/20.1 inch LCD Monitor
17" / 19" / 20.1" rackmount LCD monitors designed for broadcasting and industrial monitoring applications. The rackmount monitors offer VGA + DVI-D input and feature front built-in OSD function buttons that allow users to conveniently control and adjust the monitor's settings. The LCD panels are integrated into a 7U to 9U high rackmount enclosure designed for a standard 19-inch wide rackmount cabinet. Options are available for an IP65 rated front bezel, Resistive or Capacitive type touch screen, HDMI / BNC / Audio / SDI input, and DC power input.

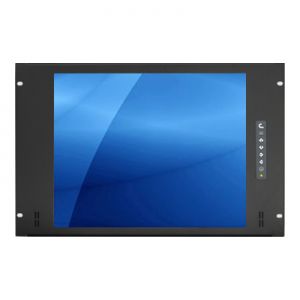

17/19/20.1 inch LCD Monitor
7U 17" / 8U 19" / 9U 20.1" rackmount LCD monitors featuring VGA + DVI-D video input, front OSD functions, and a 100/240VAC power input. The rackmount monitors are built to last and designed for a standard 19" rackmount cabinet for broadcasting and other industrial applications.
-
![]()
- 7U high rackmount monitor
- 17 inch 1280 x 1024 industrial LCD panel
- Front OSD (On Screen Display) function
- VGA + DVI-D video input, option for BNC / HDMI / Audio input
- Option for Resistive or Capacitive type touch screen
- Option for IP65 / NEMA4 rated front bezel
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- Option for 12V / 24V / 48V / 125V / 250V DC power input
-
![]()
- 8U high rackmount monitor
- 19 inch 1280 x 1024 industrial LCD panel
- Front OSD (On Screen Display) function
- VGA + DVI-D video input, option for BNC / HDMI / Audio / SDI
- Option for Resistive or Capacitive type touch screen
- Option for IP65 / NEMA4 rated front bezel
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- Option for 12V / 24V / 48V / 125V / 250V DC power input
-
![]()
- 9U high rackmount monitor
- 20.1 inch 1600 x 1200 industrial LCD panel
- Front OSD (On Screen Display) function
- VGA + DVI-D video input, option for BNC / HDMI / Audio / SDI
- Option for Resistive type touch screen monitor
- Option for IP65 / NEMA4 rated front bezel
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- Option for 12V / 24V / 48V / 125V / 250V DC power input
