High brightness - sun light readable
For use in both outdoor and indoor industrial display applications, Acnodes has integrated an industrial monitor that features high brightness LCD displays (17 inch 800nits 500:1, 19 inch 800-nits 700:1) with a rugged rackmount monitor enclosure. It also comes with VGA and DVI-D video input with easy access to the ON/OFF switch located on the front panel. Option for touch screen monitor and S-Video/BNC/DVI video input are also available.
-
![]()

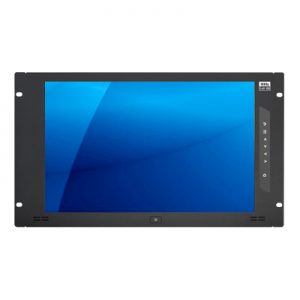

- 6U high Rackmount monitor
- 17.3 inch 1920 x 1080 industrial monitor
- Support Full HD with 1080P resolution
- 1000-nit high brightness display
- Option for touch screen monitor & MCS control
- VGA + DVI-D video input
- Option for BNC / S-Video / HDMI / Audio video input
- 2 x 2W stereo speaker
- 110/240VDC power input
- Option for 12V, 24V or 48V DC power
-
![]()

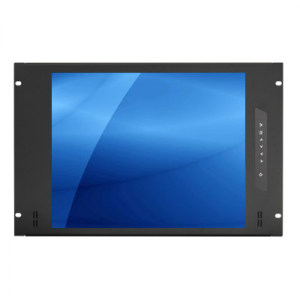

- 7U high rack mount monitor,
- 17 inch 1280 x 1024 1000-nit high brightness monitor
- VGA + DVI video input
- OSD (On Screen Display) function
- 110/220VAC power adapter, Option for VDC power input
- Option for BNC / HDMI / S-Video video input
- Option for touch screen monitor
-
![]()

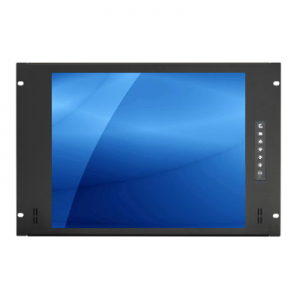

- 8U high rack mount monitor,
- 19 inch 1280 x 1024 1000-nit high brightness monitor
- VGA and DVI video input
- OSD (On Screen Display) function
- 110/220VAC power adapter, Option for VDC power input
- Option for BNC / HDMI / S-Video video input
- Option for touch screen monitor
-
![]()

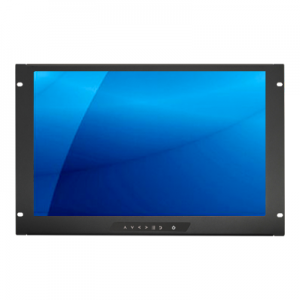

- 7U high Rack mount monitor
- 19 inch 1440 x 900 wide screen industrial monito
- 1000-nit high brightness LED back light LCD panel
- Option for touch screen monitor and MCS control
- VGA and DVI-D video input
- Option for S-video / BNC / Audio input
- 110/220VDC power input
- Option for 12V, 24V or 48V DC power
-
![]()

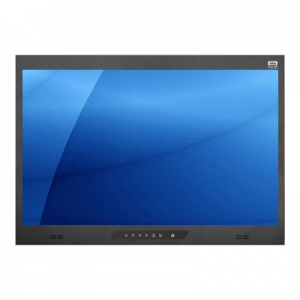

- 8U high Rackmount monitor
- 21.5 inch 1920 x 1080 LED back light industrial monitor
- Support Full HD with 1080P resolution
1000-nit high brightness LCD panel - Option for touch screen monitor and MCS control
- VGA + DVI-D + HDMI video input
- Option for BNC / S-Video / Audio video input
- 2 x 2W stereo speaker
- 110/220VDC power input
- Option for 12V, 24V or 48V DC power
-
![]()
- Rugged rack mount monitor
- 15 inch 1024 x 768 industrial LCD panel
- 800-nit high brightness sunlight readable screen
- IP vdieo decoder
- AR glass for LCD monitor protection
- Wide working temperature -40ºC to 55ºC
- Wide range 18~36V DC power input
-
![]()
- Rugged rack mount monitor
- 19 inch 1280 x 1024 industrial LCD panel
- 1000-nit high brightness sunlight readable screen
- IP Video Decoder
- AR glass for LCD monitor protection
- Wide working temperature -40ºC to 55ºC
- Wide range 18~36V DC power input
