Matrix Cat6 KVM Rack LCD Console

Rack KVM consoles integrating a 16 or 32-port Matrix Cat6 KVM switch, industrial LCD monitor, and 104-key keyboard into a 1U high rack drawer. The Matrix KVM console allows simultaneous and independent access from up to 4 consoles. Acnodes Matrix Cat6 KVM rack LCD consoles feature high-definition video support, multi-platform support, port switching and channel selection options, and easy expansion via KVM cascading.

Matrix Cat6 KVM Rack LCD Console

17" / 19" / 20.1" rack KVM consoles with an integrated 16-port or 32-port Matrix Cat6 KVM switch, industrial LCD monitor, and a 104-key keyboard with touchpad in a 1U high rack drawer designed for 19" wide rack cabinets.
Set Descending Direction

6 Items

per page

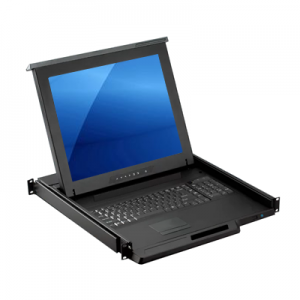

    • 1U 17" rack KVM console drawer
    • Supports 1280 x 1024 display resolution
    • VGA video input
    • 104-key keyboard with 2-button touchpad - USB
    • 16-port Matrix Cat6 KVM switch, option for 32 port
    • 1 x local console + 1 x remote console with receiver
    • Option for SUN Micro or MAC keyboard layout
    • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    • 1U high 22.8" (580mm) depth rackmount drawer
    $2,272.00
    • 1U 19" rack KVM console drawer
    • Supports 1280 x 1024 display resolution
    • VGA video input
    • 104-key keyboard with 2-button touchpad - USB
    • 16-port Matrix Cat6 KVM switch, option for 32 port
    • 1 x local console + 1 x remote console with receiver
    • Option for SUN Micro or MAC keyboard layout
    • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    • 1U high 24.4" (620mm) depth rackmount drawer
    $2,370.00

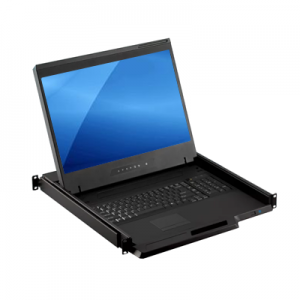

    • 1U 17.3" FHD rack KVM console drawer
    • Supports 1920 x 1080 display resolution
    • VGA video input
    • 104-key keyboard with 2-button touchpad - USB
    • 16-port Matrix Cat6 KVM switch, option for 32 port
    • 1 x local console + 1 x remote console with receiver
    • Option for SUN Micro or MAC keyboard layout
    • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    • 1U high 22.8" (580mm) depth rackmount drawer
    $2,516.00
    • 1U 19" widescreen rackmount LCD console drawer
    • Supports 1440 x 900 display resolution
    • VGA video input
    • 104-key keyboard with 2-button touchpad - USB
    • 16-port Matrix Cat6 KVM switch, option for 32 port
    • 1 x local console + 1 x remote console with receiver
    • Option for SUN Micro or MAC keyboard layout
    • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    • 1U high 22.8" (580mm) depth rackmount drawer
    $2,340.00
    • 1U 20.1" rackmount LCD console drawer
    • Supports 1600 x 1200 display resolution
    • VGA video input
    • 104-key keyboard with 2-button touchpad - USB
    • 16-port Matrix Cat6 KVM switch, option for 32 port
    • 1 x local console + 1 x remote console with receiver
    • Option for SUN Micro or MAC keyboard layout
    • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    • 1U high 25.6" (650mm) depth rackmount drawer
    $3,275.00
    • 1U 17" rack KVM console drawer
    • Supports 1280 x 1024 display resolution
    • VGA video input
    • 104-key keyboard with a wired mini USB optical mouse
    • 16-port Matrix Cat6 KVM switch, option for 32 port
    • 1 x local console + 1 x remote console with receiver
    • Molded front handle and two point lock
    • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    • 1U high 25.6" (650mm) depth rackmount drawer
    $2,340.00
Set Descending Direction

6 Items

per page

REFERENCES
What is a Matrix Cat6 KVM Switch?
Matrix KVM switches are designed for modern data centers that require reliable, high-security access and control of multiple servers. It has efficient system management with simultaneous multi-user access that allows multiple inputs (two or more) to be routed specifically to multiple outputs (two or more). This is a simple switcher that selects from multiple input ports and connects to a single output port or a single input port to multiple output ports. Matrix KVM switches provide a diversity of user consoles to access the rackmount server independently & simultaneously, the user profiles can be configured by OSD menu (multi-lingual supported) or hotkey function and eight characters password protection. Acnodes Matrix Cat6 KVMs provide multiple ports (16 / 32) which connect to the server and multi-user console (2 to 4) to work independently and simultaneously control up to 16 / 32 directly connected servers. The RJ-45 Cat6 KVM ports can be connected to the server by a Cat6 ethernet cable with a particular dongle(USB or PS/2 type). The console users can access the server through a remote RJ-45 ethernet cable with a receiver, onboard local console port, and RJ-45 KVM over an IP switch port. Locally the user manages the server via intuitive hotkey combinations or On Screen Display (OSD) menus (no software required) and supports multiplatform ( PC, Mac, and Sun). Remotely the user manages the server through a JAVA-base WEB browser, The embedded firmware provides the user login and event log on one Syslog server. Fireware upgrades can be performed through the network.

DOWNLOADS
Integrated Matrix Cat6 KVM for LCD Console Drawers

Cat6 KVM Dongles-Catalog
