Rugged Embedded Computer

Rugged embedded computers are high-performance, reliable, and compact systems designed to operate under harsh environmental conditions for mission-critical operations and military applications. The embedded computers feature high-performing Intel processors (Atom / Celeron / Core) with flexible configurations to meet various industrial applications. The embedded systems are designed with a rugged IP-rated enclosure with MIL-STD testing compliance, making them highly reliable and fully equipped to withstand extreme environments. Each fanless embedded system is built with an aluminum heat sink and a heavy-duty steel frame featuring extended temperature ranges and resistance to shock & vibration.

- Fully IP67 rated fanless embedded computer
- Intel Core i7-9700TE 1.8GHz processor
- 16GB onboard DDR4 memory
- Extended working temperature range from -40°C to 70°C
- VGA video port, 4 x GbE PoE+, 1 x 10GbE, 2 x USB, 2 x COM
- Option for 8 x GbE PoE+ ports & GPS module
- MIL-STD-810G in vibration and shock
- 8~48V DC power input
FES1700

$4,485.00

Out of stock
- Fully IP65 rated fanless embedded microbox
- Atom Quad Core E3845 1.91GHz processor
- 4GB onboard memory, up to 8GB memory
- Extended working temperature range from -25°C to 70°C
- 1 x VGA video out port, Gigabit LANs, and 2 x USB
- Anodized and deactivated surface coating
- 4-corner bumper protection
- 9~36V DC power input
FES9120

$935.00
- Fully IP66 rated fanless embedded microbox
- Atom X7-E3950 1.60GHz processor
- 8GB onboard memory
- Extended working temperature range from -25°C to 70°C
- 1 x HDMI output, 1 x LAN, 2 x USB, 2 x CanBus
- Anodized and deactivated surface coating
- 4-corner bumper protection
- 9~36V DC power input
FES9125

$1,465.00

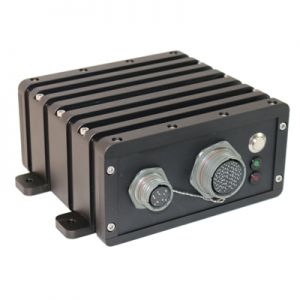

- Fully IP67 rated fanless embedded microbox
- Intel Celeron N2930 1.83GHz Quad Core processor
- DDR3L 1066MHz SODIMM memory
- VGA + HDMI video output
- 2 x USB 2.0, 1 x GbE LAN, 2 x COM (1 for RS-232, 1 for RS-422)
- Extended working temperature range from -30°C to 65°C
- MIL-STD-810F in temperature, vibration, and shock
- MIL-STD-461F EMC compliance
- 9~36V DC power input (D38999)
FES9267
- Fully IP67 rated fanless embedded microbox
- Intel 6th Gen. Core i7-6600U 2.6GHz CPU
- DDR3L 1066MHz SODIMM memory
- VGA + DVI video output, option for VGA + HDMI output
- 2 x USB 2.0, 1 x GbE LAN, 2 x COM (1 for RS-232, 1 for RS-422)
- Extended working temperature range from -20°C to 60°C
- MIL-STD-810F in temperature, vibration, and shock
- MIL-STD-461F EMC compliance
- 9~36V DC power input
FES9280

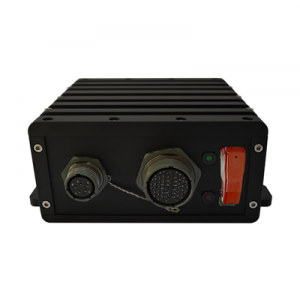

- Fully IP67 rated fanless embedded computer
- Intel 9th Gen. Core i7-9850HL CPU, Up to 4.1GHz
- Onboard DDR4 2400MHz, Max. 64GB memory
- 3 x USB 2.0, 1 x RS-232/422/485, 1 x GbE LAN
- 1 x HDMI port and 1 x GPIO port
- Extended working temperature range from -20°C to 60°C
- MIL-STD-810G in temperature, vibration, and shock
- MIL-STD-461F EMC compliance
- 9 to 36V DC power input (D38999 compliant)
FES9281

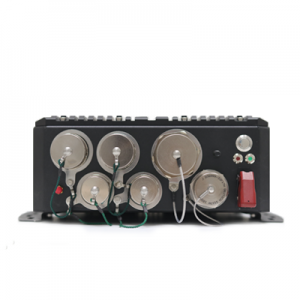

- Fully IP67 rated fanless embedded microbox
- Intel 9th Gen. Core i7-9700TE 3.8GHz CPU, Up to 3.8GHz
- NVIDIA RTX 3000 with 6GB DDR6 memory
- 2 x USB 2.0, 1 x RS-232/422/485, 1 x GbE LAN, 1 x HDMI output
- 2 x USB 3.0 Type A + 1 x 10G LAN via D38999 connectors
- Option for 1 x GPS with MTK support
- MIL-STD-810G & MIL-STD-461F EMC compliance
- Extended working temperature range from -10°C to 55°C
- 9 to 36V DC power input
FES9281-CU02

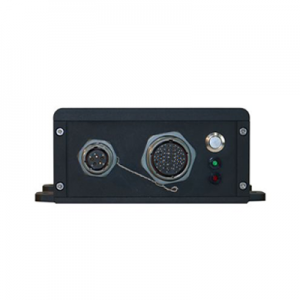

- Fully IP67 rated fanless embedded microbox
- Intel Core i7-7700T 2.9GHz quad-core CPU
- 32GB DDR4 2133/2400 MHz memory
- 1 x M.2 B-key and 1 x 2.5"removable storage bay
- 3 x USB 2.0, 1 x RS-232, 1 x HDMI output
- 1 x GbE LAN and 1 x 10G Base-T Ethernet
- -20°C to 65°C wide range working temperature
- MIL-STD-810G & MIL-STD-461F compliance
- 9 to 36V DC power input
FES9282

REFERENCES
Advantages of Fanless Embedded Computers
Embedded computers are used in many industries in the world. Most of the industries required high-performance computers that can integrate into the existing device easily. Embedded computers referred to as self-contained PC that are used as part of a larger system. Moreover, embedded computers serve as data collection or modern interactive tasks. Embedded computers are a technology that people and the smart system can rely on nowadays. There are several benefits of using an embedded computer in a larger device or system. First, embedded computers offer a number of important advantages over regular consumer PCs. With the low maintenance feature, the embedded computer itself provides reliability inside complex systems. Industrial computers are provided with a fanless enclosure design to reduce the heat while the systems are in operation. The enclosure also protects the system from water and dust, extended temperature ranges. Moreover, fanless embedded computers brought a lot of benefits to industrial places. For example, the passive cooling system helps the embedded computer to remain sealed while reducing the heat. By removing the fan it decreases failure rates, reduces the noise, and provides spaces for integrated components.

What is an IP Rating?
Dust and water are often found together in industrial environments. Unfortunately, they can also be exceptionally harmful to electrical components. If a computer is being used in an environment where dust and moisture are prevalent, then the IP (Ingress Protection) rating must be considered. IP ratings are standards for electrical enclosures defined by the IEC (International Electrotechnical Commission). The rating refers to the degree of protection against water and dust provided by a computer's enclosure. The IP rating is expressed as a two-digit number (Example: IP-65). The first number designates protection from solids, while the second number designates protection from liquids. Any computer product being used in a truly industrial environment should have an IP rating of IP-65 in order to be fully protected from dust and liquids.
