DVI-D KVM Rack LCD Console

A 12-port DVI KVM switch integrated into a 1U high rack console drawer with an industrial LCD panel and 104-key keyboard with touchpad. The KVM console allows users to control multiple servers from one keyboard, video, and mouse setup. Option for a keyboard with trackball input device and DC power input.

DVI-D KVM Rack LCD Console

17" to 19" rackmount keyboard drawers with an industrial LCD monitor, 104-key keyboard with touchpad, and a 12 port DVI KVM switch integrated into a 1U high rackmount drawer.

- 1U high 22.8 inch depth rackmount drawer
- 17 inch 1280 x 1024 industrial LCD monitor
- 104-key keyboard with 2-button touchpad
- 12-port DVI-D KVM switch
- Option for 6ft or 15ft DVI-D + USB KVM cables
- Slim design with molded front handle & short-depth design
- Configurable on-screen display (OSD) & hotkey combination
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
KD81712

$1,801.00

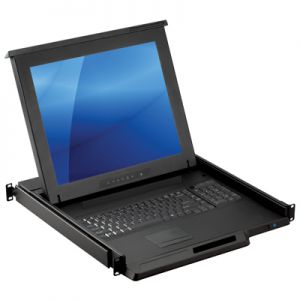

- 1U high 24.4 inch depth rackmount drawer
- 19 inch 1280 x 1024 industrial LCD monitor
- 104-key keyboard with 2-button touchpad
- 12-port DVI-D KVM switch
- Option for 6ft or 15ft DVI-D + USB KVM cables
- Slim design with molded front handle & short-depth design
- Configurable on-screen display (OSD) & hotkey combination
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
KD81912

$1,899.00

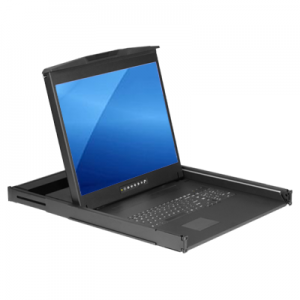

- 1U high 25.6 inch depth rackmount drawer
- 20.1 inch 1600 x 1200 industrial LCD monitor
- 104-key keyboard with 2-button touchpad
- 12-port DVI-D KVM switch
- Option for 6ft or 15ft DVI-D + USB KVM cables
- Slim design with molded front handle & 2-point lock
- Configurable on-screen display (OSD) & hotkey combination
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
KD82212

$2,804.00

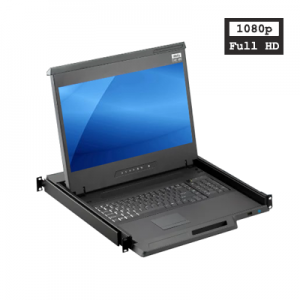

- 1U high 22.8 inch depth rackmount drawer
- 17.3 inch 1920 x 1080 Full HD industrial LCD monitor
- 104-key keyboard with 2-button touchpad
- 12-port DVI-D KVM switch
- Option for 6ft or 15ft DVI-D + USB KVM cables
- Slim design with molded front handle & short depth drawer design
- Configurable on-screen display (OSD) & hotkey combination
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
KDF81712

$2,045.00
- 1U high 22.8 inch depth rackmount drawer
- 17 inch 1280 x 1024 industrial LCD monitor
- 1000 nits high brightness sunlight readable LCD panel
- 104-key keyboard with 2-button touchpad
- 12-port DVI-D KVM switch
- Option for 6ft or 15ft DVI-D + USB KVM cable
- Slim design with molded front handle & short depth drawer design
- Configurable on screen display (OSD) & hotkey combination
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
KDH81712

$2,630.00
- 1U high 24.4 inch depth rackmount drawer
- 19 inch 1280 x 1024 industrial LCD monitor
- 1000 nits high brightness sunlight readable LCD panel
- 104-key keyboard with 2-button touchpad
- 12-port DVI-D KVM switch
- Option for 6ft or 15ft DVI-D + USB KVM cable
- Slim design with molded front handle & short depth drawer design
- Configurable on screen display (OSD) & hotkey combination
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
KDH81912

$2,765.00

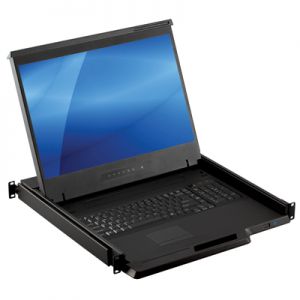

- 1U high 22.8 inch depth rackmount drawer
- 19 inch 1440 x 900 widescreen industrial LCD monitor
- 104-key keyboard with 2-button touchpad
- 12-port DVI-D KVM switch
- Option for 6ft or 15ft DVI-D + USB KVM cables
- Slim design with molded front handle & short depth drawer design
- Configurable on-screen display (OSD) & hotkey combination
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
KDW81912

$1,869.00
- 1U high 22.8 inch depth rackmount drawer
- 16.2 inch 1920 x 1200 WUXGA industrial LCD monitor
- 104-key keyboard with 2-button touchpad
- 12-port DVI-D KVM switch
- Option for 6ft or 15ft DVI-D + USB KVM cables
- Slim design with molded front handle & short depth drawer design
- Configurable on-screen display (OSD) & hotkey combination
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
KDX81712

$2,824.00
- 1U high 25.6 inch depth rackmount drawer
- 17 inch 1280 x 1024 industrial LCD monitor
- 104-key keyboard with wired optical mouse
- 12-port DVI-D KVM switch
- Option for 6ft or 15ft DVI-D + USB KVM cables
- Slim design with molded front handle and 2-point lock
- Configurable on-screen display (OSD) & hotkey combination
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
MKD91712

$1,869.00

REFERENCE
What is a DVI KVM Switch?
The Digital Visual Interface (DVI) is used to connect a video source to a display device, such as a computer monitor through the digital interface. DVI-D is used for direct digital connections between the source video and LCD monitor display, which is digital. All video cards initially produce a digital video signal, which is converted into analog at the VGA output. The analog signal travels to the monitor and is re-converted to a digital signal. The DVI-D eliminates the analog conversion process and improves the connection between the source and display.
