Open Frame Monitor - 8.4 Inch to 20.1 Inch

Open frame monitors featuring a slim open frame bare metal enclosure and an industrial-grade display for industrial or commercial and POS systems such as kiosks, ATM machines, vending machine displays, and much more. Open frame monitors do not have an enclosure or bezel surrounding the bezel, which gives you the freedom to design and build a custom enclosure based on your requirements. Acnodes’ open frame monitors are offered in many LCD sizes from 8.4” up to 20.1”, and provide a wide range of video input types including VGA, HDMI, DP, and DVI for various applications. These open frame monitors are also optionally available with a 1000-nits high brightness LCD panel, Resistive or Capacitive touch screen, AG or AR glass, EMI mesh shielding or UV film, light or motion sensor, wide range working temperatures, and DC power input.

Open Frame Monitor - 8.4 Inch to 20.1 Inch

8.4" to 20.1" open frame LCD monitors with VGA / HDMI / DVI / DP video input and a rugged open frame metal enclosure. The monitors have open frame face mounting holes and rear VESA mounting holes allowing users to easily mount the display into kiosks, walls, or pre-existing apertures.
Set Descending Direction

7 Items

per page
    • 8.4 inch open frame LCD monitor
    • Supports 800 x 600 display resolution
    • 450-nits brightness, option for 1000-nits high brightness
    • VGA + HDMI + DVI input, option for VGA + HDMI + DP input
    • Option for AG glass, AR glass, Resistive touch, Capacitive touch
    • Option for UV film, light/motion sensor, digital signage
    • -30°C to 80°C wide working temperature range
    • Wall and VESA (75 x 75mm) mount ready
    • 12V DC input with adapter
    $595.00

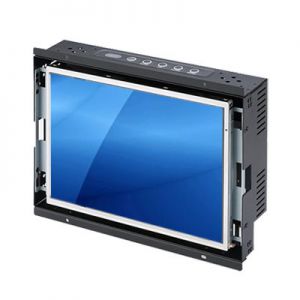

    • 10.4 inch open frame LCD monitor
    • Supports 800 x 600 display resolution
    • 350-nits brightness, option for 1000-nits high brightness
    • VGA + HDMI + DVI input, option for VGA + HDMI + DP input
    • Option for AG glass, AR glass, Resistive touch, Capacitive touch
    • Option for UV film, light/motion sensor, digital signage
    • Option for -30°C to 70°C wide working temperature
    • Wall and VESA (75 x 75mm) mount ready
    • 12V DC input with adapter
    $575.00
    • 12.1 inch open frame LCD monitor
    • Supports 800 x 600 display resolution
    • 250-nits brightness, option for 1000-nits high brightness
    • VGA + HDMI + DVI input, option for VGA + HDMI + DP input
    • Option for AG glass, AR glass, Resistive touch, Capacitive touch
    • Option for EMI mesh shielding, UV film, sensor, digital signage
    • Option for -30°C to 70°C wide working temperature
    • Wall and VESA (75 x 75mm) mount ready
    • 12V DC input with adapter
    $565.00
    • 15 inch open frame LCD monitor
    • Supports 1024 x 768 display resolution
    • 250-nits brightness, option for 1000-nits high brightness
    • VGA + HDMI + DVI input, option for VGA + HDMI + DP input
    • Option for AG glass, AR glass, Resistive touch, Capacitive touch
    • Option for EMI mesh shielding, UV film, sensor, digital signage
    • Option for -20°C to 70°C wide working temperature
    • Wall and VESA (75 x 75mm) mount
    • AC input with built-in power
    $520.00
    • 17 inch open frame LCD monitor
    • Supports 1280 x 1024 display resolution
    • 250-nits brightness, option for 1000-nits high brightness
    • VGA + HDMI + DVI input, option for VGA + HDMI + DP input
    • Option for AG glass, AR glass, Resistive touch, Capacitive touch
    • Option for EMI mesh shielding, UV film, sensor, digital signage
    • Option for -30°C to 80°C wide working temperature
    • Wall and VESA (75 x 75mm) mount
    • AC input with built-in power
    $540.00
    • 19 inch open frame LCD monitor
    • Supports 1280 x 1024 display resolution
    • 250-nits brightness, option for 1000-nits high brightness
    • VGA + HDMI + DVI input, option for VGA + HDMI + DP input
    • Option for AG glass, AR glass, Resistive touch, Capacitive touch
    • Option for EMI mesh shielding, UV film, sensor, digital signage
    • Option for -20°C to 70°C wide working temperature
    • Wall and VESA (100 x 100mm) mount
    • AC input with built-in power
    $625.00
    • 20.1 inch open frame LCD monitor
    • Supports 1600 x 1200 display resolution
    • 300-nits brightness
    • VGA + HDMI + DVI input, option for VGA + HDMI + DP input
    • Option for AG glass, AR glass, Resistive touch touch
    • Option for EMI mesh shielding, UV film, sensor, digital signage
    • Wall and VESA (100 x 100mm) mount
    • AC input with built-in power
    $950.00
Set Descending Direction

7 Items

per page


DOWNLOADS
Open Frame Mounting Installation Instructions
LCD Monitor OSD Operation for VGA + HDMI + DVI
External OSD Box for Open Frame Monitors - Image


REFERENCES
Open Frame Monitors: Customized Mounting Solutions
Acnodes' open frame monitors can be easily configured to satisfy specific requirements and offers options for various mounting solutions and touch screen displays. These monitors ideal for a wide range of applications including rugged outdoor environments, industrial applications, kiosks, cabinet displays, and custom-built machines. Acnodes has a lineup of customizable mounting solutions, both panel mount monitors and open frame monitors, that are designed to adapt to almost limitless mounting surfaces and specifications. Acnodes panel mount monitors provide an industrial LCD display panel integrated into a rugged metal open frame that is available with or without an aluminum front bezel.

What is an Open Frame Monitor?
An open frame monitor is a display that is integrated into a bare metal chassis without an enclosure or bezel. The advantage of an open frame monitor is the flexible design that allows it to be integrated into a wide range of applications. Since these monitors do not have an enclosure, it can be easily fitted into existing equipment or structural housings, such as kiosks. In addition, an open frame monitor gives users the freedom to design a custom bezel for individual projects or specific industry requirements. Open frame monitors can be used in a wide range of industrial and commercial industries, such as point-of-sale, industrial automation, surveillance systems, OEM, ATM machines, and much more. Acnodes' open frame monitors can be easily configured to satisfy specific requirements and offers options for various mounting solutions and touch screen displays. These monitors ideal for a wide range of applications including rugged outdoor environments, industrial applications, kiosks, cabinet displays, and custom-built machines. Acnodes has a lineup of customizable mounting solutions, both panel mount monitors and open frame monitors, that are designed to adapt to almost limitless mounting surfaces and specifications

Touch Screen Monitors - Overview
A touch screen acts as an interface between humans and computers in an automation control unit. Unlike keyboards or mice, touch screens provide convenience and user-friendly access to receive information from one computer to another. Touch screens work by detecting touch points according to physical relations and are divided into three types: Resistive type, Capacitive type, and Acoustic or Infrared. A resistive type touch screen consists of a glass panel and film screen that functions when a finger or other stylus produces voltage by way of pressure sensors. A capacitive type touch screen comes with a transparent electrode layer that relies on the electrical properties of the human body to detect when and where on a display the user touches. Lastly, the projected capacitive type touch screen, which is similar to the capacitive type touch screen, is composed of a sheet of glass with embedded transparent electrode films and an IC chip that supports multi-touch.
