VGA KVM Rack LCD Console
Rack KVM console integrated with an 8 or 16 port VGA KVM switch in a 1U high rack drawer designed for 19" rack cabinets or server racks. The rack LCD consoles include an industrial LCD monitor, a front OSD display, a 104-key keyboard with touchpad, three type user consoles (local / remote / IP), one proprietary cascade KVM port, and a 100/240VAC power input. Designed with enhanced aesthetics, these rack consoles feature a modeled front handle and a one-man installation design that allows you to easily mount the console into a cabinet.
VGA KVM Rack LCD Console
17" / 19" / 20.1" rackmount LCD console drawers with VGA video input, 104-key keyboard with touchpad, 8 or 16 port VGA KVM switch, 1 x local console, and a 1U high rack drawer.
-
![]()

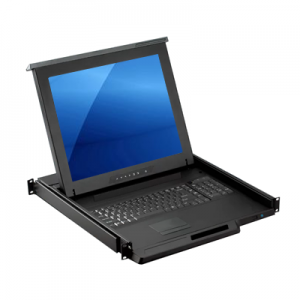

- 1U 17" rack KVM console drawer
- Supports 1280 x 1024 display resolution
- VGA video input
- 104-key keyboard with 2-button touchpad - USB
- 8-port VGA KVM switch, option for 16 port
- 1 x local console, option for remote of IP console
- Option for SUN Micro or MAC keyboard layout
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- 1U high 22.8" (580mm) depth rackmount drawer
-
![]()
- 1U 19" rack KVM console drawer
- Supports 1280 x 1024 display resolution
- VGA video input
- 104-key keyboard with 2-button touchpad - USB
- 8-port VGA KVM switch, option for 16 port
- 1 x local console, option for remote of IP console
- Option for SUN Micro or MAC keyboard layout
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- 1U high 24.4" (620mm) depth rackmount drawer
-
![]()

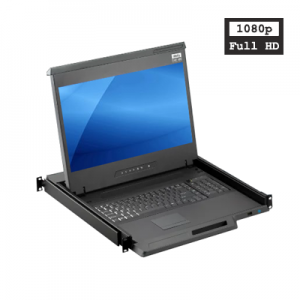

- 1U 17.3" FHD rack KVM console drawer
- Supports 1920 x 1080 display resolution
- VGA video input
- 104-key keyboard with 2-button touchpad - USB
- 8-port VGA KVM switch, option for 16 port
- 1 x local console, option for remote of IP console
- Option for SUN Micro or MAC keyboard layout
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- 1U high 22.8" (580mm) depth rackmount drawer
-
![]()

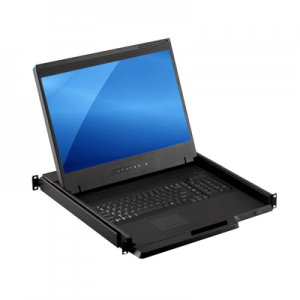

- 1U 19" widescreen rack KVM console drawer
- Supports 1440 x 900 display resolution
- VGA video input
- 104-key keyboard with 2-button touchpad - USB
- 8-port VGA KVM switch, option for 16 port
- 1 x local console, option for remote of IP console
- Option for SUN Micro or MAC keyboard layout
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- 1U high 22.8" (580mm) depth rackmount drawer
-
![]()

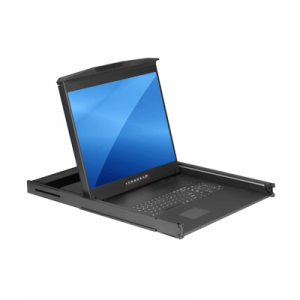

- 1U 20.1" rack KVM console drawer
- Supports 1600 x 1200 display resolution
- VGA video input
- 104-key keyboard with 2-button touchpad - USB
- 8-port VGA KVM switch, option for 16 port
- 1 x local console, option for remote of IP console
- Option for SUN Micro or MAC keyboard layout
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- 1U high 25.6" (650mm) depth rackmount drawer
-
![]()

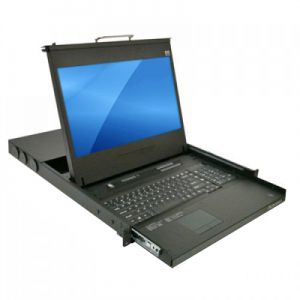

- 1U 17" rack KVM console drawer
- Supports 1280 x 1024 display resolution
- VGA video input
- 104-key keyboard with a wired mini USB optical mouse
- 8-port VGA KVM switch, option for 16 port
- 1 x local console, option for remote of IP console
- Molded front handle and two point lock
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- 1U high 25.6" (650mm) depth rackmount drawer
-
![]()
- 1U 17" high brightness rack KVM console drawer
- Supports 1280 x 1024 display resolution
- VGA video input
- 104-key keyboard with 2-button touchpad - USB
- 8-port VGA KVM switch, option for 16 port
- 1 x local console, option for remote of IP console
- Option for SUN Micro or MAC keyboard layout
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- 1U high 22.8" (580mm) depth rackmount drawer
-
![]()
- 1U 19" high brightness rack KVM console drawer
- Supports 1280 x 1024 display resolution
- VGA video input
- 104-key keyboard with 2-button touchpad - USB
- 8-port VGA KVM switch, option for 16 port
- 1 x local console, option for remote of IP console
- Option for SUN Micro or MAC keyboard layout
- Auto-sensing 100 to 240VAC, 50 / 60Hz power input
- 1U high 24.4" (620mm) depth rackmount drawer
