The FES6128 is a compact military-grade PC featuring the Intel Alder Lake Core i7-12700TE CPU with 64GB memory, 2.5 SSD 2TB, and the NVIDIA RTX A2000 GDDR6 8GB graphic card. The embedded computer features 2 x USB2.0, 1 x RS232, 1 x LAN, 1 x HDMI, 1 x RJ45 GbE LAN, 2 x USB3.0 ports.
FES6128
- Fully IP67 rated fanless embedded microbox
- Intel Alder Lake Core i7-12700TE
- 64GB RAM, 2.5” SSD 2TB
- 4 x USB, 1 x RS232, 1 x LAN, 1 x HDMI, 1 x RJ45 GbE LAN
- NVIDIA RTX A2000 GDDR6 8GB graphic card
- Extended working temperature range from -10°C to 60°C
- MIL-STD-810G environmental compliance
- 19~24V DC power input (MIL Compliance)
Availability:
In stock
SKU
FES6128
Compact military-grade PC with the Intel Alder Lake Core i7-12700TE CPU, NVIDIA RTX A2000 GDDR6 8GB graphic card, and 4 x USB, 1 x RS232, 1 x LAN, 1 x HDMI, 1 x RJ45 GbE LAN.
- Construction
- Heavy-duty fully IP67-rated enclosure
- Embedded board
- CPU Type: Intel Alder lake Core i7 1265UE
Memory: 64GB, 2.5” SSD 2TB
Ethernet: GbE LAN (Intel Chipsets)
- Graphics Card
- NVIDIA RTX A2000 GDDR6 8GB, option for NVIDIA T1000
- Storage
- 1 x 2.5" removable storage bay
- On/Off Switch
- 1 x rugged toggle switch with cover
- J1 Power Connector
- 19~24V DC Input w/Emi filter
- J2 Signal
- 2 x USB2.0
1 x RS232
1 x LAN
1 x HDMI
- J3 Connector
- 1 x RJ45 GbE LAN
- J4 / J5 Connector
- 2 x USB 3.0
- Power Supply
- Input:19~24V DC power input
Wattage: Max. up to 250 Watt
CMOS battery removable on service window
- Weight
- 17.64lb / 8 kg

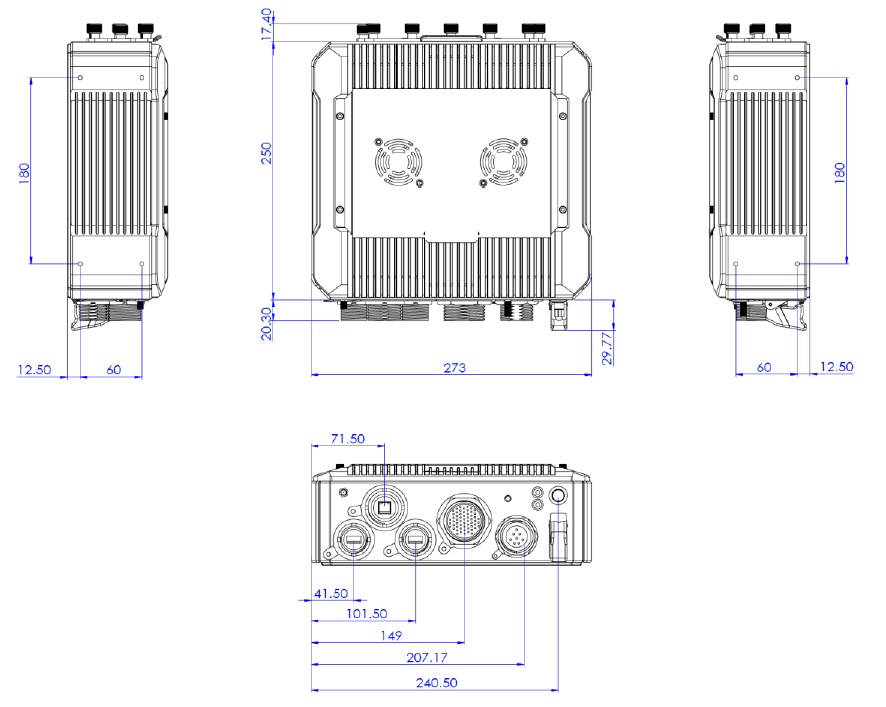

- Dimension
- 11.32"(W) x 10.75"(D) x 4.13"(H)
- Environmental
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -10°C to 60°C (14°F to 140°F)
Operating Humidity: 5~95%, non-condensing
IP Grade: Full IP67 with IP67 fan type
MIl-STD: MIL-STD-810G compliance
- Operating System
- Windows 11 Pro
FES8127:
Compact military-grade PC with Intel Alder Lake Core i7-12700TE, 64GB RAM, 2.5” SSD 2TB, 4 x USB, 1 x RS232, 1 x LAN, 1 x HDMI, 1 x RJ45 GbE LAN, NVIDIA RTX A2000 GDDR6 8GB graphic card, 19~24V DC Input w/Emi filter, and Windows 11 Pro OS.
Document
Description
Download Link
FES6128-SP.pdfSpec Sheet
