IP67 rated fanless waterproof embedded PC integrated with the 9th Gen. Intel Core i7-9850HL processor for high performance and reliability. The embedded system features DDR4 memory up to 64GB, 1 x 2.5" SSD drive bay in a hot-swappable array, and various I/O connections such as USB 2.0, RS232/422/485, GbE LAN, and HDMI. Option is available for an 8-bit GPIO or 2 x 2 Dual Band WiFi.
IP67 Waterproof Rugged Embedded Computer w/ Intel 6th Gen. Core i7 CPU & MIL-Spec - FES9280

FES9280

Rugged Embedded Computer with Intel Core Series and MIL-STD-810G / 461F compliance - FES9282

FES9282

FES9281

  • Fully IP67 rated fanless embedded computer
  • Intel 9th Gen. Core i7-9850HL CPU, Up to 4.1GHz
  • Onboard DDR4 2400MHz, Max. 64GB memory
  • 3 x USB 2.0, 1 x RS-232/422/485, 1 x GbE LAN
  • 1 x HDMI port and 1 x GPIO port
  • Extended working temperature range from -20°C to 60°C
  • MIL-STD-810G in temperature, vibration, and shock
  • MIL-STD-461F EMC compliance
  • 9 to 36V DC power input (D38999 compliant)
Availability: In stock
SKU
FES9281
Fanless military compact PC powered by the 9th generation Coffee Lake Core i7-9850HL 4.1GHz CPU with 3 x USB, -20° to 60°C extended working temperature, 9 to 36V DC power input, and a fully IP67 rated chassis that meets MIL-STD testing standards.
Material
Heavy-duty full IP67 rugged enclosure
Water & dust proof, anti-corrosion housing
Embedded Board
CPU: 9th Generation Intel Core i7-9850HL Max. 4.1GHz
Memory: DDR4 2400MHz, Max. 64GB
Chipset: Intel Mobile QM370 Chipsets
Drive Bay: 1 x 2.5" SSD in hot swappable array
Ethernet
Intel i210 Ethernet Controller
Intel i219 Ethernet Connection
Front Panel Control
1 x Power LED, 1 x HDD LED
1 x Power on/off toggle switch
GPIO (Option)
8-bit GPIO
WLAN (Option)
M.2 IEEE 802.11 ac 2 x 2 Dual Band
I/O Port (Standard)
3 x USB 2.0
1 x RS232/422/485
1 x GbE LAN
1 x HDMI port
1 x GPIO port
1 x DC power on/off
Power Supply
9~36VDC input (MIL-STD Compliant)
Weight
11.02 lb / 5 kg

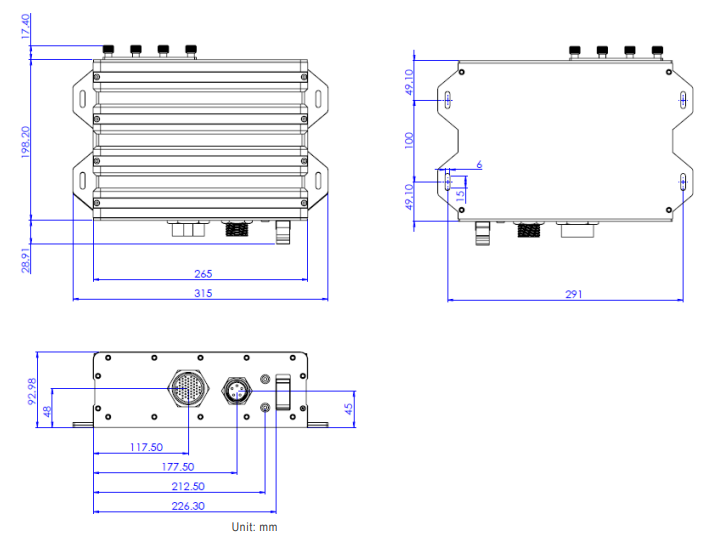

Dimension
10.43"(W) x 7.80"(D) x 3.66"(H)
Environmental
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Storage Temperature: -40°C to 80°C (-40°F to 176°F)
Relative Humidity: 5~95%, non-condensing
Altitude: 16,000 ft – Operating / 40,000 ft – Non-operating
Reliability: MIL-STD-810G / MIL-STD-461F EMC compliance
IP Grade
Full-IP67

FES9281:
Fully IP67 rated fanless embedded system, Intel 9th Generation Core i7-9850HL CPU, DDR4 memory, 1x 2.5" SSD, 3 x USB 2.0, 1 x GbE LAN, 1 x HDMI, 9 to 36V DC power input, -20°C to 60°C wide range working temperature, MIL-STD-810G compliance.

Document
Description
Download Link
file iconFES9281-SP(V1-2).pdf
Spec Sheet
