Rugged fanless embedded PC features the NVIDIA RTX 3000 graphic card for accelerated edge computing and maximized performance. The embedded system supports the Intel 9th Gen. Core i7-9700TE CPU with Q370 Chipsets, 1 x 2.5" removable SSD, 2 x USB 3.0 ports, 1 x 10 GbE LAN, and 1 x VGA port. Designed for harsh environments, FES9281-CU02 is able to withstand extreme temperature ranges (-10°C to 40°C without fan) and has a fully IP67 rated water and dust proof enclosure.
Rugged Embedded Computer with Intel Core Series and MIL-STD-810G / 461F compliance - FES9282

FES9282

FES8127 Fully IP67 rated fanless embedded microbox

FES8127

FES9281-CU02

  • Fully IP67 rated fanless embedded microbox
  • Intel 9th Gen. Core i7-9700TE 3.8GHz CPU, Up to 3.8GHz
  • NVIDIA RTX 3000 with 6GB DDR6 memory
  • 2 x USB 2.0, 1 x RS-232/422/485, 1 x GbE LAN, 1 x HDMI output
  • 2 x USB 3.0 Type A + 2 x 10G LAN via D38999 connectors
  • Option for 1 x GPS with MTK support
  • MIL-STD-810G & MIL-STD-461F EMC compliance
  • Extended working temperature range from -10°C to 40°C
  • 9 to 36V DC power input
Availability: In stock
SKU
FES9281-CU02

Fanless military-grade compact PC with the 9th Gen. Core i7-9700TE CPU, DDR4 memory, NVIDIA RTX 3000 graphics card, 1 x HDMI output, and an IP67 rated chassis.

Material
Full IP67 rated rugged enclosure
Embedded Board
CPU: 9th Gen. Core i7 9700TE, Up to 3.8GHz
Chipset: Intel Mobile Q370 Chipsets
Memory: DDR4 2600/2666 MHz, Max. 64GB
Storage: 1 x mSATA 512GB SSD & 1 x 2.5" SDD in hot swappable array
Ethernet: 2 x 10 GbE LAN
BIOS: AMI EFI 256Mbit Flash
Graphic: NVIDIA RTX 3000 with 6GB DDR6 memory
Watchdog: Programmable 1~255 sec.
Front Panel Control
LED indicator for power and HDD activity
Rugged toggle ON/OFF switch with cover
GPS Module (Option)
1 x GPS with MTK support
I/O Interface (D38999)
2 x USB 2.0
1 x RS232/422/485
1 x GbE LAN
1 x HDMI output
2 x MIL. D38999 USB 3.0 (Type A)
2 x MIL. D38999 10G LAN (RJ45)
1 x DC 9~36V input
Power Supply
Power Input: 9 to 36V DC input
Power Consumption: Max. up to 180 Watt
Weight
7.5 ~ 8 kg / 16.5 ~ 17.6 lb (estimate)

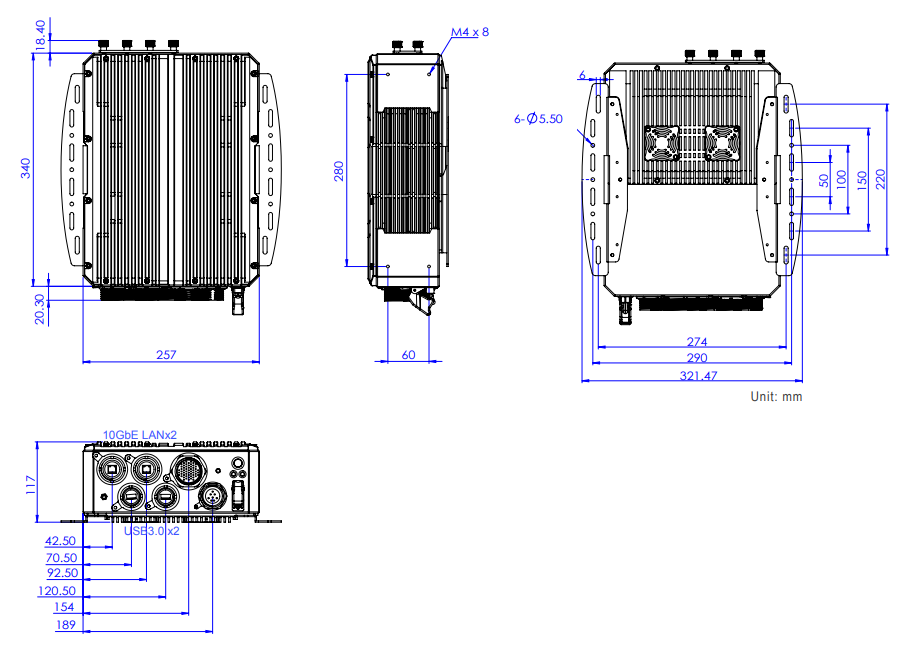

Dimension
11.81"(W) x 5.51"(D) x 10.24"(H)
Environmental
Operating Temperature: -10°C to 40°C without fan
Option for wide range working temperature of -10°C to 50°C with fan
Storage Temperature: -30°C to 70°C
Relative Humidity: 5~95%, non-condensing
Reliability: MIL-STD-810G compliance
EMI: MIL-STD-461F compliance
IP Grade
Full-IP67

FES9281-CU02:
Fanless military compact embedded system, full IP67 rated rugged enclosure, 9th gen. Intel Core i7-9700TE CPU, DDR4 memory, 1 x SSD 512GB, 2 x 10GB LAN, 1 x HDMI output, 2 x USB 2.0 ports, 9 to 36V DC power input, -10°C to 40°C wide range working temperature without fan.

Document
Description
Download Link
file iconFES9281-CU02-SP.pdf
Spec Sheet
file iconFES9281-CU02-PIN.pdf
PIN Assignments
