Rackmount console drawers are cost-effective and space-saving rack units that are available in single port, 8 port, 16 port, or 32 port DVI KVM switch. A KVM switch is a hardware device that allows a user to control multiple computers from a single keyboard, video monitor, and mouse. Since KVMs can offer different methods of connecting to the computers, its versatility allows it to connect to a monitor, keyboard, and mouse (and audio if provided for) to the console port on the KVM device and the computers to the other ports.

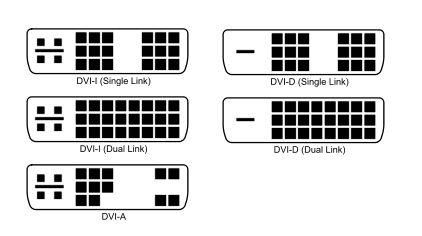

Acnodes provides a video display called a DVI (Digital Video Interface), which is used to connect a video source to a display device, such as a computer monitor through the digital interface. DVI-D is used for direct digital connections between the source video and LCD monitors display. All video cards initially produce a digital video signal, which is converted into analog at the VGA output. The analog signal travels to the monitor and is re-converted to a digital signal. The DVI-D eliminates the analog conversion process and improves the connection between source and display.

Acnodes' line of Rack Consoles with DVI KVM Switch:

KD81712 - Rack console comes with a 17 inch 1280 x 1024 industrial LCD monitor, keyboard with touchpad, 12 port DVI KVM switch, and a 1U high 22.9 inch depth drawer. Option for 12/24/48V DC power, stereo speaker with audio input, and DVI cables.

KDF81712 - Rack KVM console comes with a 17.3 inch full HD LED backlight monitor, keyboard with touchpad (option for trackball), 12 port DVI KVM switch, 6 DVI KVM cables, 1U high and 22.9 inch depth rackmount drawer. Option for stereo speaker with audio input and DVI cables.

KDX81712 - Rack KVM console with a 17.1 inch 1920 x 1200 WUXGA LED LCD panel, keyboard + touchpad (Option for trackball), 12 port DVI KVM switch, 6' DVI KVM cable, and a 1U 22.9 inch depth rackmount monitor drawer. Option for 12 / 24 / 48VDC power, stereo speaker with audio input and DVI cables.

Acnodes Corporation has a wide array of product line configurations. They can customize most commercial and industrial computers to one’s specific needs.  For information, please visit  www.acnodes.com or contact us at [email protected].

About Acnodes Corporation

Acnodes manufactures, designs, and markets industrial computers and display solutions for diverse industries ranging from automation to military.  We have an array of technological innovations in the area of rack mount servers, embedded computers, Panel PC’s and rugged monitors that create simpler and more valuable products to the customers. We work closely with our clients to customize computer products to meet their required projects and challenges. Acnodes strives to explore new technologies to better improve life and work.
