Rackmount LCD console drawer with a 17.3 inch 1920 x 1080 Full HD LED backlight LCD monitor, 104-key keyboard with 2-button touchpad, and a 1U high 22.8 inch depth rackmount drawer. The rack console is integrated with a 12-port DVI-D KVM switch with 1 x local console. Option for DVI-D + USB KVM cables.
1U 17


1U 19



  • 17.3" Full HD rack LCD console drawer
  • Supports 1920 x 1080 native resolution
  • 104-key keyboard with 2-button touchpad - USB
  • Integrated 12-port DVI-D KVM switch
  • 1 x local console
  • Option for 6ft or 15ft DVI-D USB KVM cables
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
  • Option for 12V / 24V / 48V / 125V DC power input
  • 1U high 22.8" (580mm) depth rackmount drawer
Availability: In stock
17.3" 1920 x 1080 FHD rackmount LCD console drawer with a 12-port DVI-D KVM switch, 104-key keyboard with touchpad, and a 1U high 22.8" depth sliding drawer.
Heavy-duty steel
LCD Panel
Size: 17.3"
Native Resolution: 1920 x 1080
Brightness (cd/m²): 300
Contrast Ratio (typ.): 1000: 1
Colors: 16.7 M, 8-bit
Viewing Angle (H/V): 178° x 178°
Response Time (ms): 25
Dot Pitch (mm): 0.1989
Display Area (mm): 381.888H x 214.812V
Surface Treatment: Anti-glare, Hard-coating
Surface Hardness: 3H
Backlight: LED
MTBF (hrs): 15,000
Keyboard & pointing device
104-key keyboard with 2-button touchpad - USB
KVM Port
Number of Ports: 12 x DVI KVM ports
Connector: DVI-D connector + USB 3.0 connector (for keyboard, mouse & audio)
KVM Usage
Advanced user profiles and configurable on- screen display (OSD) & hotkey combination
Multilingual on-screen display menu
Supports eight character password protection
Front Panel Control
Power on/off switch
OSD (on screen display)
1 x bank number LED indicator
12 x KVM ports LED indicators for on-line / Active / Remote
10 x KVM channel membrane buttons
1 x bank membrane button
KVM Cables (Option)
Option for 6ft or 15ft DVI-D + USB KVM cables
Power supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 45W, Standby 34W
Option for 12V / 24V / 48V / 125V DC power input
Black (RAL 9005)
25.5 lb / 11.6 kg

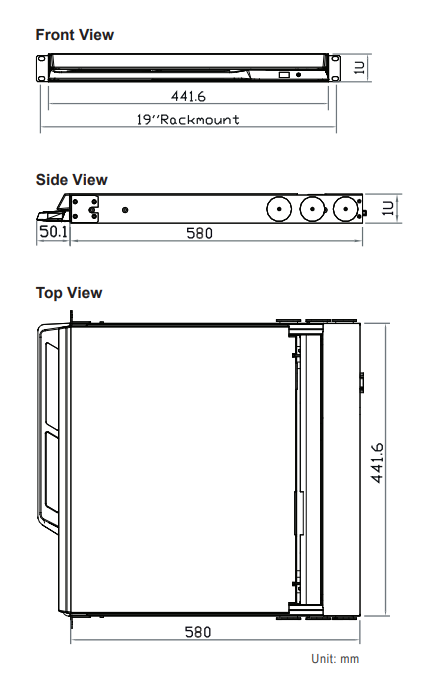

17.4"(W) x 22.8"(D) x 1.73”(H)
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
CE, FCC, RoHS, TAA Compliant

1U 17.3" Full HD rack LCD console drawer, 1920 x 1080 native resolution, 104-key keyboard with touchpad, 12-port DVI-D KVM switch, 100/240VAC power input, 1U high 22.8" depth rackmount drawer, Black color.

Download Link
file iconKDF81712-SP(V1-2).pdf
Spec Sheet
file iconKDF81712-UM(V1-2).pdf
User Manual
