The RMC5255 is a 2U rackmount computer powered by the latest series of Intel processors and a standard micro ATX motherboard. The system features 4 x low profile expansion slots, 8GB memory, 250GB NVMe M.2 SSD, 1 x 5.25" external drive bay, and 2 x 3.5" internal drive bay in a 2U high 15.1" short-depth rack chassis.

Skip to the beginning of the images gallery

RMC6446B

RMC5210A

RMC5255

2U high rackmount computer
15.1 inch short depth rackmount chassis
14th/13th/10th Generation Intel processors
Standard micro ATX motherboard
4 x low profile PCI expansion slots
8GB RAM (Up to 32GB) & 250GB NVMe M.2 SSD
1 x 5.25" external & 2 x 3.5" internal drive bays
Front power ON/OFF switch, LED indicators, 2 x USB ports
380W auto-switch ATX power supply

In stock

SKU

RMC5255

2U rackmount computers with the latest Intel processors, standard micro ATX motherboard, 1 x 5.25" external, and 1 x 3.5" internal drive bay in a 2U high 15.1" depth rack chassis.

Specification

Construction: Heavy-duty steel cold-rolled steel
EIA RS-310C 19" rackmount standard

Standard micro ATX M/B: Size: 9.6" x 9.6" standard micro ATX motherboard
RMC5255-B: 13/14th Gen Intel processors
RMC5255-C: 10th Gen Intel processors / Long Life Cycle M/B (Through Q2 2035)
Memory: 4 x DIMM memory sockets (up to 32GB)
On-board Video, LAN, Audio
SATA hard drive
USB ports

Drive Capacity: 1 x 5.25" external drive bay
1 x 3.5" internal drive bay

Expansion Slot: 4 x low profile PCI slots available
(Depends on the motherboard layout)

Front Panel Controls: Power on/off switch
System reset button
2 x USB 2.0 ports

LED Indicators: LED Indicators for Power & HDD Activity

Cooling Fan: 1 x 80mm (42.5cm) cooling fan

Power Supply: 380W PS/2 single ATX power supply
Option for 500W or 650W ATX power supply

Weight: 20 lb / 9.07 kg

Dimension: 19"(W) x 3.5"(H) x 15.1"(D)

Environmental: Operating Temperature: 0°C to 45°C (32°F to 113°F)
Relative Humidity: 5% to 95%, non-condensing

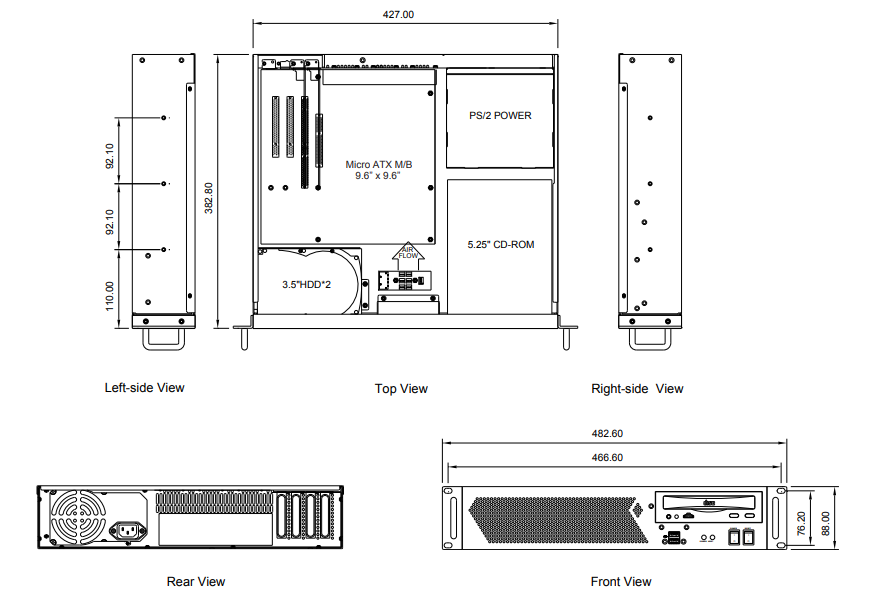

Dimensions

Order Info

RMC5255-B:
2U rackmount computer, 13th/14th Gen processors, standard micro ATX M/B, 8GB memory, 250GB NVMe M.2 SSD, 380W auto-switch ATX power supply, 2U high 15.1-inch short-depth rackmount chassis.

RMC5255-C:
2U rackmount computer, 10th Gen processors, long-life industrial ATX M/B, 8GB memory, 250GB NVMe M.2 SSD, 380W auto-switch ATX power supply, 2U high 15.1-inch short-depth rackmount chassis.

Downloads

Document

Description

Download Link

RMC5255-SP.pdf

Spec Sheet

Configure Now

RMC5255-B

2U high rackmount computer
13/14th generation Intel processors
Standard micro ATX motherboard
4 x low profile PCI expansion slots
8GB RAM (Up to 32GB)
250GB NVMe M.2 SSD
1 x 5.25" open & 1 x 3.5" hidden drive bay
380W auto-switch ATX power supply
15.1 inch short depth chassis

Starting at:
$897.00
RMC5255-C

2U high rackmount computer
10th generation Intel processors
Long-life ATX motherboard
4 x low profile PCI expansion slots
8GB RAM (Up to 32GB)
250GB NVMe M.2 SSD
1 x 5.25" open & 1 x 3.5" hidden drive bay
380W auto-switch ATX power supply
15.1 inch short depth chassis

Starting at:
$992.00

RMC5255-B

$897.00

13/14th Generation CPU

13th Gen. Intel Celeron G6900 (2 Core, 4MB Cache, 3.40 GHz)

13th Gen. Intel Core i3-13100 (4 Core, 12MB Cache, 4.50GHz) + $135.00

13th Gen. Intel Core i5-13400 (10 Core, 20MB Cache, 4.60GHz) + $255.00

13th Gen. Intel Core i5-13500 (14 Core, 24M Cache, 4.80GHz) + $265.00

13th Gen. Intel Core i5-13600K (14 Core, 24MB Cache, 5.10GHz) + $365.00

14th Gen. Intel Core i5 processor 14600K (24M Cache, up to 5.30 GHz) + $379.00

13th Gen. Intel Core i7-13700 (16 Core, 30MB Cache, 5.20GHz) + $440.00

13th Gen. Intel Core i7-13700K (16 Core, 30MB Cache, 5.40GHz) + $460.00

14th Gen. Intel Core i7 processor 14700K (33M Cache, up to 5.60 GHz) + $479.00

13th Gen. Intel Core i9-13900 (24 Core, 36MB Cache, 5.60GHz) + $685.00

13th Gen. Intel Core i9-13900K (24 Core, 36MB Cache, 5.80GHz) + $735.00

14th Gen. Intel Core i9 processor 14900K (36M Cache, up to 6.00 GHz) + $715.00

ATX Motherboard

Z790 PRO RS LGA 1700 G-LAN / HDMI / DP 1.4 / PS/2 / Audio / 8 x USB / 8 x SATA + 4 M.2 with RAID / 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1

Z790 GAMING WIFI7 LGA 1700 G-LAN / HDMI / Audio / 8 x USB / Wi-Fi 7 /4 x SATA + 3 x M.2 with RAID / 1 PCIe 5.0 x16, 3 PCIe 4.0 x16 (x4 supported), 1 PCIe 3.0 x1 + $35.00

Z790 PG Lightning LGA 1700 2.5G-LAN / HDMI / PS/2 / Audio / 8 x USB / 4 x SATA + 4 x M.2 with RAID / 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 3 PCIe 3.0 x1 + $75.00

Memory

8GB memory x 1

16GB memory x 1 + $65.00

32GB memory x 1 + $165.00

Storage Device

250GB NVMe M.2 SSD x 1

500GB NVMe M.2 SSD x 1 + $15.00

1.0TB NVMe M.2 SSD x 1 + $80.00

250GB SATA 2.5" SSD x 1 + $20.00

500GB SATA 2.5" SSD x 1 + $38.00

1.0TB SATA 2.5" SSD x 1 + $72.00

2.0TB SATA 2.5" SSD x 1 + $205.00

1.0TB SATA 3.5" HDD x 1 + $12.00

2.0TB SATA 3.5" HDD x 1 + $78.00

Additional Storage Device

N/A

250GB NVMe M.2 SSD x 1 + $85.00

500GB NVMe M.2 SSD x 1 + $98.00

1.0TB NVMe M.2 SSD x 1 + $165.00

250GB SATA 2.5" SSD x 1 + $95.00

500GB SATA 2.5" SSD x 1 + $108.00

1.0TB SATA 2.5" SSD x 1 + $155.00

2.0TB SATA 2.5" SSD x 1 + $285.00

1.0TB SATA 3.5" HDD x 1 + $65.00

2.0TB SATA 3.5" HDD x 1 + $85.00

Removable Drive Bay / Optical Drive (In 1 x 5.25" Drive Bay)

N/A

4 x 2.5" Removable SATA HDD Full Metal (in 1 x 5.25" Drive Bay) + $200.00

4 x 2.5" Removable SATA HDD Full Metal with Keylock (in 1 x 5.25" Drive Bay) + $282.00

6 x 2.5" Removable SATA HDD Full Metal (in 1 x 5.25" Drive Bay) + $325.00

1 x 5.25" CD/DVD Burner + $30.00

1 x 5.25" Blu-Ray 16x Drive + $140.00

I/O Card

N/A

2 Port DB9 Serial PCI-Express 2.0 x 1 Card - RS-232/485 + $62.00

4-Port USB 3.00 PCIe - 4 x 9-pin Type A Female USB 3.0 USB External + $30.00

Ethernet Card

N/A

PCIe x 1- 10/100/1000Mbps Single Port Network Adapter - Full Height or Low Profile + $75.00

Graphics Card

N/A

GeForce GT 1030 2GB DDR5 Graphics Card + $200.00

GeForce GTX 1050 TI 4GT LP Graphics Card + $350.00

GeForce GTX 1650 4GB GDDR6 Graphics Card (Includes 2x HDMI ports, 1x DP, 1x DVI, 4x Input) + $365.00

Power Supply

380W ATX power supply

500W ATX power supply + $65.00

650W ATX power supply + $85.00

Operating System

N/A

Windows 11 Professional 64-Bit (TPM 2.0 Requited) + $199.00

Rack Console

N/A

1U 17" 1280 x 1024 LCD w/ keyboard & touchpad - KD8172 + $925.00

1U 17.3" 1920 x 1080 FHD LCD w/ keyboard & touchpad - KDF8170 + $1,169.00

1U 19" 1280 x 1024 LCD w/ keyboard & touchpad - KD8190 + $1,023.00

1U 19" 1440 x 900 widescreen LCD w/ keyboard & touchpad - KDW8190 + $993.00

Slide Rail

N/A

20" slide rail (20~37" adjustable length) + $55.00

Warranty

1-Year Depot Warranty

RMC5255-C

$992.00

10th Generation CPU

Intel Celeron G5905 (2 Core, 4M Cache, 3.50 GHz)

Intel Pentium Gold G6400 Processor (2 Core, 4M Cache, 4.00 GHz) + $65.00

10th Gen. Intel Core i3-10100 (4 Core, 6M Cache, 3.60 GHz) + $55.00

10th Gen. Intel Core i5-10400 (12M Cache, 2.90 GHz) + $220.00

10th Gen. Intel Core i5-10500 (12M Cache, 3.10 GHz) + $235.00

10th Gen. Intel Core i7-10700 (8 Core, 16M Cache, 2.90 GHz) + $520.00

10th Gen. Intel Core i9-10900 (10 Core, 20MB Cache, 2.8GHz) + $550.00

ATX Motherboard (Long Life Production Cycle)

MM02-20-ATX 10th. Gen Industrial M/B 4 x RJ45 LAN / 2 x HDMI 1.4 / 2 x COM (RS-232) / 4 x USB 3.2 Gen 2 / 1 x PCIe 3.0 x16 + 1 x PCIe 3.0 x8 + 1 x PCIe 3.0 x4 + 1 x PCIe 3.0 x1

MM02-10-ATX 10th. Gen Industrial M/B 4 x RJ45 LAN / 2 x HDMI 1.4 / 2 x COM (RS-232/422/485) / 4 x USB 3.2 Gen 2 / 1 x PCIe 3.0 x16 + 1 x PCIe 3.0 x8 + 1 x PCIe 3.0 x4 + 1 x PCIe 3.0 x1 + $150.00

Memory

8GB memory x 1

16GB memory x 1 + $65.00

32GB memory x 1 + $165.00

Storage Device

250GB NVMe M.2 SSD x 1

500GB NVMe M.2 SSD x 1 + $15.00

1.0TB NVMe M.2 SSD x 1 + $80.00

250GB SATA 2.5" SSD x 1 + $20.00

500GB SATA 2.5" SSD x 1 + $38.00

1.0TB SATA 2.5" SSD x 1 + $72.00

2.0TB SATA 2.5" SSD x 1 + $205.00

1.0TB SATA 3.5" HDD x 1 + $12.00

2.0TB SATA 3.5" HDD x 1 + $78.00

Additional Storage Device

N/A

250GB NVMe M.2 SSD x 1 + $85.00

500GB NVMe M.2 SSD x 1 + $98.00

1.0TB NVMe M.2 SSD x 1 + $165.00

250GB SATA 2.5" SSD x 1 + $95.00

500GB SATA 2.5" SSD x 1 + $108.00

1.0TB SATA 2.5" SSD x 1 + $155.00

2.0TB SATA 2.5" SSD x 1 + $285.00

1.0TB SATA 3.5" HDD x 1 + $65.00

2.0TB SATA 3.5" HDD x 1 + $85.00

Removable Drive Bay / Optical Drive (In 1 x 5.25" Drive Bay)

N/A

4 x 2.5" Removable SATA HDD Full Metal (in 1 x 5.25" Drive Bay) + $200.00

4 x 2.5" Removable SATA HDD Full Metal with Keylock (in 1 x 5.25" Drive Bay) + $282.00

6 x 2.5" Removable SATA HDD Full Metal (in 1 x 5.25" Drive Bay) + $325.00

1 x 5.25" CD/DVD Burner + $30.00

1 x 5.25" Blu-Ray 16x Drive + $140.00

I/O Card

N/A

2 Port DB9 Serial PCI-Express 2.0 x 1 Card - RS-232/485 + $62.00

4-Port USB 3.00 PCIe - 4 x 9-pin Type A Female USB 3.0 USB External + $30.00

Ethernet Card

N/A

PCIe x 1- 10/100/1000Mbps Single Port Network Adapter - Full Height or Low Profile + $75.00

Graphics Card

N/A

GeForce GT 1030 2GB DDR5 Graphics Card + $200.00

GeForce GTX 1050 TI 4GT LP Graphics Card + $350.00

GeForce GTX 1650 4GB GDDR6 Graphics Card (Includes 2x HDMI ports, 1x DP, 1x DVI, 4x Input) + $365.00

Power Supply

380W ATX power supply

500W ATX power supply + $65.00

650W ATX power supply + $85.00

Operating System

N/A

Windows 11 Professional 64-Bit (TPM 2.0 Requited) + $199.00

Rack Console

N/A

1U 17" 1280 x 1024 LCD w/ keyboard & touchpad - KD8172 + $925.00

1U 17.3" 1920 x 1080 FHD LCD w/ keyboard & touchpad - KDF8170 + $1,169.00

1U 19" 1280 x 1024 LCD w/ keyboard & touchpad - KD8190 + $1,023.00

1U 19" 1440 x 900 widescreen LCD w/ keyboard & touchpad - KDW8190 + $993.00

Slide Rail

N/A

20" slide rail (20~37" adjustable length) + $55.00

Warranty

1-Year Depot Warranty

Loading...Please Wait

PRODUCT DESCRIPTION
RMC5255 is designed with a heavy-duty cold-rolled frame with two front USB ports and LED indicators for power and HDD activity. The front panel controls include a power on/off switch and a computer system reset button. The device has one 3.5" hidden drive bay and one 5.25" open drive bay. The standard configuration for RMC5255 includes an Intel processor, a standard micro ATX motherboard, 8GB of memory, and a 250GB NVMe M.2 SSD. Other configurations are available. The front mounting bracket comes with standard 19" rackmount mounting holes for a 19" rack cabinet. There is also an option for a 20" slide rail. The standard micro ATX motherboard supports a 10th/11th/13th generation Intel processor and onboard video, LAN, and Audio. The system provides four DIMM sockets (up to 16GB memory) and 4 x low profile expansion slots. RMC5255 is capable of performing challenging applications while decreasing the user's downtime and IT interruptions.
