The RMC5210A is a 2U rackmount computer powered by the latest series of Intel processors with a standard ATX motherboard. The system features 1 x 5.25" external drive bay, 3 x 3.5" internal drive bays, and 7 x low profile expansion slots in a 2U high 14.1" short-depth EMI shielded rack chassis. Designed for small business applications to entry-level server applications, this 2U rackmount computer is fully customizable and offers various options including additional storage space, removable drive bays, add-on cards, graphic cards, and Windows OS.

Skip to the beginning of the images gallery

RMC5255

RMC8351

RMC5210A

2U high rackmount computer
14.1" short-depth rackmount chassis
14th/13th/10th Generation Intel processors
Standard ATX motherboard
7 x low profile PCI expansion slots
8GB RAM (Up to 32GB) & 250GB NVMe M.2 SSD
1 x 5.25" external & 3 x 3.5" internal drive bays
Front power ON/OFF switch, LED indicators, 2 x USB ports
350W 1U single ATX power supply

In stock

SKU

RMC5210A

2U rackmount computer with the latest Intel processors, standard ATX M/B, 7 x expansion slots, and 4 x drive bays in a 2U high 14.1" depth rack chassis.

Specification

Construction: Heavy-duty steel cold-rolled steel
EIA RS-310C 19" rackmount standard

Standard ATX M/B: Size: 12" x 9.6" standard ATX motherboard
Processor:
RMC5210A-A: 10th/11th Gen Intel Processors
RMC5210A-B: 14th/13th Gen Intel Processors
RMC5210A-C: 10th Gen Intel Processors / Long Life Cycle M/B (Q2 2030)
Memory: 4 x DIMM memory socket (up to 32GB memory)
On-board Video, LAN, Audio
SATA hard drive
USB ports

Drive Capacity: 1 x 5.25" external drive bay
3 x 3.5" internal drive bays

Expansion Slot: 7 x low profile PCI slots

Front Panel Controls: Power ON/OFF Switch
System Reset Switch
2 x USB ports

LED Indicators: LED Indicators for Power ON/OFF, LAN, HDD Activity

Cooling Fan: 1 x (80mm = 42.5CFM ea.)
2 x (40x20mm = 7CFM ea.) heavy duty ball bearing fans

Power Supply: 350W 1U single ATX power supply

Color: Black

Weight: 25 lb / 11.34 kg

Dimension: 19"(W) x 3.5"(H) x 14.1"(D)

Environmental: Operating Temperature: 0°C to 40°C (32°F to 104°F)
Relative Humidity: 5% to 95%, non-condensing

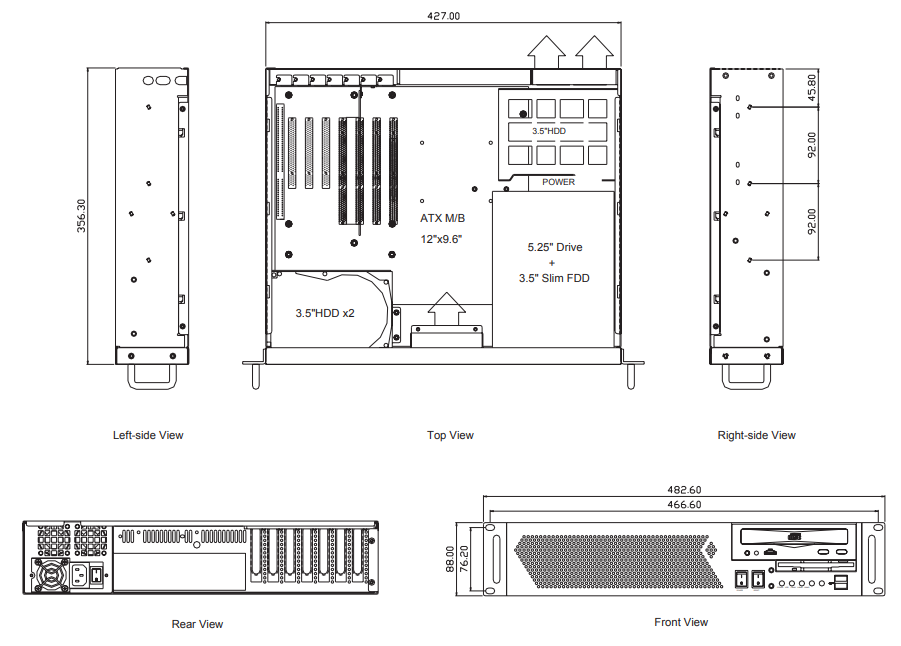

Dimensions

Order Info

RMC5210A-A:
2U rackmount computer, Intel 10th/11th Gen processors, standard ATX M/B, 8GB memory, 250GB NVMe M.2 SSD, 350W 1U single ATX power supply, 14.1 inch short-depth rackmount chassis.

RMC5210A-B:
2U rackmount computer, Intel 14th/13th Gen processors, standard ATX M/B, 8GB memory, 250GB NVMe M.2 SSD, 350W 1U single ATX power supply, 14.1 inch short-depth rackmount chassis.

RMC5210A-C:
2U rackmount computer, Intel 10th Gen processors, long life industrial ATX M/B, 8GB memory, 250GB NVMe M.2 SSD, 350W 1U single ATX power supply, 14.1 inch short-depth rackmount chassis.

Downloads

Document

Description

Download Link

RMC5210A-SP.pdf

Spec Sheet

Configure Now

PRODUCT DESCRIPTION
RMC5210A is a rugged 2U chassis constructed with a heavy-duty cold-rolled steel frame and flat cover plate. The front panel comes with 2 x USB ports and LED indicators for power / HDD / LAN and power on/off switch and system reset button. The cooling system has an 80mm and two 40mm heavy-duty ball bearing fans that provide a total of 56 CFM inside the housing. The system temperature operates from 0°C to 40°C (32°F to 104°F). The rackmount chassis comes with 1 x 5.25-inch open drive bay and 3 x 3.5 inch hidden hard drive bays. The standard configuration for RMC5210A includes the 10th generation CPU, standard ATX motherboard, 8GB memory, and 1 TB 3.5" SATA hard drive. Other configurations are available. The front mounting bracket comes with standard 19-inch rack mounting holes for a standard 19-inch rackmount cabinet.
