Rackmount computer powered by the 7th generation Intel Core i processor with an industrial-grade single board computer (SBC) supporting a 14-slot PICMG 1.3 backplane and 3 x hard drive bays. The 4U rackmount computer features a metal front door with a washable air filter & lock, 1 x 120mm ball bearing fan, and a standard PS/2 power supply in a 4U high 20.1 inch depth EMI-shielded chassis designed for industrial applications.
Loading...
4U 16.1

RMC8404

RMC6446B

  • 4U high rackmount computer
  • 20.1" short-depth rackmount chassis
  • 7th Generation Intel processors
  • Single board computer PICMG 1.3
  • 14 x PCI/ PCIe / SBC slots backplane
  • 3 x 5.25" & 1 x 3.5" external drive bay
  • Two front doors with keylock & thumbscrew
  • 400W auto-switch ATX power supply
$1,186.00
Availability: In stock
SKU
RMC6446B
Email

4U rackmount computer with the 7th generation Core i processor, single-board computer (SBC) with PCIMG 1.3, SATA hard drive, and a 400W ATX power supply.

Construction
Heavy-duty cold-rolled steel
Inside: zinc-plated with bright chromate
Outside: texture-coated
Standard ATX M/B
Size: Full-size single board computer
Processor: Core i processor
Memory: 2 x memory socket (up to 32GB memory)
Dual 10/100/1000BT Ethernet LAN ports
1 x VGA (onboard) & 1 x DVI (occupies one slot) port
6 x SATA connectors
2 x RS-232, 4 x USB ports
Device
3 x 5.25" open drive bay
1 x 3.5" open drive bay
1 x 3.5" hidden drive bay
Backplane
14 slot Backplane PICMG 1.3
A: 1 x PICMG 1.3 SBC, 7 x PCI, 1 x PCIe x16. 1 PCIe x1
B: 1 x PICMG 1.3 SBC, 4 x PCI, 1 x PCIe x16, 4 x PCIe x1, 4 x ISA
C: 1 x PICMG 1.3 SBC, 7 x PCI, 1 x PCIe x16, 5 x PCIe x4
Front Panel Controls
Power on/off switch
System reset button
Front Security Door
Security door with key-locker
Cooling Fan
1 x 120mm ball bearing fan
Air Filter
Removable and washable
Power Supply
PS/2 type 400W industrial level
Auto-switching power supply for 85V~264V AC input
Color
Black
Weight
40 lb / 18.14 kg

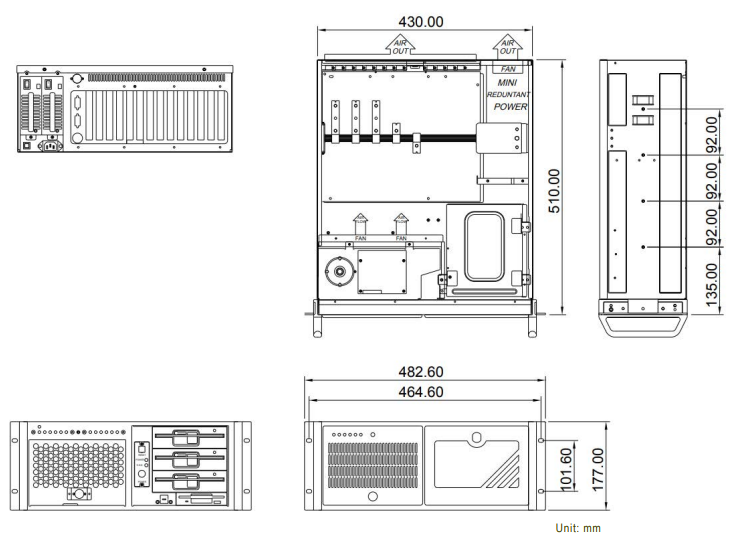

Dimension
19"(W) x 6.97"(H) x 20.1"(D)
Environmental
Operating Temperature: 0°C to 50°C
Humidity: 5~95%, non-condensing

RMC6446B:
Rackmount computer with the 7th generation Core i processor, PCIMG 1.3 backplane, 4GB memory, 1TB 3.5" SATA hard drive, and DVD drive in a 4U 20.1 inch short-depth rackmount chassis.

Document
Description
Download Link
file iconRMC6446B-SP(V1-2).pdf
Spec Sheet
  • RMC6446B
    4U rackmount computer
    7th generation Core i processor
    SBC with PICMG 1.3 backplane
    4GB memory, max. 32GB
    1TB 3.5" SATA hard drive
    3 x 5.25" & 1 x 3.5" open bay
    14 x PCI / PCI-Express expansion slots
    400W PS/2 type ATX power supply
    20.1 inch short depth rackmount chassis
    Starting at:
    $1,186.00
RMC6446B
$1,186.00
PRODUCT DESCRIPTION
4U high chassis is made of heavy-duty cold-rolled steel. It has a shatter-resistant glass and a front lockable door to protect drives. Front panel controls include an on/off switch, one PS/2, two USB ports and LEDs to monitor power and primary hard drive activity. The front also has vents for the 120mm (78CFM) filtered-intake cooling fans. Filters are removable and washable. The rear has 14 slot openings and a removable I/O plate. The chassis comes with three open 5.25" drive bay and one open and one hidden 3.5" drive bay. Standard configuration includes a DVD-RW and a SATA hard drive. Other configurations are available. It comes with a PICMG 1.0 standard single board computer with onboard radio, video, Dual 10/100/1000BT ethernet, and SATA RAID controller. Standard I/Os include 1 x PS/2 (Y cable provided for keyboard and mouse), 2 x serial, 1 x parallel, 4 x USB 2.0, 2 x RJ-45, 15-pin VGA, and line-in, speaker-out, and microphone jacks. Standard configurations include Dual-Core processor and 1GB memory. Other configurations are available. The standard 14-slot passive backplane includes 4 PCI, 8 ISA, and 2 SBC slots. Option for 7 PCI, 5 ISA, 2 SBC / 12 PCI, 2 SBC backplane slot mixes are available. It is powered by a standard PS/2 size 300W ATX. Option for 440W, 530W, and mini-redundant power supply is available. It also comes with standard 19-inch rackmount mounting holes to allow front mounting to any standard 19-inch rack. Optional system slides allow rear mounting as well to racks from 20 to 26 inches in depth.
