Panel mount monitor comes with a 10.1 inch 1280 x 800 350-nit industrial LCD panel, P-Cap multi touch screen, VGA video input, and an IP66 rated anti-corrosion stainless steel housing. Option for a high brightness display, DVI / HDMI video input, optical bonding, and DC power input.
21.5

PMN80215

12.1

PMN80120

PMN80100

  • Anti-corrosion stainless steel housing
  • Full IP66 rated rugged enclosure
  • 10.1 inch 1280 x 800 350-nit LCD monitor
  • Option for 1000-nit high brightness display
  • VGA video input, option for DVI / HDMI
  • P-cap multi-touch screen with USB
  • Option for optical bonding and panel mount
  • 12V DC power input
$895.00
Availability: In stock
SKU
PMN80100
10.1 inch 1280 x 800 LCD panel mount monitor with a fully IP66 rated anti-corrosion stainless steel housing, VGA video input, P-cap multi-touch screen, and DC power input.
Material
Stainless Steel SUS316
Anti-corrosion stainless steel housing
LCD Panel
Size: 10.1 inch
Resolution: 1280 x 800
Brightness (cd/m²): 350
Contrast Ratio (typ.): 800:1
Viewing Angle (H/V): 170° x 170°
Active Area (mm): 200.416(H) x 129.15(V)
Colors: 16.7M
Option for 1000-nit high brightness display
Option for optical bonding
Video Input
VGA video input
Option for DVI or HDMI
Touch Screen
P-cap multi touch screen monitor - USB
OSD
OSD Input: 5-key OSD buttons
OSD Function: Contrast, Color, Position, Auto-adjustment, and Factory Settings
Power Supply
1 x 12V DC input (w/ external AC/DC adapter)
Power Consumption: 15W (typ.)
Power Management: VESA DPMS compliant
Connectors
1 x VGA (M12 connector)
1 x USB for touch screen (M12 connector)
1 x 12V DC power input (M12 connector)

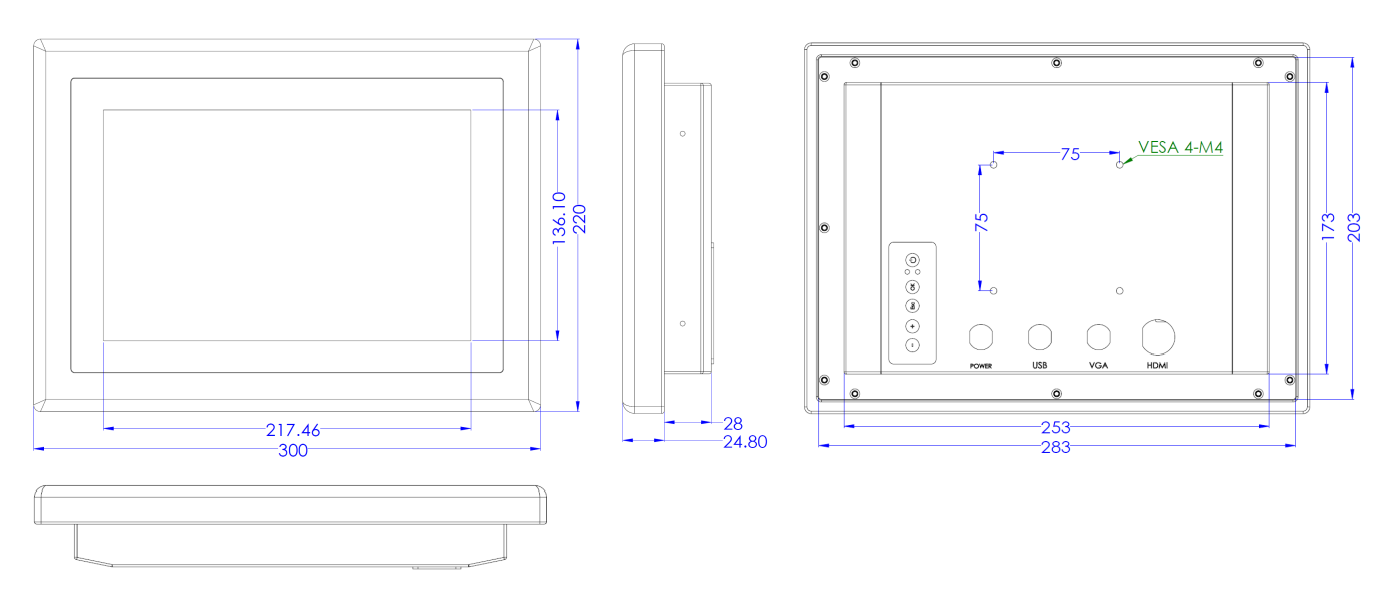

Dimension
11.81”(W) x 8.66”(D) x 2.07”(H)
Mounting
VESA mount (75mm)
Option for panel mount
Environmental
Operating Temperature: 0°C to 50°C
Storage Temperature: -30°C to 70°C
Relative Humidity: 30-90%, non-condensing
IP Protection
Full IP66 rated protection

PMN80100:
10.1 inch 1280 x 800 350-nit brightness LCD panel, full IP66 rated anti-corrosion stainless steel housing, P-cap multi-touch screen monitor, VGA video input, and DC power input. Option for DVI / HDMI video input, optical bonding, and panel mount.

Document
Description
Download Link
file iconPMN80100-SP.pdf
Spec Sheet
