Panel mount monitor with a 21.5 inch 1920 x 1080 full HD industrial LCD panel, fully IP66 rated anti-corrosion stainless steel housing, P-cap touch screen, 0°C to 60°C wide range working temperature, 110 - 240VAC power input. Option for 1000-nit high brightness display, DVI + HDMI +BNC Video input, 9 - 36V DC power input.
19

PMN80190

10.1

PMN80100

PMN80215

  • Anti-corrosion stainless steel housing
  • Full IP66 rated rugged enclosure
  • 21.5 inch 1920 x 1080 350-nit LCD
  • Option for 1000-nit high brightness display
  • VGA video input, option for DVI or HDMI
  • P-cap multi-touch screen with USB
  • 0°C to 60°C wide range working temperature
  • Wide range 110 ~ 240VAC power input
$1,622.00
Availability: In stock
SKU
PMN80215
21.5" inch 1920 x 1080 full HD industrial LCD monitor with VGA, P-CAP touch screen with USB, 110-240VAC power input, IP66 rated stainless steel housing and front bezel.
Material
Anti-corrosion stainless steel with deactivated coating
LCD Panel
Size: 21.5 inch
Resolution: 1920 x 1080
Brightness (cd/m²): 250-nit, option for 1000-nit
Contrast Ratio (typ.): 1000:1
Viewing Angle (H/V): 170° x 160°
Active Area (mm): 476.64(H) x 268.11(V)
Pixel Pitch (mm): 0.248(H) x 0.248(V)
Colors: 16.7M
MTBF (hrs): 50,000
Video Input
VGA video input
Option for DVI or HDMI
Touch Screen
P-cap type touch screen monitor - USB
Option for 5-wire resistive type touch screen - USB
OSD
OSD Input: 5-key OSD buttons
OSD Function: Contrast, Color, Position,
Auto-adjustment, Factory Settings
Power Supply
110~240V AC power input, universal ±10%
Power Consumption: 40W (typ.)
Option for 9~36V DC power input
Connectors
1 x VGA (IP66 connector)
Option for 1 x HDMI ( IP66 connector)
Option for 1 x DVI (IP66 connector)
1 x USB for touch screen (IP66 connector)
Mounting
100 x 100mm / 200 x 100mm VESA mount
Weight
22.05 lb / 10 kg
Dimension

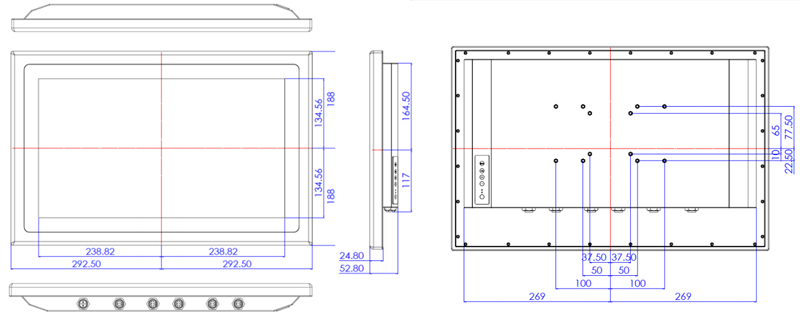

17.95"(W) x 14.96”(H) x 2.13"(D)
Environmental
Operating Temperature: 0°C to 60°C
Storage Temperature: -20°C to 70°C
Operating Humidity: 10~95%, non-condensing
Vibration: MIL-STD-810G Method 514.6C-3
Shock: MIL-STD-810G Method 516.6
IP Protection
Full IP66 rated protection

PMN80215:
21.5 inch 1920 x 1080 full HD LCD panel, full IP66 rated anti-corrosion stainless steel housing, P-cap multi-touch screen - USB,  VGA video input, °0C to 60°C wide range working temperature, 110~240VAC power input. Option for 1000-nit high brightness display, DVI / HDMI  input, and DC power input.
Lead time: 6 to 8 weeks

Document
Description
Download Link
file iconPMN80215-SP.pdf
Spec Sheet
