Panel mount monitor comes with a 12.1 inch 1024 x 768 450-nit industrial LCD panel, P-cap multi touch screen, VGA video input, and an IP66 rated anti-corrosion stainless steel housing. Option for a 1000-nit high brightness display, resistive type touch screen, DVI / HDMI video input, and DC power input.
10.1

PMN80100

15

PMN80150

PMN80120

  • Anti-corrosion stainless steel housing
  • Full IP66 rated rugged enclosure
  • 12.1 inch 1024 x 768 450-nit LCD monitor
  • Option for 1000-nit high brightness display
  • VGA video input, option for DVI / HDMI
  • P-cap multi-touch screen with USB
  • Option for resistive type touch screen
  • 110/240VAC power input
$1,215.00
Availability: In stock
SKU
PMN80120

12.1 inch 1024 x 768 LCD panel mount monitor with a fully IP66 rated anti-corrosion stainless steel housing, VGA video input, P-cap multi-touch screen, and AC power input.

Material
Stainless Steel SUS316
Anti-corrosion stainless steel housing
LCD Panel
Size: 12.1 inch
Resolution: 1024 x 768
Brightness (cd/m²): 450
Contrast Ratio (typ.): 700:1
Viewing Angle (H/V): 178° x 178°
Active Area (mm): 245.76(H) x 184.32(V)
Colors: 16.2M
Option for 1000-nit high brightness display
Option for optical bonding
Video Input
VGA video input
Option for DVI or HDMI
Touch Screen
P-cap multi touch screen monitor - USB
Option for 5-wire resistive type touch screen - USB
OSD
OSD Input: 5-key OSD buttons
OSD Function: Contrast, Color, Position, Auto-adjustment, and Factory Settings
Power Supply
Input: AC 110~240V
Consumption: 30W (typ.)
Option for 9~36V DC power input
Connectors
1 x VGA
1 x USB for touch screen
1 x 110~240VAC power input
Cables
IP66 rated cables for touch screen, video input, and power
Weight
12.1 lb / 5.5 kg

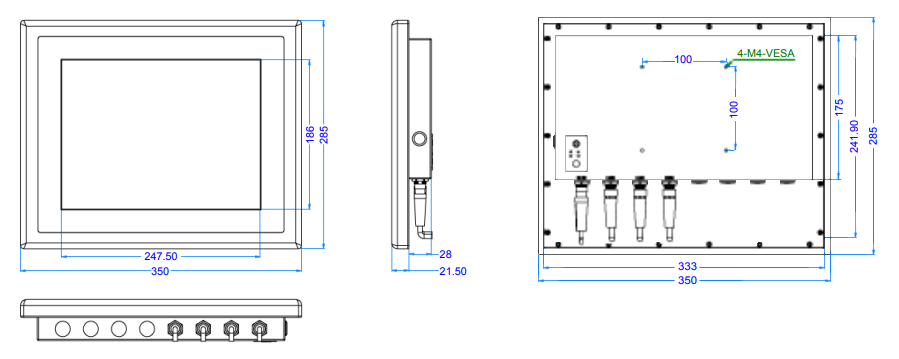

Dimension
13.8"(W) x 11.2”(D) x 1.9”(H)
Mounting
VESA mount (100mm)
Environmental
Operating Temperature: 0°C to 60°C
Storage Temperature: -30°C to 80°C
Relative Humidity: 10-95%, non-condensing
Vibration: MIL-STD-810G Method 514.6C-3
Shock: MIL-STD-810G Method 516.6
IP Protection
Full IP66 rated protection

PMN80120:
12.1 inch 1024 x 768 450-nit brightness LCD panel, P-CAP multi-touch screen monitor, VGA video input, AC power input, full IP66 rated anti-corrosion stainless steel housing. Option for 1000-nit high brightness display, DVI /HDMI video input, and optical bonding.

Document
Description
Download Link
file iconPMN80120-SP.pdf
Spec Sheet
