15" HMI touch screen monitor has IP65 rated flat panel designed front bezel with rugged aluminum die-casting enclosure, and ready for panel or VESA (100mm) mount.
APA9120

APA9120

APA9101

APA9101

APA9150

  • Aluminum die-casting chassis
  • Features flat front bezel with IP65 design
  • 2.15" short depth metal rugged construction
  • 15 inch 1024 x 768 resistive type touch screen monitor
  • Option for capacitive type touch screen
  • VGA + DVI ports
  • VESA mount or panel mount ready
  • Wide range 9~36V DC power input with external AC power adapter
$686.00
Availability: In stock
SKU
APA9150
15" HMI touch screen monitor has IP65 rated front bezel with aluminum die-casting enclosure. Option for projective capacitive type touch screen, 1000-nit high brightness display & -20°C to 60°C wide operating temperature (for standard brightness).
Material
Solid Aluminum die-casting chassis
IP65 compliant flat front panel
LCD Panel
Size: 15 inch
Max Resolution: 1024 x 768
Brightness: 300
Contrast Ratio (typ) : 800:1
Viewing Angle (H/V): 170° x 170°
Colors: 16.2M
Signal Input: VGA + DVI
Backlight: LED
MTBF (hrs): 50,000
Option for 1000-nit high brightness display
Video input
VGA + DVI video input
Touch screen monitor
Resistive type 15 inch touch screen monitor, USB/RS-232 (Std.)
Capacitive type 15 inch touch screen monitor, USB (Opt.)
Rear panel control
Power on/off switch
OSD membrane switch
Mounting Type
Panel mount or VESA (100mm) mount
Connectors
1 x VGA port
1 x DVI port
1 x 3-pin terminal block DC power input
1 x Tack switch for VGA/DVI (optional)
1 x Line in by phone jack (optional)
Power supply
9~36V DC with external AC power adapter
Weight
9.48lbs

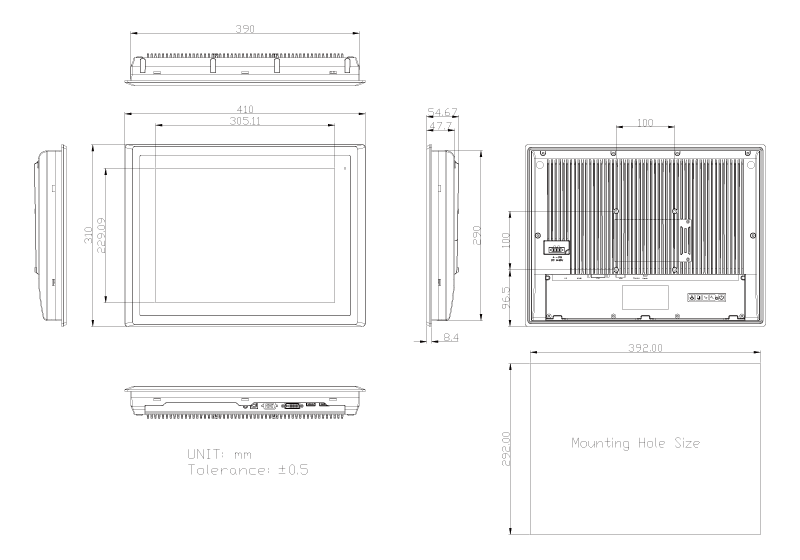

Dimension
16.14"(W) x 12.2"(H) x 2.15"(D)
Environmental
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 10~90%, @40°C non-condensing
Option for -20°C to 60°C wide operating temperature (for standard brightness)
Certification
CE/FCC Class A

APA9150:
15 inch 1024 x 768 resistive-type touch screen LCD monitor with aluminum die-casting chassis & IP65 rated flat front panel, VGA + DVI video input.

APA9150P:
15 inch 1024 x 768 capacitive-type touch screen LCD monitor with aluminum die-casting chassis & IP65 rated flat front panel, VGA + DVI video input.

Document
Description
Download Link
file iconAPA9150-SP.pdf
Spec Sheet
file iconAPA9150-UM.pdf
User Manual
