Industrial monitors with a 12.1 inch 800 x 600 resistive type touch screen, VGA + DVI + HDMI + DP video input, front IP66 rated front bezel with aluminum die-casting enclosure, and panel or VESA (100mm) mount. Option for Projected Capacitive type touch screen and 1000-nits high brightness.
8

APA9080

15

APA9150

APA9120

  • Aluminum die-casting chassis
  • Features flat front bezel with IP66 design
  • 12.1  inch 800 x 600 Resistive type touch screen monitor
  • 2.03" short depth metal rugged construction
  • Option for Projected Capacitive type touch screen
  • VGA, DVI, HDMI, and DP video input
  • Panel mount or VESA (100mm) mount ready
  • 9 to 36V DC power input w/ external AC power adapter
$685.00
Availability: In stock
SKU
APA9120

12.1 inch 800 x 600 resistive type touchscreen monitor with VGA + DVI + HDMI + DP video input, IP66 rated flat front bezel, aluminum die-casting chassis, and 9 to 36V DC power input.

Material
Solid Aluminum die-casting chassis
IP66 compliant flat front panel
LCD Panel
Size: 12.1 inch
Max Resolution: 800 x 600
Brightness (cd/m²): 450, option for 1000-nit
Contrast Ratio (typ) : 1500:1
Viewing Angle (H/V): 178° x 178°
Colors: 262K
MTBF (hrs): 50,000
Video Input
1 x VGA
1 X DP
1 x DVI-D (share with HDMI)
1 x HDMI (share with DVI-D)
Touch Screen
Resistive type touch screen monitor with USB port (std)
Option for Projected Capacitive type touch screen monitor with USB port
Rear panel control
Power on/off switch
OSD membrane switch
Mounting Type
Panel mount or VESA (100mm) mount
Connectors
1 x VGA port
1 x DP port
1 x DVI-D port (share with HDMI)
1 x HDMI port (share with DVI-D)
1 x USB Type B for touchscreen
1 x 3-pin terminal block DC power input
1 x 2W speaker (option)
Power supply
Power Input: 9~36V DC power input with external AC power adapter
Power Consumption: Max. 9W
Weight
5.73 lb / 2.6 kg

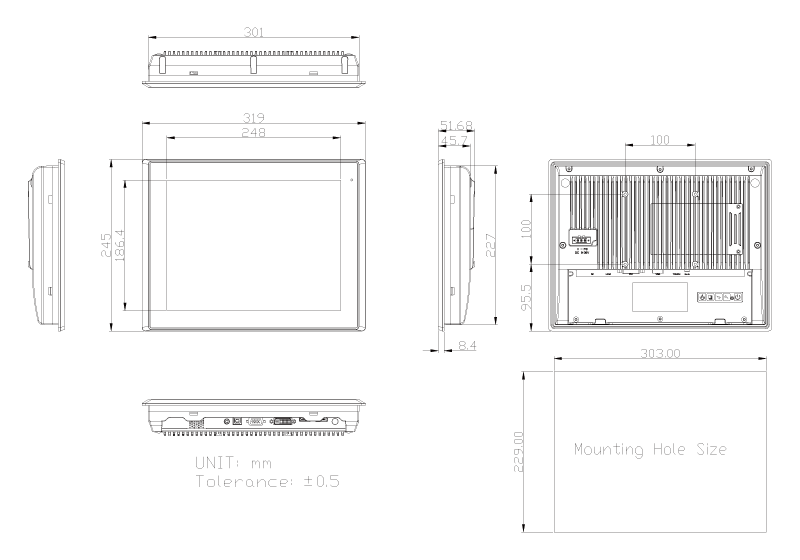

Dimension
12.56"(W) x 9.65"(H) x 2.03"(D)
Environmental
Operating Temperature: 0°C to 50°C
Storage Temperature: -30°C to 70°C
Relative Humidity: 10~90% @ 40°C, non-condensing
Option for -20°C to 60°C wide operating temperature (for standard brightness)
Certification
CE/FCC, Class A

APA9120:
12.1 inch 800 x 600 Resistive-type touch screen LCD monitor, VGA + DVI + HDMI + DP video input, aluminum die-casting chassis, IP66 rated flat front panel, 9 to 36V DC power input with external AC power adapter.

APA9120P:
12.1 inch 800 x 600 Projected Capacitive-type touch screen LCD monitor, VGA + DVI + HDMI + DP video input, aluminum die-casting chassis, IP66 rated flat front panel, 9 to 36V DC power input with external AC power adapter.

Document
Description
Download Link
file iconAPA9120-SP.pdf
Spec Sheet
file iconAPA9120-UM.pdf
User Manual
