The APA9101 is a 10.1 inch industrial LCD display supporting 1280 x 800 resolution, a Resistive type touch screen, and VGA + DVI + HDMI + DP input. The display features an aluminum die-casting chassis with a front IP66-rated flat front bezel. The display can be mounted into a cutout in an enclosure or it can be mounted with the panel and VESA (100mm) mounting holes. Options are available for a Projected Capacitive touch screen, 1000-nits high brightness display, speakers, and extended working temperature.
15

APA9150

17

APA9170

APA9101

  • Aluminum die-casting chassis
  • Features flat front bezel with IP66 design
  • 10.1 inch 1280 x 800 Resistive type touch screen
  • Option for Projected Capacitive type touch screen
  • Option for 1000-nits high brightness display
  • VGA, DVI, HDMI, and DP input
  • Panel or VESA (100mm) mount ready
  • 1.93" short depth metal rugged construction
  • 9 to 36V DC power input w/ external AC power adapter
$630.00
Availability: In stock
SKU
APA9101

10.1" 1280 x 800 HMI touch screen monitor with an IP66 rated front bezel, VGA + DVI + HDMI + DP video input, and aluminum die-casting chassis.

Material
Solid aluminum die-casting chassis
IP66 compliant flat front panel
LCD Panel
Size: 10.1 inch
Max Resolution: 1280 x 800
Brightness (cd/m²): 350-nit, option for 1000-nit
Contrast Ratio (typ.) : 800:1
Viewing Angle (H/V): 170° x 170°
Colors: 16.7M
MTBF (hrs): 25,000
Video input
1 x VGA
1 X DP
1 x DVI-D (share with HDMI)
1 x HDMI (share with DVI-D)
Touch screen
Resistive-type touch screen - USB port
Option for Projected Capacitive-type touch screen - USB port
Rear panel control
Power on/off switch
OSD membrane switch
Mounting Type
Panel mount or VESA (100mm) mount
Connectors
1 x VGA port
1 x DVI-D port (share with HDMI)
1 x DP port
1 x HDMI port (share with DVI-D)
1 x Audio line-in phone jack
1 x USB Type B for touchscreen
1 x 3-pin terminal block DC power input
Option for 1 x 2W speaker
Power supply
Power Input: 9~36V DC with external AC power adapter
Power Consumption: Max. 5.1W
Weight
4.19 lb / 1.9 kg

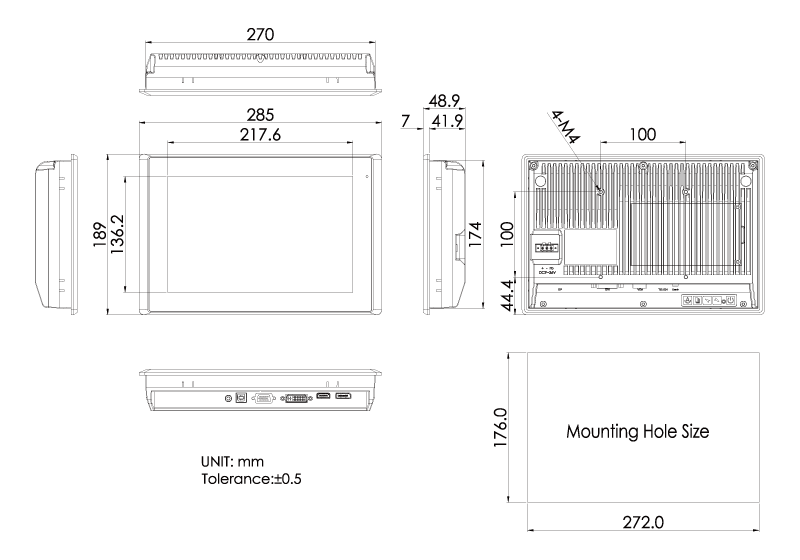

Dimension
11.22"(W) x 7.44"(H) x 1.93"(D)
Environmental
Operating Temperature: 0°C to 50°C
Storage Temperature: -30°C to 70°C
Relative Humidity: 10~90% @40°C non-condensing
Option for -20°C to 60°C wide operating temperature (for standard brightness)
Certification
CE/FCC, Class A

APA9101:
10.1 inch 1280 x 800 Resistive-type touch screen LCD monitor, VGA + DVI + HDMI + DP video input, aluminum die-casting chassis, IP66 rated flat front panel, 9 to 36V DC power input.

APA9101P:
10.1 inch 1280 x 800 Projected Capacitive-type touch screen LCD monitor, VGA + DVI + HDMI + DP video input, aluminum die-casting chassis, IP66 rated flat front panel, 9 to 36V DC power input.

Document
Description
Download Link
file iconAPA9101-SP.pdf
Spec Sheet
file iconAPA9XXX-UM.pdf
User Manual
