The APA9080 is an 8 inch industrial LCD display supporting 800 x 600 resolution, a Resistive type touch screen, and VGA + DP + DVI-D + HDMI video input. Weighing less than 4 lbs, this compact display features an aluminum die-casting chassis and a flat front bezel with IP66 protection. The display can be mounted into a cutout in an enclosure or it can be mounted with the panel and VESA (75mm) mounting holes. Options are available for a Projected Capacitive touch screen, 1000-nits high brightness display, speakers, and extended working temperature.
Loading...
7

APA9070

12.1

APA9120

APA9080

  • Aluminum die-casting chassis
  • Features flat front bezel with IP66 design
  • 8 inch 800 x 600 Resistive type touch screen
  • Option for Projected Capacitive type touch screen
  • Option for 1000-nits high brightness display
  • VGA, DVI, HDMI, and DP input
  • Panel or VESA (75mm) mount ready
  • 2.0" short depth metal rugged construction
  • 9 to 36V DC power input w/ external AC power adapter
$525.00
Availability: In stock
SKU
APA9080
Email
8" 800 x 600 HMI touch screen panel with an IP66 rated flat panel, aluminum die-casting chassis, VGA + DP + DVI-D + HDMI video input, and panel or VESA (75mm) mount.
Material
Solid aluminum die-casting chassis
IP66 compliant flat front panel
LCD Panel
Size: 8 inch
Max Resolution: 800 x 600
Brightness (cd/m²): 350-nit, option for 1000-nit high brightness
Contrast Ratio (typ.): 500:1
Viewing Angle (H/V): 140° x 120°
Colors: 16.2M
MTBF (hrs): 40,000
Video input
1 x VGA
1 x DP
1 x DVI-D (share with HDMI)
1 x HDMI (share with DVI-D)
Touch screen
Resistive type touch screen - USB port
Option for Projected Capacitive type touch screen - USB port
Rear panel control
Power on/off switch
OSD membrane switch
Mounting Type
Panel mount or VESA (75mm) mount
Connectors
1 x VGA port
1 x DVI-D port (share with HDMI)
1 x DP port
1 x HDMI port (share with DVI-D)
1 x Audio line-in phone jack
1 x USB Type B for touch screen
1 x 3-pin terminal block for DC power input
Option for 1 x 2W speaker
Power supply
Power Input: 9~36V DC power input with external AC power adapter
Power Consumption: Max. 6W
Weight
4.0 lb / 1.8 kg

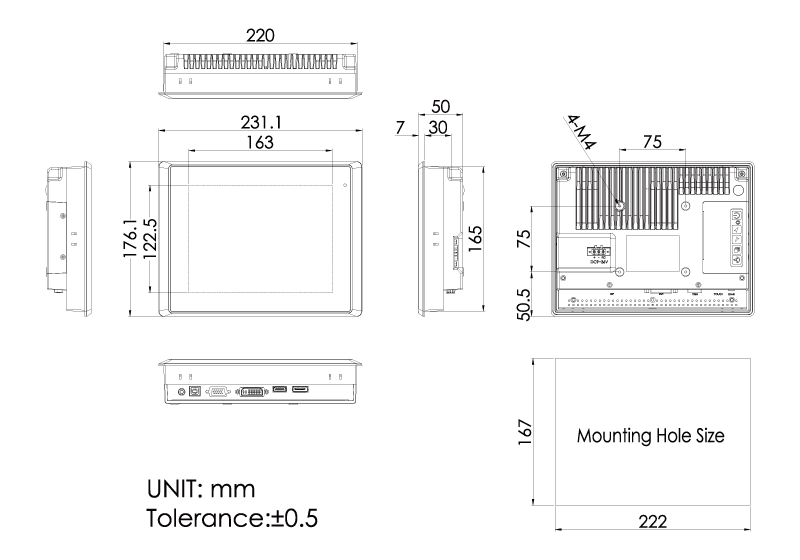

Dimension
9.10"(W) x 6.93"(H) x 2.0"(D)
Environmental
Operating Temperature: 0°C to 50°C
Storage Temperature: -30°C to 70°C
Relative Humidity: 10~90% @ 40°C, non-condensing
Option for -20°C to 60°C wide operating temperature (for standard brightness)
Certification
CE/FCC Class A

APA9080:
8 inch 800 x 600 Resistive-type touch screen LCD monitor, VGA + DP + DVI-D + HDMI video input, aluminum die-casting chassis, IP66 rated flat front bezel, 9 to 36V DC power input.

APA9080P:
8 inch 800 x 600 Projected Capacitive-type touch screen LCD monitor, VGA + DP + DVI-D + HDMI video input, aluminum die-casting chassis, IP66 rated flat front bezel, 9 to 36V DC power input.

Document
Description
Download Link
file iconAPA9080-SP.pdf
Spec Sheet
file iconAPA9XXX-UM.pdf
User Manual
  • APA9080
    8 inch 800 x 600 Resistive type touch screen
    Option for Projected Capacitive type touch screen
    Option for 1000-nits high brightness display
    VGA, DVI, HDMI, and DP input
    Panel or VESA (75mm) mount ready
    Option for -20°C to 60°C wide range working temperature
    9 to 36V DC power input w/ external AC power adapter
