The APA9070 is a 7 inch industrial LCD display supporting 800 x 400 resolution, a Resistive type touch screen, and VGA + DP + DVI-D + HDMI video input. Weighing less than 3 lbs, this compact display features an aluminum die-casting chassis and a flat front bezel with IP66 protection. The display can be mounted into a cutout in an enclosure or it can be mounted with the panel and VESA (75mm) mounting holes. Options are available for a Projected Capacitive touch screen, 1000-nits high brightness display, speakers, and extended working temperature.
Loading...
8

APA9080

APA9070

  • Aluminum die-casting chassis
  • Features flat front bezel with IP66 design
  • 7 inch 800 x 480 Resistive type touch screen
  • Option for Projected Capacitive touch screen
  • Option for 1000-nits high brightness display
  • VGA, DVI, HDMI, and DP input
  • Panel or VESA (75mm) mount ready
  • 1.54" short depth metal rugged construction
  • 9 to 36V DC power input w/ external AC power adapter
$362.00
Availability: In stock
SKU
APA9070
Email
7 inch 800 x 400 resistive touchscreen monitor with VGA + DP + DVI-D + HDMI video input, front IP66 rated aluminum die-casting chassis, and wide range 9 to 36V DC power input.
Material
Solid aluminum die-casting chassis
IP66 compliant flat front panel
LCD Panel
Size: 7" TFT LCD
Max Resolution: 800 x 480
Brightness (cd/m²): 350-nit, option for 1000-nit high brightness
Contrast Ratio (typ) : 400:1
Viewing Angle (H/V): 140° x 120°
Colors: 262K
MTBF (hrs): 50,000
Video input
1 x VGA
1 x DP
1 x DVI-D (share with HDMI)
1 x HDMI (share with DVI-D)
Touch Screen
Resistive type touch screen - USB port
Option for Projected Capacitive touch screen monitor - USB port
Rear panel control
Power on/off switch
OSD membrane switch
Mounting Type
Panel mount or VESA (75mm) mount
Connectors
1 x VGA port
1 x DVI-D port (share with HDMI)
1 x DP port
1 x HDMI port (share with DVI-D)
1 x Audio line-in phone jack
1 x USB Type B for touch screen
1 x 3-pin terminal block for DC power input
Option for 1 x 2W speaker
Power supply
Power Input: 9~36V DC power input with external AC power adapter
Power Consumption: Max. 4W
Weight
2.34 lb / 1.06 kg

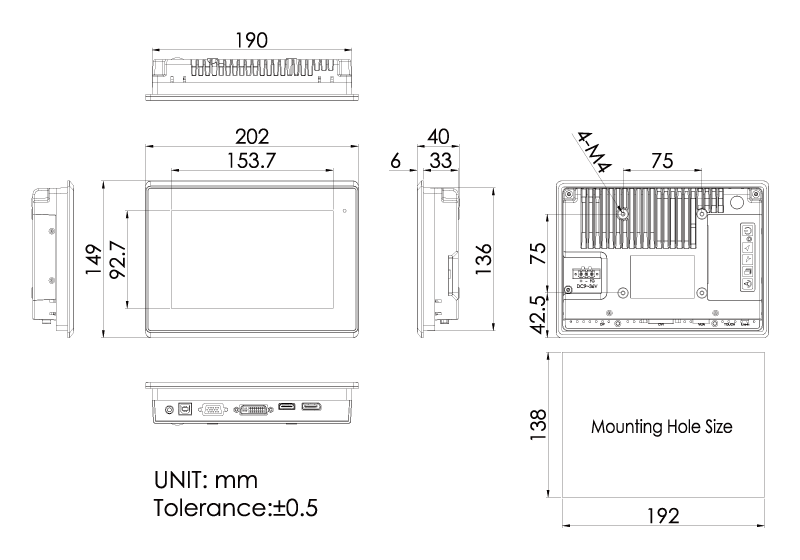

Dimension
7.95"(W) x 5.87"(H) x 1.57"(D)
Environmental
Operating Temperature: 0°C to 50°C
Storage Temperature: -30°C to 70°C
Relative Humidity: 10~90% @40°C, non-condensing
Option for -20°C to 60°C wide operating temperature (for standard brightness)
Certification
CE/FCC Class A

APA9070:
7 inch 800 x 480 Resistive-type touch screen LCD monitor, VGA + DP + DVI-D + HDMI video input, aluminum die-casting chassis, IP66 rated flat front panel, 9 to 36V DC power input.

APA9070P:
7 inch 800 x 480 Projected Capacitive-type touch screen LCD monitor, VGA + DP + DVI-D + HDMI video input, aluminum die-casting chassis, IP66 rated flat front panel, 9 to 36V DC power input.

Document
Description
Download Link
file iconAPA9070-SP.pdf
Spec Sheet
file iconAPA9XXX-UM.pdf
User Manual
  • APA9070
    7 inch 800 x 480 Resistive type touch screen monitor
    Option for Projected Capacitive touch screen
    Option for 1000-nits high brightness display
    VGA, DVI, HDMI, and DP input
    Panel or VESA (75mm) mount ready
    Option for -20°C to 60°C wide range working temperature
    9 to 36V DC power input w/ external AC power adapter
    Starting at:
    $362.00
APA9070
$362.00

PRODUCT DESCRIPTION
APA9070 presents a panel mount industrial monitor with an aluminum die-casting chassis with IP65 compliant flat front bezel. The IP66 design has complete protection from dust, oil, and other non-corrosive material. It also protects from water projected by a nozzle against enclosure from any direction. The built of the monitor is sturdy and highly protective and is ideal for an HMI display interface in robust and harsh environments. The 7 inch LCD panel displays a resolution of 800 x 480, 350-nits brightness, 400:1 contrast ratio, 262K colors, LED backlight, and 40,000 hours of MTBF (mean time between failures). It contains a resistive type touch screen with a USB port. The option for a capacitive type touch screen with a USB port is available. The slim design of 7.95"(W) x 5.87"(H) x 1.54"(D) and 2.2 lbs can be effortlessly installed using the panel or VESA mount. Its operational temperature can withstand a range from 32°F to 122°F (0°C to 50°C) and relative humidity of 10~90% at 40°C (104°F) non-condensing. The power supply is of 9~36VDC/ 2.4W at 12V. The video input supports VGA and DVI. The connectors include VGA port, DVI port, 3-pin terminal block DC power input, optional Tack switch for VGA/DVI, and optional Line in by phone jack.
