Rack console comes with 20.1-inch 1600x1200 monitor which supported Sun native resolution, 104-keys keyboard with SUN function keys, 3-button membrane touch pad and 8 ports DB-15 USB or PS/2 KVM switch. 1U high & 25.6-inch depth rack mount drawer.
Loading...
Monitor Keyboard Drawer KD8228 Front View

KD8228

Rackmount Drawer KDS82216 Front View

KDS82216

KDS8228

  • 1U high & 25.6-inch depth rack mount drawer
  • 20.1" 1600 x 1200 industrial LCD panel
  • Support Sun Micro 1152 x 900 native resolution
  • 104-key notepad keyboard with full numerical pad
  • 3-button membrane touch pad
  • Combo free (PS/2 or USB) for keyboard and touch pad
  • Built in On Screen Display controlled by membrane switches
  • 110/220VAC 25W power supply
$1,830.00
Availability: In stock
SKU
KDS8228
Email
Rack LCD console - 20.1-inch 1600 x 1200 / 1152 x 900 industrial LCD panel, keyboard with Sun function keys & touch-pad and 8 ports KVM switch. 1U high & 25.6-inch depth rack mount drawer.
Material:
Heavy-duty steel
LCD Panel:
Size: 20.1 "
Brightness: 300
Pixel Pitch:0.255(H) x 0.255(V)mm
Contrast Ratio: 800:1
Response time: Tr=1ms/Tf=4ms
Viewing Angle: 160 °(L/R),160°(U/D)
Colors: 16.7M colors
MTBF: 50,000 hours
Resolutions:
Max. Resolution: 1600 x 1200 (UXGA)
(Support Sun Micro 1152 x 900 native resolution)
Keyboard type :
104-key keyboard with 2-button mechanical mouse & full numerical pad
and Sun function
3-button membrane touch pad
On Screen Display Control:
Brightness, Contrast, Phase & Color, H &V position,
Auto-tune, Recall & Language
Video Input :
Video Synchronization: 45 ~ 80KHz
VGA (standard)
Front Panel Controls :
Power on/off switch
OSD(On Screen Display)
8 membrane KVM switch buttons and indicted LEDs
KVM Switch :
8 port USB KVM switch
Connector type: proprietary DB-15 KVM connector
Cascades level: 8 levels, up to 128 servers
Resolution: 1,600 x 1,200
Support hot plug cable and built-in KVM switch buttons
Multi-platform: Mix PCs, Suns, PCs, IBMs, HPs, Compaq & DELL
Support: Windows Vista/ 2003/ XP/ 2000, Linux, Netware, Unix
KVM Management :
Multilingual OSD: English, France, German, Spanish, Italian, Russian, Simplified Chinese,
Japanese
Hotkey combination: Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win
Security: Password enable & disable, up to 8 users profile for port access
PC Selection: Front button, OSD menu & hotkey
KVM Switch connector :
8 x D-Sub 15 pin (female) for VGA / Keyboard /mouse
(Combo Interface, USB or PS/2)
1 x D-sub 15 pin for cascades port
Cable:
8 x 6' 4-in-1 KVM cable for VGA / Keyboard /mouse
Optional for 10' or 15'
KVM side: 1 x D-sub 15 pin proprietary KVM connector
Server side: 1 x D-sub 15 pin VGA and 1 x USB or 2 x PS/2 connectors
Drawer security :
Plastic molded front handle with 2-position lock
Power Supply:
100- 240 V AC Input
Optional for DC power (+48V/ + -24V/ + -12V)
50W, 45W for Panel
Support Platform:
Dos, Windows (3.1, 9x, 2000, NT4, ME, XP, 2003 Server) Linux, Novell 3.12-6, HP UX,
SUN
Color:
Black
Environmental:
Temperature: Operate 0°~ 50°C / 32°~122°F
Storage-25°~ 65°C / -4°~140°F
Humidity: 8%~ 95% RH
Gross Weight :
26kg/ 57lbs
Safty:
CE, FCC, RoHS
Compatibility:
Multi-platform: Support PS/2, SUN and USB

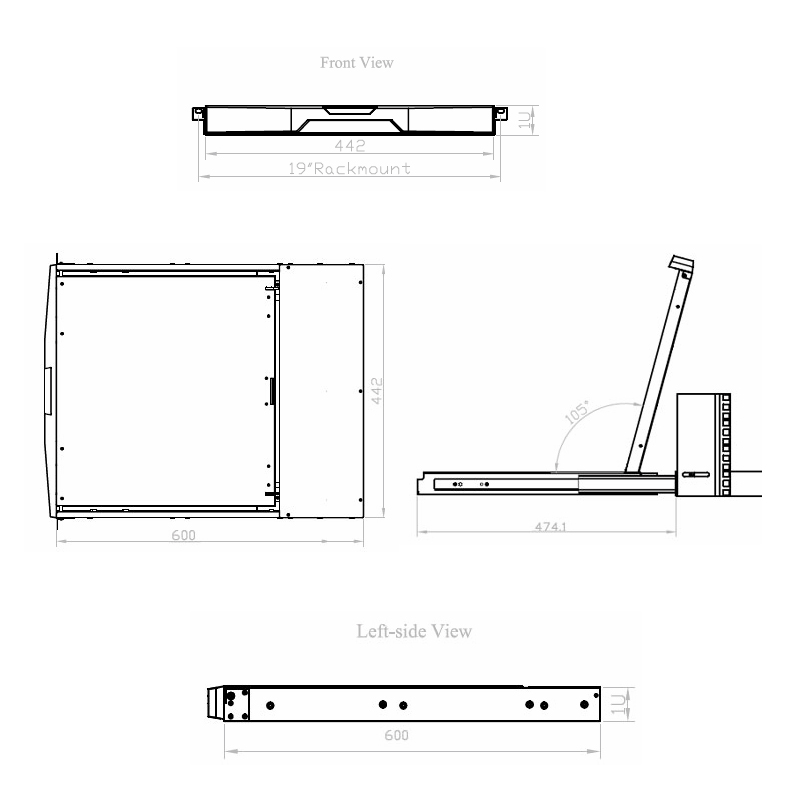

Dimension:
17.4"(W) x 1.73”(H) x 25.6"(D)
monitor keyboard

KDS 8228:
Rack mount Drawer with 20-inch 1600 x 1200 / 1152 x 900 LCD, 104-keys keyboard with Sun keys, 3-buttons touch pad and 8 ports DB-15 KVM switch. 8 x 6' KVM cable, Black color

Price: $1,830


Document
Description
Download Link
file iconKDS8228-SP.pdf
Spec Sheet
file iconKDS_8228-inst.pdf
Installation Guide
file iconKDS_8228-um.pdf
User Manual
  • KDS8228
    Rack mount LCD keyboard drawer
    20.1" 1600 x 1200 / 1152 x 900 LCD
    keyboard with Sun function keys
    Touch-pad
    8 ports KVM switch
    1U, 25.6" depth rack mount drawer
    Starting at:
    $1,830.00
KDS8228
$1,830.00

KDS8228 is 20.1 inch monitor keyboard drawers with 1600 x 1200 LCD panel, 104 keys notepad keyboard with full numerical pad and 3-button membrane touch pad, supports SUN native resolution, 8 ports KVM switch, On Screen Display function, and 110/220VAC 25W power supply.

Construction Features
- Heavy duty steel
- 1U compact design, 25.6” depth
- Plastic molded front handle with 2-position lock
- Operating temperature at 0°~ 50°C
- Humidity at 8%~ 95% RH
- 17.3"(W) x 1.75”(H) x 18.9"(D)

Monitor and Keyboard
- 20.1 inch 1600 x 1200 UXGA
- Sun Micro 1152 x 900 native resolution
- 300nit brightness
- 800:1 contrast ratio
- Tr=1ms/Tf=4ms response time
- 16.7 million colors - 50,000 hours of mean time between failure
- 104-key keyboard with 2-button mechanical mouse
- Full numerical pad
- Sun function 3-button membrane touch pad

Interior System
- Video input 45~80KHz VGA
- 8 membrane KVM switch buttons and LEDs
- 8 port USB KVM switch
- Proprietary DB-15 KVM connector
- Cascades 8 levels, up to 128 servers
- 1600 x 1200 resolution
- Support hot-pluggable cable and built-in KVM switch buttons
- Power supply auto-sensing 100 to 240VAC, 50/60Hz
- 8 x 6’ 4-in-1 KVM cable for VGA/ keyboard/ mouse with option for 10’ or 15’
- KVM side: 1 x D-sub 15 pin proprietary KVM connector
- Server side: 1 x D-sub 15 pin VGA and 1 x USB
- On Screen controls for brightness, contrast, phase and color, horizontal and vertical position, auto-tune, recall and language
- Supports platform on Windows Vista/ 2003/ XP/ 2000, Linux, Netware, Unix
