Rack mount console comes with 20 inch 1600 x 1200 industrial LCD monitor, 104-keys keyboard with key-pad (combo free), 3-button membrane touch pad and 8 ports KVM switch. Option for DVI, S-video, BNC & touch screen.

Loading...
1U 20

KD8220

Rackmount Drawer KDS8228 Front View

KDS8228

KD8228

  • 1U high & 25.6-inch depth rack mount drawer
  • 20.1 inch 1600 x 1200 industrial LCD panel
  • 8 ports KVM switch
  • 104-key notepad keyboard with full numerical pad
  • 3-button membrane touch pad
  • Combo free (PS/2 or USB) for keyboard and touch pad
  • On Screen Display controlled by membrane switches
  • VGA port, option BNC+S-Video, DVI-D, DC power and audio
  • 110/220VAC 25W power supply
$1,495.00
Availability: In stock
SKU
KD8228
Email
Monitor keyboard drawer - 20 inch 1600 x 1200 LCD panel, 104-key keyboard, touch pad (combo free), 8 ports KVM switch, 1U high & 25.6-inch depth rack mount drawer.

Material:
Heavy-duty steel

LCD Panel:
Size: 20.1 inch
Max. Resolution: 1600 x 1200 (UXGA)
Brightness: 300
Pixel Pitch:0.255(H) x 0.255(V)mm
Contrast Ratio: 800:1
Response time: Tr=1ms/Tf=4ms
Viewing Angle: 160 °(L/R),160°(U/D)
Colors: 16.7M colors
MTBF: 50,000 hours
Keyboard type :104-key keyboard with 2-button mechanical mouse & numerical key (combo free)
3-button membrane touch pad
On Screen Display Control:
Brightness, Contrast, Phase & Color, H &V position, Auto-tune, Recall & Language

Video Input :Video Synchronization: 45 ~ 80KHz, VGA (standard)
Front Panel Controls :Power on/off switch
OSD(On Screen Display)8 membrane KVM switch buttons and indicted LEDsKVM Switch :8 port USB KVM switch
Connector type: proprietary DB-15 KVM connector
Cascades level: 8 levels, up to 128 servers
Resolution: 1,600 x 1,200
Support hot plugg cable and built-in KVM switch buttons
KVM Management :Multilingual OSD: English, France, German, Spanish, Italian, Russian, Simplified Chinese, Japanese
Hot key combination: Scroll-lock, Cap-lock, Num-Lock, Alt, Ctrl & Win
Security: Password enable & disable, up to 8 users profile for port access
PC Selection: Front button, OSD menu & hot key

KVM Switch connector :
8 x D-Sub 15 pin (female) for VGA / Keyboard /mouse
(Combo Interface, USB or PS/2)
1 x D-sub 15 pin for cascades port

Cable:8 x 6' 4-in-1 KVM cable for VGA / Keyboard /mousel
Optional for 10' or 15'
KVM side: 1 x D-sub 15 pin proprietary KVM connector
Server side: 1 x D-sub 15 pin VGA and 1 x USB or 2 x PS/2 connectors
Power Supply:
100- 240 V AC Input
Optional for DC power (+48V/ + -24V/ + -12V)50W, 45W for Panel


Support Platform:Dos, Windows (3.1, 9x, 2000, NT4, ME, XP, 2003 Server) Linux, Novell 3.12-6, HP UX, SUN

Color:
Black

Environmental:Temperature:
Operate 0°~ 50°C / 32°~122°F
Storage-25°~ 65°C / -4°~140°F
Humidity: 8%~ 95% RH

Safty:
CE, FCC, RoHS

Compatibility:
Multi-platform: Support PS/2, SUN and USB

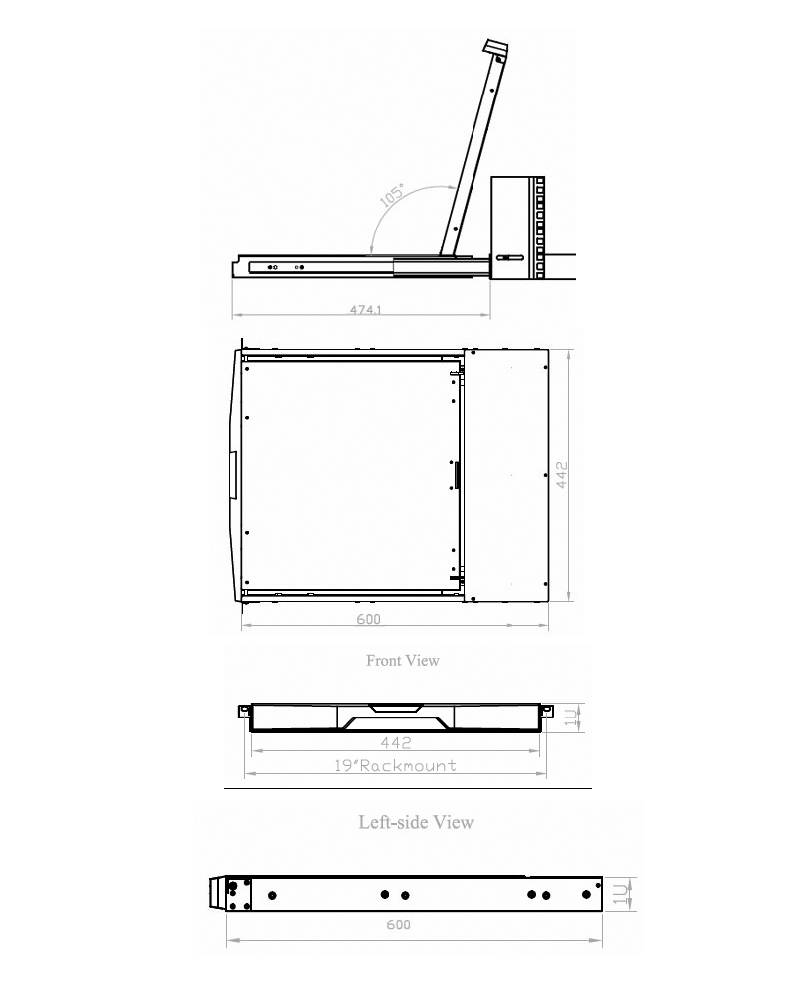

Dimension:
17.4"(W) x 1.73”(H) x 25.6"(D)

KD 8228:
20-inch 1600 x 1200 monitor keyboard drawer, keyboard, touch pa, 8 port KVM switch, 1U high & 25.6 inch depth rack mount drawer. Black color

Price: $1,495


Document
Description
Download Link
file iconKD_8228-data.pdf
Data Sheet
file iconKD_8228-dim.pdf
Dimension
file iconKD_8228-inst.pdf
Installation Guide
file iconKD-8228-UM.pdf
User Manual
  • KD8228
    Monitor keyboard drawer
    20 inch 1600 x 1200 LCD panel
    Keyboard & touch pad (combo free)
    8 port KVM switch
    1U high 25.6" depth rack mount drawer
    Starting at:
    $1,495.00
KD8228
$1,495.00

LCD Panel :
  The 20-inch LCD panel is an active type digital to digital which connects to the onboard conversion board and auto supports a 1600x1200 display resolution. The LCD monitor comes with a standard 15-pin VGA connector on the back of the rackmount drawer for your Sun system connection. The OSD function lets you adjust the LCD monitor for the best view. All the OSD buttons are located on the front of the LCD monitor for easy access. The monitor can be tilted to a 90 degree horizontal angle. The auto-shut off function engages whenever the monitor is returned to its resting position. This allows you to save LCD monitor life.

Keyboard & Pointing Device :
  The keyboard and touch pad are located in the front of the rackmount drawer underneath the LCD monitor. Both of them come with a standard PS/2 type connector on the back of the rackmount drawer for you pc system connection.

KVM Switch :
  We provide the KVM switch function for your unique hardware applications. The 8 ports DB-15 KVM switch is built into the keyboard drawer and provides the 8 KVM ports and 1 x Cascade KVM port (1 x VGA, 2 x PS/2) on the back of the drawer. You can select the server through the OSD (on screen display) menu or front hot-key buttons. The user can access the server independently and simultaneously through the matrix KVM switch. It supports hot-plug function and comes with a standard 6' high-density KVM cable for each individual KVM port. The KVM switch is compatible with Sun and PC systems. Optional: 10' or 15' KVM cable.

Rack mount Drawer :
  The low profile 1U drawer saves on rack space and integrates an LCD monitor, keyboard and track ball into a complete unit. The ball-bearing slide rail is mounted on each side of the drawer so that you can pull-out the drawer from a 19" rack cabinet. Two thumb-locker are installed on the front panel to lock the drawer inside the rack when the monitor keyboard drawer is not in use.

Cable for monitor, keyboard, and pointing device :
  We provide 8 x 6-feet 15pins D-sub proprietary KVM cable. Optional: 10-feet and 15-feet cable.

Power Supply :
  It comes with one 110/220VAC 12V/5A external power adapter.

Mounting:
  Monitor keyboard drawer is ready to mount into a standard 19" rack cabinet, the standard rear mounting bracket cab be extended up to a 34" depth for the rack server cabinet.
