Rack KVM console comes with 20.1" 1600 x1 200 / 1152 x 900 industrial panel, 104-keys keyboard with SUN function keys, 3-button membrane touch pad and 16 ports DB-15 USB or PS/2 KVM switch. 1U rack unit high, 25.6-inch depth rack mount drawer.
Loading...
Rackmount Drawer KDS8228 Front View

KDS8228

Rackmount Drawer KDS8220 Front View

KDS8220

KDS82216

  • 1U high and 25.6-inch depth rack mount drawer
  • 20.1-inch 1600 x 1200 industrial LCD panel
  • Support Sun Micro 1152 x 900 native resolution
  • 104-key notepad keyboard with full numerical pad
  • 3-button membrane touch pad
  • Combo free (PS/2 or USB) for keyboard and touch pad
  • Built in On Screen Display controlled by membrane switches
  • 110/220VAC 25W power supply
$1,996.00
Availability: In stock
SKU
KDS82216
Email
Rack KVM console - 20.1-inch 1600 x 1200 / 11520 x 900 industrial LCD panel, keyboard with Sun function keys & touch-pad & 16 ports KVM switch. 1U high & 25.6-inch depth rack mount drawer.
Material:
Heavy-duty steel
LCD Panel:
Size: 20.1 "
Brightness : 300
Pixel Pitch:0.255(H) x 0.255(V)mm
Contrast Ratio: 800:1
Response time: Tr=1ms/Tf=4ms
Viewing Angle: 160 °(L/R),160°(U/D)
Colors: 16.7M colors
MTBF: 50,000 hours
Resolutions:
Max. Resolution: 1600 x 1200 (UXGA)
(Support Sun Micro 1152 x 900 native resolution)
Keyboard type :
104-key keyboard with 2-button mechanical mouse & full numerical pad and Sun function
On Screen Display Control:
Brightness, Contrast, Phase & Color, H &V position, Auto-tune, Recall & Language
Video Input :
Video Synchronization: 45 ~ 80KHz
VGA (standard)
Front Panel Controls :
Power on/off switch
OSD(On Screen Display)
16 membrane KVM switch buttons and indicted LEDs
KVM Switch :
16 port USB KVM switch
Connector type: proprietary DB-15 KVM connector
Cascades level: 8 levels, up to 128 servers
Resolution: 1,600 x 1,200
Support hot plug cable and built-in KVM switch buttons
Multi-platform: Mix PCs, Suns, PCs, IBMs, HPs, Compaq & DELL
Support: Windows Vista/ 2003/ XP/ 2000, Linux, Netware, Unix
KVM Management :
Multilingual OSD: English, France, German, Spanish, Italian, Russian, Simplified Chinese,
Japanese
Hot key combination: Scroll-lock, Cap-lock, Num-Lock, Alt, Ctrl & Win
Security: Password enable & disable, up to 8 users profile for port access
PC Selection: Front button, OSD menu & hot key
KVM Switch connector :
16 x D-Sub 15 pin (female) for VGA / Keyboard /mouse
(Combo Interface, USB or PS/2)
1 x D-sub 15 pin for cascades port
Cable:
16 x 6' 4-in-1 KVM cable for VGA / Keyboard /mouse
Optional for 10' or 15'
KVM side: 1 x D-sub 15 pin proprietary KVM connector
Server side: 1 x D-sub 15 pin VGA and 1 x USB or 2 x PS/2 connectors
Drawer security :
Plastic molded front handle with 2-position lock
Power Supply:
100- 240 V AC Input
Optional for DC power (+48V/ + -24V/ + -12V)
50W, 45W for Panel
Support Platform:
Dos, Windows (3.1, 9x, 2000, NT4, ME, XP, 2003 Server) Linux, Novell 3.12-6, HP UX, SUN
Color:
Black
Environmental:
Temperature:
Operate 0°~ 50°C / 32°~122°F
Storage-25°~ 65°C / -4°~140°F
Humidity: 8%~ 95% RH
Gross Weight :
26kg/ 57lbs
Safety:
CE, FCC, RoHS
Compatibility:
Multi-platform: Support PS/2, SUN and USB

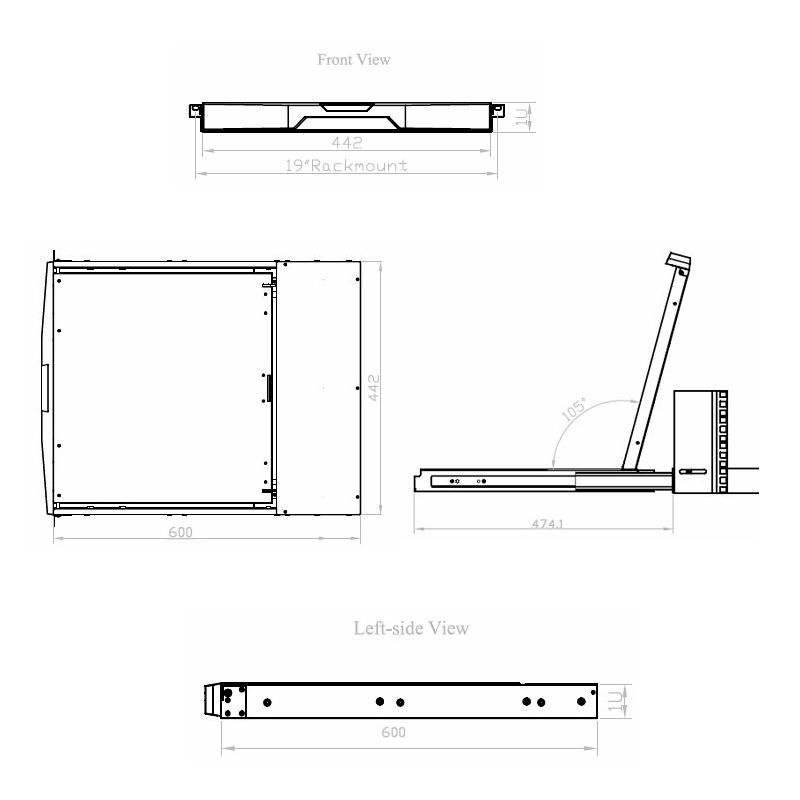

Dimension:
17.4"(W) x 1.73”(H) x 25.6"(D)
monitor keyboard

KDS 82216:
1U, Rack mount Drawer 20-inch 1600 x 1200 / 1152 x 900 LCD monitor, 104-keys keyboard with Sun keys, 3-buttons touch pad and 16 ports DB-15 KVM switch. 16 x 6' KVM cable, Black color

Price: $1,996


Document
Description
Download Link
file iconKDS82216-SP.pdf
Spec Sheet
file iconKDS_82216-inst.pdf
Installation Guide
file iconKDS_82216-um.pdf
User Manual
  • KDS82216
    Rack mount LCD keyboard drawer
    20.1" 1600 x 1200 / 1152 x 900 LCD
    Keyboard with Sun function keys
    Touch-pad
    16 ports KVM switch
    1U 25.6" depth rack mount drawer
    Starting at:
    $1,996.00
KDS82216
$1,996.00

KDS82216 of 20.1 inch LCD keyboard monitor drawer supporting SUN native resolution and built-in SUN function keys. The 1U compact design is of 25.6” depth. The SUN-compatible keyboard integrated with 3-button membrane touchpad with optional track ball. There are 104-key notepad keyboard with full numerical pad. The LCD displays resolution of 1600x1200 with sun native resolution of 1152x900. The brightness is 300nit and contrast ratio is 800:1. The mean time between failures is 50,000 hours with 16.7 million colors. The video input is video synchronization of 45~80KHz VGA.

The material construction is of heavy-duty steel. The drawer security is plastic molded front handle with 2-position lock. The dimension is 17.3"(W) x 1.75”(H) x 18.9"(D). The operating temperature is from 0°C~ 50°C.

There are 16 ports USB KVM switch with proprietary DB-15 KVM connector, cascades 8 levels with up to 128 servers. The resolution is 1600 x 1200. It supports hot-pluggable cable and built-in KVM switch buttons. The platforms supported are Windows Vista/ 2003/ XP/ 2000, Linux, Netware, and Unix. There are 16 x 6’ 4-in-1 KVM cables for VGA/ keyboard/mouse with options for 10’ or 15’ cable. On the KVM side there is 1 x D-sub 15 pin proprietary KVM connector and on the server side there is 1 x D-sub 15 pin VGA and 1 x USB or 2 X PS/2 connectors.

The power supply is auto-sensing 100 to 240 VAC. Optional DC power input is with 12V, 24, or 48V. The connectors include 8 x D-Sub 15pin (female) for VGA/keyboard/mouse (Combo interface, USB or PS/2) and 1 x D-sub 15 pin for cascades port.

Features:
- 20.1” 1600 x 1200 LCD monitor
- Support SUN native display resolution
- Supports Sun Micro 1152 x 900 native resolution
- 16 ports KVM switch
- 104-key notepad keyboard with full numerical pad and 3-button membrane touch pad
- Combo free (PS/2 or USB) for keyboard and touch pad
- Built in On Screen Display controlled by membrane switched
- 1U compact design, 25.6” depth
- 110/220VAC 25W power supply
