Rack console with 20 inch industrial monitor and 104-keys with Sun function key and touch pad, LCD monitor auto support 1152 x 900 and 1280 x 1024 both display resolution. Designed to be an 1U high control terminal for industrial computer application.
Loading...
Rackmount Drawer KDS82216 Front View

KDS82216

1U 17

KDS6170

KDS8220

  • 1U high & 25.6-inch depth rack mount drawer
  • 20.1-inch 1600 x 1200 industrial LCD panel
  • Supported Sun Micro 1152 x 900 native resolution
  • 104-key notepad keyboard with full numerical pad
  • 3-button membrane touch pad
  • keyboard and touch pad, USB-type
  • Built in On Screen Display controlled by membrane switches
  • Option BNC+S-Video, DVI-D, DC power and audio
  • 110/220VAC 25W power supply
$1,470.00
Availability: In stock
SKU
KDS8220
Email
Rack console, 20.1-inch 1600 x 1200 / 1152 x 900 LCD monitor, keyboard with Sun function keys and touch-pad. Option for DVI, S-video and BNC video input. 1U high and 25.6 inch depth rack mount drawer.
Material
Heavy-duty steel
Keyboard and touch pad (USB/PS/2)
SUN-compatible keyboard integrated with 3-button touchpad Optional for trackball
LCD Panel:
Size: 20.1 "
Brightness : 300cd/m^
Pixel Pitch:0.255(H) x 0.255(V)mm
Contrast Ratio: 800:1
Response time: Tr=1ms/Tf=4ms
Viewing Angle: 160 °(L/R),160°(U/D)
Colors: 16.7M colors
MTBF: 50,000 hours
Resolutions:
Max. Resolution: 1600 x 1200 (UXGA)
(Support Sun Micro 1152 x 900 native resolution)
Video Input
Analog RGB, 0.7Vp-p
Plug & Play DDC
EDID 1.3
Graphic Input (Optional)
DVI-D, BNC &S-Video input
Touch Screen (Optional)
Resistive & capacitive
Drawer Design
High load-rating slide rail with angle bracket
extension up to 32” depth
Optional Extension bracket to 36" depth
Connector
1 x D-Sub 15 pin (female) for VGA / Keyboard / mouse
(Combo interface, USB or PS/2)
1 x VGA and 1 x USB (system side)
Cable
1 x 6' cable for VGA / Keyboard /Track ball
Optional for 10' or 15'
Power supply
Auto-sensing 100 to 240VAC, 50/60Hz
Max. 48Watt, Standby 5W
DC Power (Optional)
DC Power input with 12V, 24V, 48V selection
Color
Black
Environmental
Operate 0ºC to 50ºC
Storage -5ºC to 60ºC
Humidity 5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random vibration
Weight
33 lb
Compatibility
Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs
Safty
FCC, CE

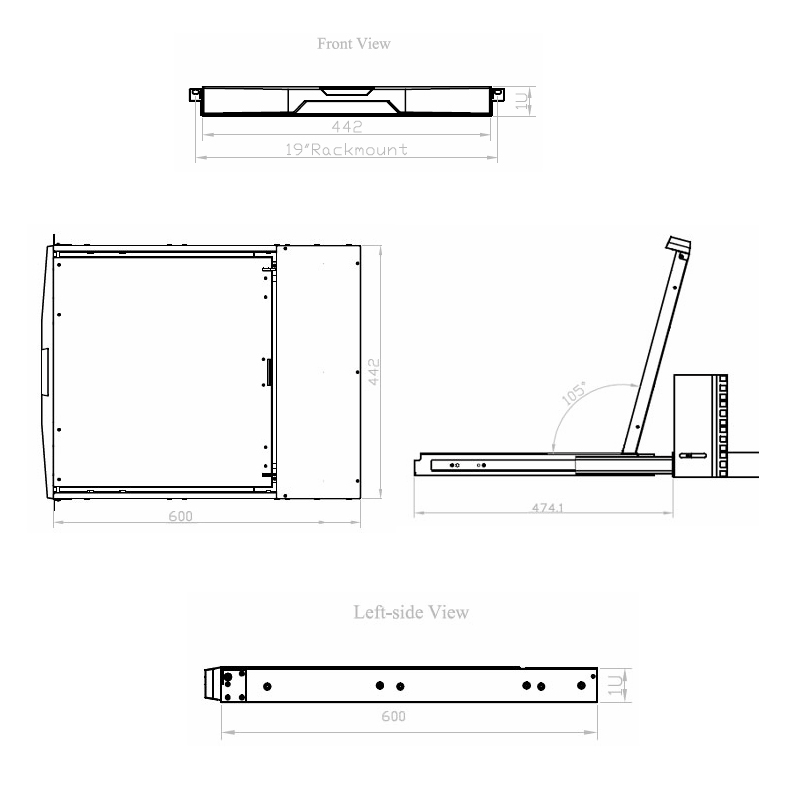

Dimension
17.4"(W) x 25.6"(D) x 1.73 "(H)
monitor keyboard

KDS 8220
Rack mount Drawer 20-inch 1600 x 1200 / 1152 x 900 industrial LCD monitor, 104-keys keyboard with Sun keys and 3-buttons touch pad,
Black color

Price: $1,470



Document
Description
Download Link
file iconKDS8220-SP.pdf
Spec Sheet
file iconKDS_8220-inst.pdf
Installation Guide
file iconKDS_8220-um.pdf
User Manual
  • KDS8220
    Rack mount LCD keyboard drawer
    20.1" 1600 x 1200 / 1152 x 900 LCD
    104-key keyboard with Sun keys
    Touch-pad
    Optional for DVI, S-video & BNC
    1U 25.6" depth rack drawer
    Starting at:
    $1,470.00
KDS8220
$1,470.00

KDS8220 is a 20.1 inch keyboard monitor drawer with 1600 x 1200 LCD monitor, 104-keys keyboard with Sun function key, supports Sun native resolution at 1152x900, built in On Screen Display controlled by membrane switches, and with 110/220VAC 25W power supply.

Constructive Features
The heavy-duty steel rack console houses 1U compact design at 25.6” depth. The operating temperature is from 0° to 50°C with humidity at 8%~ 95% RH. The dimension is 17.4"(W) x 25.6”(D) x 1.73"(H). The drawer security is a plastic molded front handle with 2-position lock.

Monitor and Keyboard
The Sun-compatible keyboard is integrated with 3-button membrane touchpad. It has 104 keys keyboard with Sun function key. The LCD panel is 20.1” with maximum resolution of 1600 x 1200(UXGA) and Sun native resolution of 1152x900. It is with 300 nits brightness, 800:1 contrast ratio, 16.7 million colors, and 50,000 hours of mean time between failure. Capacitive or resistive type touch screen are available as optional features.

Interior System
The video input is video synchronization at 45~80KHz VGA with option for BNC+S-Video, RAC S-Video or DVI. The power supply is auto-sensing 100 to 240 VAC with option for DC power. The cables include 1 x proprietary 4-in-1 KVM cable. The connector include 1 x D-sub 15-pin proprietary KVM port. It supports platform in Dos, Windows (3.1, 9x, 2000, NT4, ME, XP, 2003 Server) Linux, Novell 3.12-6, HP UX, and SUN.
