PRODUCT EOL NOTIFICATION: THE REPLACEMENT PRODUCT IS KD8190 19" RACK MOUNT LCD CONSOLE DRAWER WITH 104-KEY KEYBOARD AND TOUCHPAD

1U rackmount LCD keyboard console comes with a 19" 1280 x 1024 LCD panel, USB type 106-key keyboard, and 2-buttons touchpad. Two thumb lock screws are located on the front panel for system security, A pair of ball-bearing slide rails for the pull-out rack drawer, an external AC power adapter, 20.9" depth drawer chassis in black color.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

KD7170

KD8191

KD7190

1U rack mount compact design, only 20.9" depth
19 inch 300nit 1280 x 1024 LCD panel
OSD (On Screen Display) function
106-key keyboard with touch pad
2 x thumb locker screws
External 100/240VAC power adapter

Availability: In stock

SKU

KD7190

monitor keyboard drawer, 19 inch 1280 x 1024 LCD monitor, 106-key keyboard, touch pad &1U high 20.9" depth rack mount drawer.

Specification

Material: Heavy-duty steel

Keyboard and touch pad: 106-key keyboard and touch pad

LCD Panel: Size: 19”
Resolution: 1280 x 1024
Brightness: 250nit
Contrast Ratio: 1000:1
Pixel pitch: 0.098mm (H) x 0.294mm (W)
Viewing Angle: Right-left view: 170° (typical) / Up-down View: 160° (typical)
Back light: Dual lamps for back light
Colors: 16.7M colors
Response time: rising time 1.3ms, decay time 3.7ms
MBTF: 50,000 hours

Video input: Synchronization 45 - 80 KHz (Typ.)

Connectors: 1 x DVI
1 x USB port for keyboard / touch pad

Security lock: 2 x Thumb-lock screws for system security

Cable: 1 x 6’ (DVI /keyboard / touch-pad) KVM cable
Optional for 10’ / 15” KVM cable

External power adapter: 100~240VAC 50/60Hz external power adapter

Drawer design: 1 x ball-bearing slide-rails LCD, keyboard & touch-pad
Rear bracket extension up to 31" depth

Color: Black

Operation system: Dos, Unix, Linux, OSX, Windows (XP, 7, 8, Server 2012 R2)

Temperature: Operate: 0°C - 50°C (32°F - 122°F)
Storage: -20°C - 60°C (-4°F - 140°F)

Humidity: 10% ~ 90% RH

Gross weight: 27.6lb

Dimension: 17.6"(W) x 20.9"(D) x 1.7"(H)

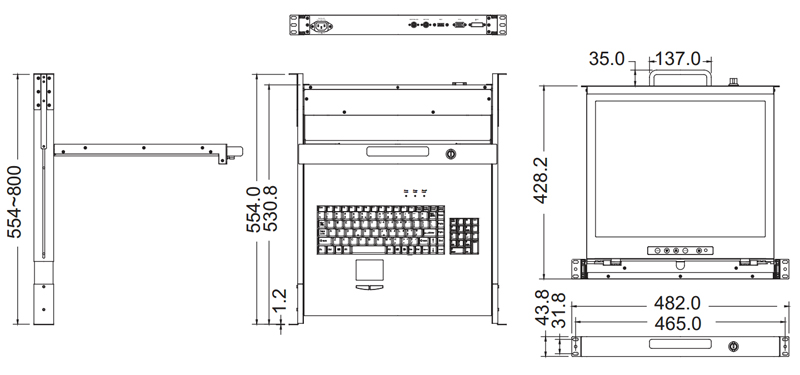

Dimensions

Order Info

KD 7190:
1U 19" 1280x1024 LCD rack mount monitor keyboard drawer, 106-key keyboard, touch pad, 20.9" depth, Black color
Price: $895.00

Downloads

Document

Description

Download Link

KD7190-DATA.pdf

Data Sheet

KD7190-DIM.pdf

Dimension

KD_7190-inst.pdf

Installation Guide

Configure Now

LCD Panel :
The 19-inch industrial monitor is a CCFL back light LCD panel which provides 1280 x 1024 display resolution and 16.7 millons display colors.The video input comes with a standard DVI connector on the back of the rack mount drawer for your rack mount server connection. The OSD function lets you adjust the LCD monitor for the best view. All the OSD buttons are located on the front of the monitor for easy access. The monitor can be tilted to a 90 degree horizontal angle. The auto-shutoff function enables whenever the monitor drawer is back to it's rest position. This allows to save LCD panel life.

Keyboard & Pointing Device :
The keyboard and touchpad located in the front of the rackmount drawer underneath the monitor drawer. Both of them come with standard type connector on the back of the drawer for you pc system connection.

Rackmount Drawer:
The low profile 1U drawer saves on rack space and integrates an LCD monitor, keyboard and pointing device to a complete unit. The ball-bearing slide rails are mounted on the each side of the drawer that you can pull-out the drawer from the 19" rack cabinet. The thumb locker is installed on the front panel to lock the drawer inside the rack when the monitor keyboard drawer is not in use.

Cable for Monitor, keyboard, and pointing device :
We provide 1 x 6' 3-in-1 cable (1x DVI port for monitor , 1 x USD port for keyboard and touch pad). Option for 10' and 15' cables.

Power Supply :
It comes with 100/240VAC auto switch external power adapter.

Mounting:
Monitor keyboard drawer is ready to mount into a standard 19" rack cabinet. The rear mounting bracket can be extened up to 31" deep for the rack server cabinet.
