Monitor keyboard drawer integrating a 19 inch 1280 x 1024 industrial LCD monitor with VGA video input and keyboard with touchpad into a 1U high 19.7 inch depth sliding drawer. Option for touch screen, video input (DVI/HDMI/BNC), and DC power supply. Option for resistive or capacitive type touch screen, video input (DVI / HDMI / BNC), and DC power supply.
1U 19

KDW8190

KD8190

  • 1U high 19.7 inch depth rackmount drawer
  • 19 inch 1280 x 1024 industrial LCD monitor
  • Front OSD (On Screen Display) function
  • VGA video input
  • Option for DVI, BNC, HDMI, Audio input
  • Option for Resistive or Capacitive type touch screen
  • 104-key keyboard with touchpad/trackball
  • External 100/240 auto-sensing AC power adapter
  • Option for 12V / 24V / 48V / 125V / 250V DC power supply
$912.00
Availability: In stock
SKU
KD8190
19" 1920 x 1024 rack LCD console with VGA video input and 104-key keyboard with touchpad in a 1U high 19.7" depth rackmount drawer.
Material
Heavy-duty steel
LCD Monitor
Size: 19 inch
Resolution: 1280 x 1024
Brightness (cd/m²): 250
Contrast Ratio: 1000 : 1
Display Area (mm): 376.32H x 270.33V
Viewing Angle (H/V): 170° x 160°
Colors: 16.7 M
Backlight: LED
MTBF (hrs): 30,000
Keyboard & Touchpad
104-key keyboard integrated with 3-button touchpad (USB or PS/2)
Option for keyboard with trackball
Video Input
VGA video input (std)
Option for DVI-D, BNC, HDMI, Audio, and SDI input
Touch Screen (Option)
Resistive or Capacitive type touch screen monitor - USB or serial port
Drawer Design
High load-rating slide rail with angle bracket
Extension up to 32” depth
Option for extension bracket up to 36" depth
Cable
1 x 6 feet 4-in-1 proprietary cable for VGA / Keyboard / Touchpad
Option for 10 feet or 15 feet KVM cable
Power Supply
Auto-sensing 100 to 240VAC, 50/60Hz power adapter
Consumption: Max. 22 Watt, Standby 2 Watt
Option for 12V / 24V / 48V / 125V / 250V DC power supply
Color
Black (RAL 9005)
Weight
27.9 lb / 12.7 kg

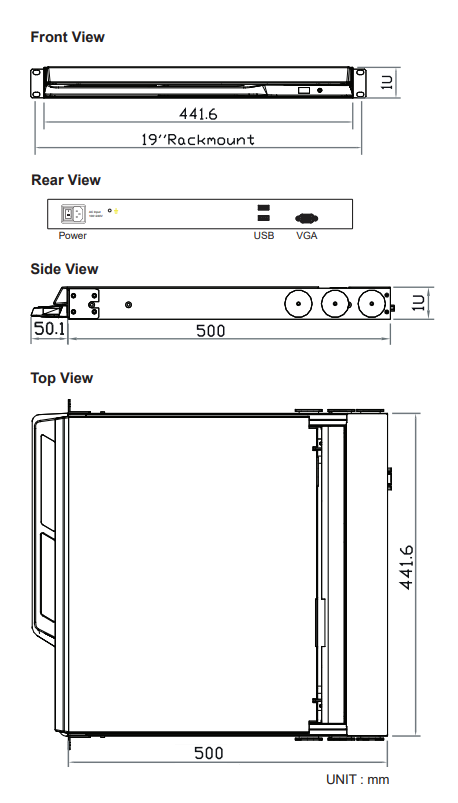

Dimension
17.4"(W) x 19.7"(D) x 1.73"(H)
For touch screen, video input, and DC power options:
Casing depth will increase from 19.7" to 20.5" ~ 22.4"
Environmental
Operating Temperature: 0°C to 50°C
Storage Temperature: -5°C to 60°C
Relative Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Safety
FCC, CE

KD8190:
19 inch 1280 x 1024 industrial LCD monitor, VGA video input, 104-key keyboard with touchpad, 1U high & 19.7" depth rackmount terminal, Black color. Option for Resistive or Capacitive type touch screen, DVI-D / BNC / HDMI / Audio / SDI input, and DC power supply.

Document
Description
Download Link
file iconKD8190-SP.pdf
Spec Sheet
file iconKD8190-INST.pdf
Installation Guide
file iconKD8190-UM.pdf
User Manual
