LCD keyboard drawer comes with 17 inch 1280 x 1024 industrial monitor, USB type 106-key keyboard, 2-buttons touch pad, 1U high & 19" depth rack mount drawer. The two thumb lock screws located on the front panel for system security, A pair of ball-bearing slide rail for pull-out rack drawer, external AC power adapter.

Skip to the beginning of the images gallery

KDM7178

KD7190

KD7170

1U high and 19" depth rack mount drawer
17 inch 250nit 1280 x 1024 LCD panel
OSD (On Screen Display) function
106-key keyboard with touch pad
2 x thumb locker screws
External 100~240VAC power adapter

$785.00

Availability: In stock

SKU

KD7170

Monitor keyboard drawer - 17 inch 1280 x 1024 LCD panel, keyboard with touch pad (USB), 1U high & 19" short depth rack mount drawer.

Specification

Material: Heavy-duty steel

Keyboard and touch pad: 106-key keyboard and touch pad

LCD Panel: Size: 17 inch
Resolution: 1280 x 1024
Brightness: 250nit
Contrast Ratio: 100:1
Pixel pitch: 0.264mm (H) x 0.264mm (W)
Viewing Angle: Right-left view: 170° (typical) / Up-down View: 160° (typical)
Back light: Dual lamps for back light
Colors: 16.7M colors
Response time: rising time 1.2ms, decay time 3.8ms
MBTF: 50,000 hours

Video input: Video Synchronization 45 ~ 80 KHz (Typ.)

Connectors: 1 x DVI
1 x USB port for keyboard / touch pad

Security lock: 2 x thumb-lock screws for system security

Cable: 1 x 6’ (DVI /keyboard / touch-pad) KVM cable
Optional for 10’ / 15” KVM cable

External power adapter: 100~240VAC 50/60Hz external power adapter

Drawer design: 1 x ball-bearing slide-rails LCD, keyboard & touch-pad
Rear bracket extension up to 32" depth

Color: Black

Operation system: Dos, Unix, Linux, OSX, Windows (XP, 7, 8, Server 2012 R2)

Temperature: Operate: 0°C - 50°C (32°F - 122°F)
Storage: -20°C - 60°C (-4°F - 140°F)

Humidity: 10% ~ 90% RH

Gross weight: 26.5lb

Dimension: 17.6"(W) x 19"(D) x 1.7"(H)

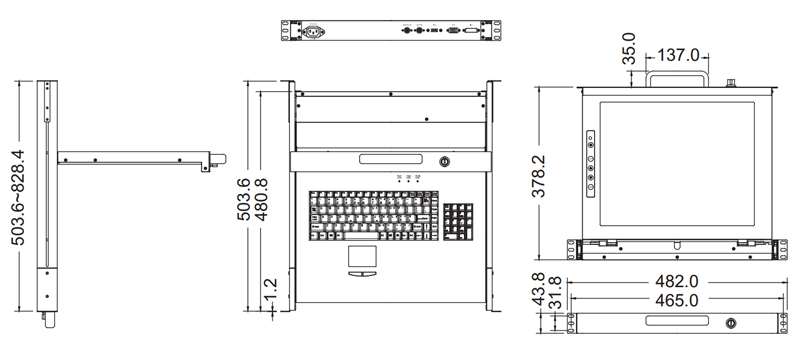

Dimensions

Order Info

KD 7170:
17 inch 1280 x 1024 LCD monitor, 106-key keyboard, touch pad, 1U high & 19 inch depth rack mount drawer, Black color
Price: $785.00

Downloads

Document

Description

Download Link

KD7170-DATA.pdf

Data Sheet

KD7170-DIM.pdf

Dimension

KD_7170-inst.pdf

Installation Guide

Configure Now

LCD Panel :
The 17-inch (1280 x 1024) industrial LCD panel is an active type digital to digital which connects to the onboard conversion board. The LCD monitor comes with a standard DVI connector on the back of the rackmount drawer for your pc system connection. The OSD function lets you adjust the LCD monitor for the best view. All the OSD buttons are located on the front of the LCD monitor for easy access. The monitor can be tilted to a 90 degree horizontal angle. The auto-shutoff function enables whenever the monitor drawer is returned to its resting position. This allows you to save LCD montior life.

Keyboard & Pointing Device :
The keyboard and touchpad (USB type) are mounted on the front of the rack mount drawer underneath the LCD monitor. Both of them come with a standard USB type connector on the back of the rackmount drawer for you pc system connection. The slim-type (notebook size) 106-key keyboard comes with function keys and key-pad function.

Rackmount Drawer :
The low profile 1U hifh drawer saves on rack space and integrates an LCD monitor, keyboard and pointing device into a complete unit. The ball-bearing slide rails are mounted on the each side of the drawer so that you can pull-out the drawer from the 19" rack mount cabinet. Two thumb-lock screws are installed on the front panel to lock the drawer inside the rack when the monitor keyboard drawer is not in use.

Cable for monitor, keyboard, and pointing device :
We provide 3 in 1 (1-DVI port, 1-USB port) cable for monitor, keyboard and touch-pad. Optional for 10' and 15' cable.

Power Supply :
The drawer console comes with an external 100/240VAC auto-switch power adapter.

Mounting:
Monitor keyboard drawer is ready for mounting into a standard 19" rack mount cabinet, the rear mounting bracket can be extened up to 32" deep for the rack server cabinet.
