1U high rack mount monitor with 17 inch LCD monitor (protected by tempered glass) and keyboard drawer, has two independent slide-rails for LCD display and keyboard drawer (106-key keyboard with touch pad), and 8-port KVM switch.
Loading...
Monitor Keyboard Drawer KDM7198 Front View

KDM7198

Monitor Keyboard Drawer KD7170 Front View

KD7170

KDM7178

  • 1U compact design, 22.2 inch depth
  • 17" 1280 x 1024 TFT LCD display
  • OSD (On Screen Display) function
  • 8-port PS/2 or USB KVM switch
  • Tempered glasses to protect LCD display
  • 2 x independent slide-rails for LCD display & keyboard
  • Front power ON/OFF switch
  • 110/220VAC 25W power supply
$1,385.00
Availability: In stock
SKU
KDM7178
Email
rack mount console with 17 inch 1280 x 1024 LCD with tempered glass protection, keyboard with touch pad, has 8-port USB or PS/2 KVM switch and 1U 22.2 inch depth drawer with dual rail.
Material
Heavy-duty steel
Keyboard and touch pad (USB/PS/2)
106-key keyboard and 2-buttons touch pad
Combo free, USB or PS/2 port selected by cables (STD)
LCD Panel
Size: 17"
Max. Resolution: 1280x1024 SXGA
(support SUN native resolution)
Brightness: 250
Contrast Ratio: 450:1
Pixel pitch: 0.264(H) x 0.264(W) mm
Response time: Rising Time 2ms, Falling Time 14ms
Viewing Angle: 60°~70°(L/R),45°~60°(U/D)
Back Light: 4 x CCFTs
Colors: 16.2M colors
MTBF: 20,000 hours
On Screen Control
5 x OSD buttons
OSD Control Brightness, Contrast, Phase & Color H & V position, Auto-tune & Recall
Video input
Video Synchronization: 45KHz - 80KHz
Input Signal: Analog RGB 0.7Vp-p
Optional for DVI input
KVM switch
8-port KVM switch,
PS/2 or USB port (selective by KVM cable, max 5 meter)
Daisy chain ports up to 8 level, provide ACL (access control list) security function, store up to 8 independent controllable PC lists.
PC selection through OSD menu function , hot keys.
Multi-languages OSD menu control
Connectors
8 x D-Sub 15 pin port for KVM ports
1 x D-Sub 15 pin port for Daisy chain port
Front control
5 x OSD menu buttons
1 x power ON/OFF switch
KVM Cables
8 x 6’ all-in-one cable (1x VGA, 2 x PS/2), standard
Optional for 6' USB KVM cable (1 x VGA, 1 x USB)
Optional for 10’ / 15’ USB or PS/2 KVM cable
Security Lock
2 x thumb-lock screws
1x key lock switch
Drawer Design
1U low profile
Dual slide rail for independent monitor and keyboard/touch pad trays
Hidden handle for keyboard/touch pad tray
Drawer can be extension up to 36" depth
Power supply
100/240VAC 25W power supply
Color
Black
Environmental
Operating Temperature: 0°~ 50°C / 32°~ 122°F
Storage Temperature:-20°~ 60°C / -4°~ 140°F
Humidity: 10% ~ 95% RH
Safety
CE/FCC, UL/CUL certificated
Gross Weight
27lb

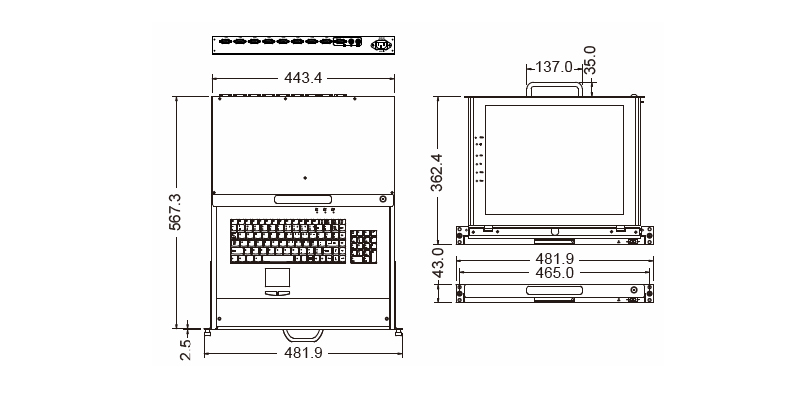

Dimension
19"(W) x 22.2”(D) x 1.75"(H)

KDM 7178:
1U 17" 1280x1024 LCD rack mount monitor keyboard drawer, w/106-key keyboard, touch pad and 8-port KVM switch, Black color,

Price: $1125.00


Document
Description
Download Link
file iconKDM_7178-data.pdf
Data Sheet
file iconKDM_7178-dim.pdf
Dimension
file iconKDM_7178-inst.pdf
Installation Guide
file iconKDM_7178-um.pdf
User Manual

LCD Panel :
  The 17-inch (1280 x 1024) LCD panel is a TFT active type digital to digital which connects to the onboard conversion board. The LCD monitor comes with standard 15-pin VGA connector on the back of the rackmount drawer for your pc system connection. The OSD function lets you adjust the LCD monitor for the best view. All the OSD buttons are located on the front of the LCD monitor for easy access. The monitor can be tilted to a 110 degree horizontal angle. The auto-shutoff function enables whenever the monitor drawer is returned to its resting position. This allows to save LCD monitor life. The anti-glare tempered glass is added on the front of 17-inch LCD monitor to prevent impact damage to the LCD monitor. Optional: resistive-type touch screen with RS 232 port connector.

Keyboard & Pointing Device :
  The keyboard and touch-pad (PS/2 or USB type, combo free) are mounted on the front of the rackmount drawer underneath the LCD monitor, It comes with proprietary KVM port connector (USB or PS/2 port selective by KVM cable) on the back of the rackmount drawer for you pc system connection. The slim-type (notebook size) keyboard comes with function keys and key-pad function.

KVM Switch (VGA, Keyboard, touch-pad) :
  We provide the KVM switch function for your unique hardware applications. The 8 ports KVM switch is built into the keyboard drawer and provides the 8 KVM ports on the back of the drawer. You can select the PC stations through the OSD (on screen display) menu or front hot-key buttons. It supports hot-plug function and come standard with 6' high-density PS/2 or USB KVM cable for each individual KVM port. The KVM switch is compatible with SUN and PC system.

Rackmount Drawer :
  The low profile 1U drawer saves on rack space and integrates an LCD monitor, keyboard and pointing device to a complete unit. The dual ball-bearing slide rails are mounted on each side of the drawer that enables you to pull-out the LCD monitor or keyboard/touch pad drawer separately from the 19" rack cabinet. The key- lock is installed on the front panel to lock the drawer inside the rack when the monitor keyboard drawer is not in use.

KVM Cable for monitor, keyboard, and pointing device :
  We provide 8 x 6' 3- in-1 PS/2 KVM cable (1x 15 pin VGA port for monitor , 2 x PS/2 port for keyboard and touch pad). Optional for 10' and 15' cable. Optional for USB KVM cable.

Power Supply :
It comes with 110/220VAC auto switch power supply.

Mounting:
Monitor keyboard drawer is ready to mount into the standard 19" rack cabinet, the rear mounting bracket can be extened up to 36 " deep for the rack server cabinet.
