Fan less embedded system comes with Core 2 Duo 1.6GHz processor, 120GB HD, Quad LAN, Audio, DVI-I, 2 PCI expansion slots and 4 COM/USB ports. The rugged aluminum alloy chassis designed for wide range operation temperature (under freezing point), anti-vibration and 50G shock working environment.

Skip to the beginning of the images gallery

RMC6446B

FES6920

FES6930

Aluminum alloy rugged micro box
Fanless embedded system
Intel Core 2 Duo 1.6GHz system
Wide range working temperature (14°F ~ 122°F)
Quad Lan with DVI video input
2 x PCI expansion slots
9 to 30VDC power input

$1,785.00

Availability: In stock

SKU

FES6930

Fan less embedded box, Core 2 Duo 1.6GHz system, 120GB HD, 1GB DDR-II memory, Quad Lan, DVI & 2 x PCI slots. Aluminum alloy chassis (8.43" x 3.73" x 9.36”). -10 to 50 degree C working temperature.

Specification

Construction: Rugged aluminum alloy chassis

Embedded System: CPU Type: Intel L7500 1.6GHz processor
Memory: DDRII SDRAM SODIMM x 2, Max. 2 GB
Expansion:
2 x PCI,
2 x PCMCIA
Driver Bays: 1 x SATA/IDE HD Drive bracket

I/O Port: Serial port: 4 x COM
Com3/4:RS-232, Com1/2:RS-232/422/485
USB: 4 x USB2.0
LAN: 4 x RJ-45, Gigabit Ethernet
Audio: Line-in, Line-out, Mic-in by an extension cable
VGA/Keyboard/Mouse:
1 x DVI-I (DB-15 VGA Connector by VGA adapter)
1 x PS/2 for Keyboard & Mouse

I/O Layouts: 4 x COM
4 x RJ-45, Gigabit Ethernet
4 x USB 2.0 connector
1 x Line-in/Line-out/Mic-in port
1 x DVI-I port
1 x PS/2 for Keyboard & Mouse
1 x Power On/Off Switch
1 x DC Power input
1 x Reset button

Expansion Slot: 2 x PCI Slot
2 x PCMCIA Slot
1 x CompactFlash Slot

System LED Indicator: 1 x Power LED
1 x HDD LED

Power Supply: ATX power function
DC Input 9-30
Power Board Support 80W operation output
AC power adapter (Optional), input voltage range 100~240V

System Support: Windows CE 5.0, Windows XP pro, Windows XP Embedded, Linux, Vista, Windows 7, Red Hat

Color: Mustard

Mounting: Wallmount

Dimension: 8.43"(W) x 3.73"(H) x 9.36 "(D)

Weight: 12.4lb

Environmental: Operating Temperature:
-15 °C ~ 55°C (CFD w/ RAM x 1)
-10°C ~ 50°C (HDD w/ RAM x 1)
Storage Temperature: -20°C to 70 °C
Humidity: 5~95% @ 40 °C, non-condensing
Vibration:
5g rms/5 ~ 500Hz/operation (CFD)
1g rms/5 ~ 500Hz/operation (HDD)
Shock: 50G peak acceleration (11ms duration)
EMC: CE/FCC

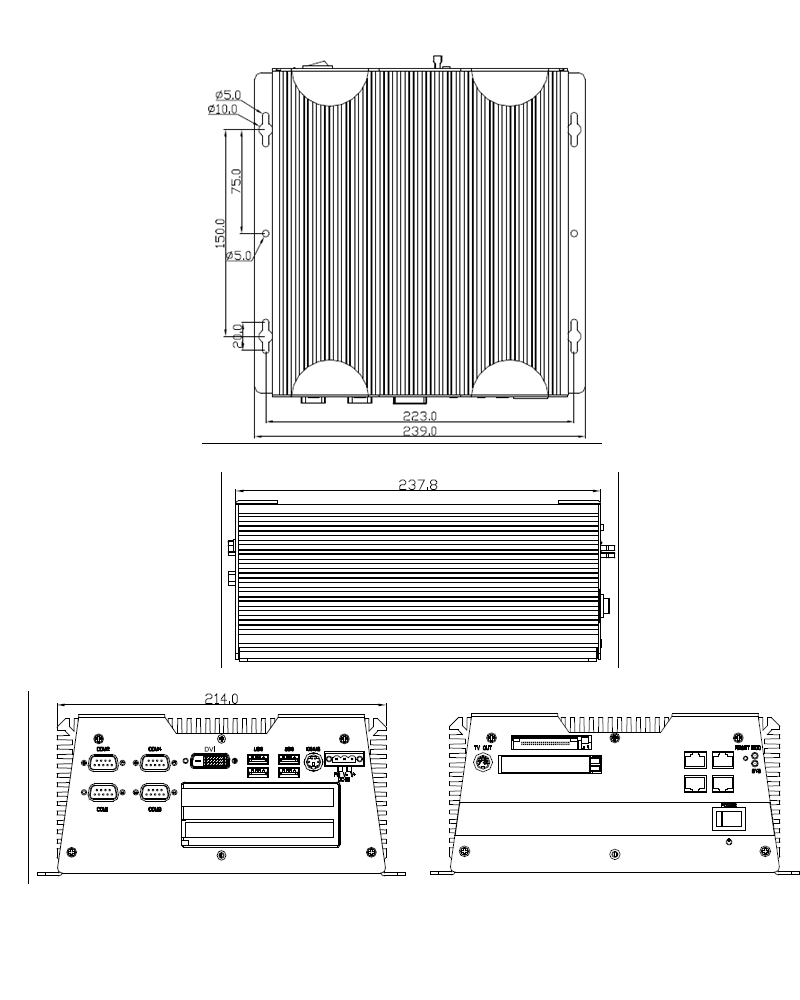

Dimensions

Order Info

FES 6930:
Fan less embedded system, Core 2 Duo 106GHz CPU, 1GB DDR-II memory, 120GB HD & 2 x PCI expansion slots. Wall mount ready.
Price:$ 1785.00

Downloads

Document

Description

Download Link

FES_6930-data.pdf

Data Sheet

Configure Now

FES6930

Fan less embedded box
Core 2 Duo 1.6GHz system
120GB HD & 1GB memory
Quad Lan & DVI
2 x PCI slots
Aluminum alloy chassis (8.43"x3.8"x 9.4")
-10 to 50 degree C working TempÂ

Starting at:
$1,785.00

FES6930

$1,785.00

CPU

Core 2 Duo L7500 1.6GHz

memory

1GB memory

Hard Drive

250GB HD

Ethernet LAN

100/1000 Ethernet LAN

Video

On-board video

Operating system

No O.S.

Windows 7 Pro 32bit + $165.00

Windows XP Pro 32Bit + $265.00

Qty:

Construction :
Compacted rugged fanless micro box has an aluminum die-casting heat sink and heavy-duty alloy construction. The small form factor embedded box is designed for industrial applications like POS, transportation, control, surveillance and more. It provides high reliability and noiseless performance in harsh environments.

On Board System :
The embedded system is powered by a Core 2 Duo L7500 1.6GHz processor. It comes with the features of the standard motherboard with Fanless design function. It comes with a 2.5" slim-type SATA hard drive, 2 x DDRII SODIMM memory (Max. 2 GB), watchdog timer, 4 x RS-232 ports, 4 x USB ports, Quad Gigabit LAN, Audio and DVI with MXM graphic expansion. The all-in-one fan less system provides wide working temperature range from 14oF to 122oF (-10oC ~ 50oC), operation vibration at 1G rms 5 to 500Hz and shock at 50G peak acceleration (11ms duration).

Storage Device :
The system comes with a standard 2.5" SATA HD and a Compact Flash slot.

Expansion Slots :
We provide 2 x PCI slot and 2 x PCMCIA for the expansion.

Power Supply :
The fanless industrial PC uses the industry-grade Phoenix type or DC-jack power connector plug, and supports a 9VDC to 30VDC power supply with ATX power function. Optional:100/220VAC 50/60z external AC power adapter.

Mounting :
Fanless embeddd system can be wall mount.
