Fan less embedded system comes with Core 2 Duo processor, 2.5" SATA HD, Dual LAN, Audio, 2 x PCI / Mini PCI & 2 x PCMCIA expansion slots and 4 COM/USB ports. The rugged aluminum alloy chassis designed for wide range operation temperature (under freezing point), anti-vibration and 50G shock working environment.
Loading...
Fanless Embedded Box FES6930 Front View

FES6930

Fanless Embedded Box FES8914 Front View

FES8914

FES6920

  • Aluminum alloy rugged micro box
  • Fanless embedded system
  • Intel Core 2 Duo 1.6GHz Processor
  • Wide working temperature from -15°C to 50°C
  • Built-in 2.5" SATA HD Drive
  • 2 x PCI expansion slots
  • 9 ~ 30VDC power input with ATX Power Function
$1,445.00
Availability: In stock
SKU
FES6920
Email
Fan less embedded box, Core 2 Duo 1.6GHz system, 120GB HD, 1GB DDR-II memory, ATX power & 2 x PCI slots. Aluminum alloy chassis (8.4" x 3.7" x 9.4”). -15 to 50 degree C working temperature.
Construction
Rugged aluminum alloy chassis
Embedded System
CPU Type: Intel Core 2 Duo 1.6GHz processor
Memory: DDR-II SODIMM x 1, Max. 2 GB
Expansion:
2 x PCI (standard)
1 x PCI-E, 1 x PCI (optional)
2 x PCMCIA
1 x Mini PCI
Driver Bays: 1 x 2.5" HD Drive Bay (SATA or IDE)
MTBF: 40,000hrs
I/O Port
Serial port: 4 x COM
Com1/3/4:RS-232, Com2:RS-232/422/485
USB: 4 x USB2.0
LAN: 2 x RJ-45, 10/100/1000Base-TX
Audio: Line-in, Line-out, Mic-in by an extension cable
VGA/Keyboard/Mouse:
1 x DB-15 VGA Connector,
1 x PS/2 for Keyboard & Mouse
1 x S-video
I/O Layouts
4 x COM
2 x RJ-45, 10/100/1000Base-TX
4 x USB 2.0 connector
1 x Line-in/Line-out/Mic-in port
1 x DB-15 VGA Connector
1 x PS/2 for Keyboard & Mouse
1 x Power On/Off Switch
1 x Power input
1 x Reset button
Expansion Slot
2 x PCI Slot
2 x PCMCIA Slot
1 x CompactFlash Slot
System LED Indicator
1 x Power LED
1 x HDD LED
Power Supply
1. DC Input:
Internal DC-DC Converter (Default)
Input Voltage: 9V DC~ 30V DC
2. AC Input:
External Power Adapter (Optional)
Input voltage: 100V AC ~ 240V AC @ 50~60Hz
System Support
Windows XP, Windows XP Embedded, Linux, Windows 7
Color
Mustard
Mounting
Wall mount

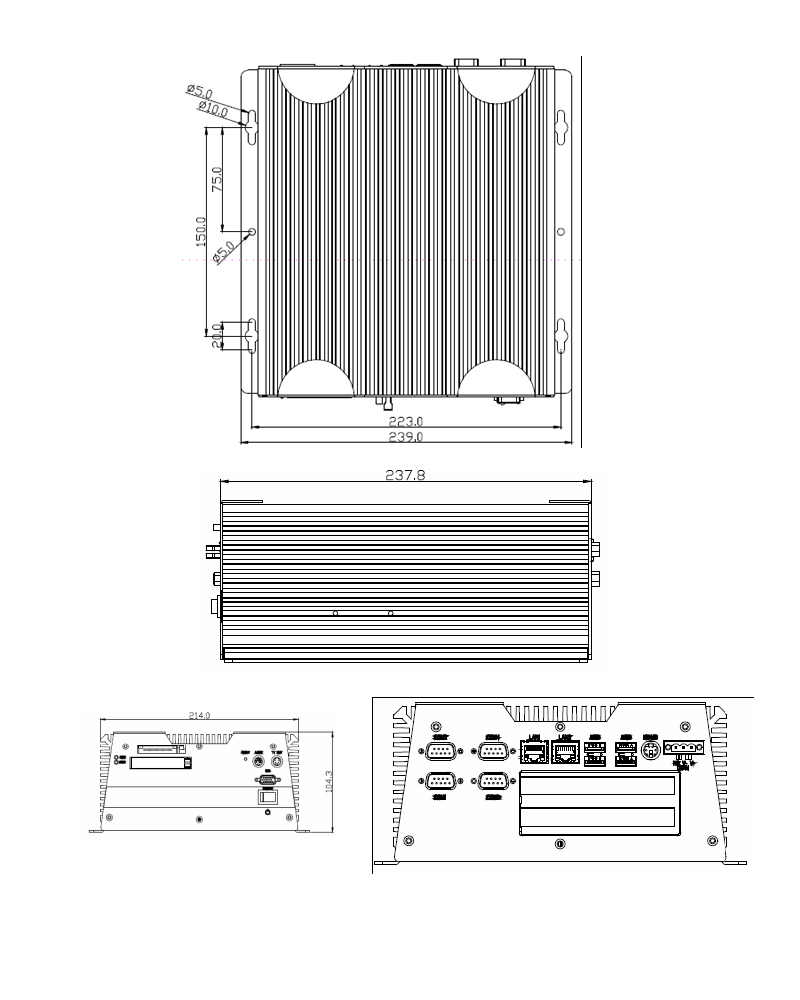

Dimension
8.4"(W) x 3.7"(H) x 9.4"(D)
Weight
12.4lb
Environmental
Operation Temperature: -15 °C ~ 55°C (CFD) / -15°C ~ 50°C (HDD)
Storage: -20°C to 70 °C
Humidity: 5~90% @ 40 °C, non-condensing
Vibration:
5g rms/5 ~ 500Hz/operation (CFD)
1g rms/5 ~ 500Hz/operation (HDD)
Shock:
50G peak acceleration (11ms duration)/CFD
20G peak acceleration (11ms duration)/HDD
EMC: CE/FCC

FES 6920:
Fan less embedded system, Core 2 Duo 1.6GHz CPU, 1GB DDR-II memory, 120GB HD & 2 x PCI expansion slots. Wall mount ready.
Price:$ 1445.00


Document
Description
Download Link
file iconFES_6920-data.pdf
Data Sheet
  • FES6920
    Fan less embedded box
    Core 2 Duo 1.6GHz system
    120GB HD, 1GB memory, ATX power
    2 x PCI slots
    Aluminum alloy chassis (8.4" x 3.7" x 9.4")
    -15 to 50 degree C working Temp.
    Starting at:
    $1,445.00
FES6920
$1,445.00

Construction :
  Compacted rugged fanless micro box has an aluminum die-casting heatsink and a heavy-duty alloy construction. The small form factor embedded box is designed for industrial applications like POS, transportation, control, surveillance and more. It provides high reliability and noiseless performance in harsh environments.

Onboard System :
  The embedded system is powered by Core 2 Duo 1.6GHz processor. It comes with the features of the standard motherboard with fanless design function. It comes with a 2.5" slim-type SATA hard drive, 1 x DDRII SODIMM memory (Max. 2 GB), watchdog timer, 4 x RS-232 ports, 4 x USB ports, daul Gigabit LAN, Audio and VGA. The all-in-one fan less system provides wide working temperature range from 5oF to 122oF (-15oC ~ 50oC), operation vibration at 1G rms 5 to 500Hz and shock at 50G peak acceleration (11ms duration).

Storage Device :
The system comes with a standard 2.5" SATA HD and Compact Flash slot.

Expansion Slots :
We provide 2 x PCI slot and 2 x PCMCIA for the expansion. Optional:1x PCI and 1 x PCI-E expansion slot.

Power Supply :
The fanless industrial PC uses the industry-grade Phoenix type or DC-jack power connector plug, and supports a 9VDC to 30VDC power supply with ATX power function. Optional for 100/220VAC 50/60z external AC power adapter.

Mounting :
Fanless embeddd system can be wall mount.
