Rackmount monitor with a 19 inch 1152 x 900 (Direct) / 1280 x 1024 (Native) industrial LCD monitor, SUN micro resolution, VGA + DVI-D video input, front OSD control, and an 8U high rackmount monitor enclosure. Option for HDMI / BNC / Audio / 3G-SDI input, Resistive or Projected Capacitive type touch screen, and DC power input.
Loading...
7U 17

RMS7170

9U 20.1

RMS9200

RMS8190

  • 8U high rackmount monitor
  • 19 inch 1280 x 1024 industrial LCD monitor
  • Supports 1152 x 900 SUN Micro resolution
  • VGA + DVI-D video input, option for HDMI / BNC / Audio / 3G-SDI input
  • Option for Resistive or Projected Capacitive type touch screen
  • External 100/240 auto-sensing AC power input
  • Option for 12V / 24V / 48V / 125V DC power input
$962.00
Availability: In stock
SKU
RMS8190
Email
19" rackmount monitor with 1152 x 900 (Direct) / 1280 x 1024 (Native) resolution, VGA + DVI-D video input, 100/240VAC power input, and an 8U high rackmount enclosure.
Construction
Heavy-duty steel
LCD panel
Size: 19 inch
Resolution: 1152 x 900 (Direct) / 1280 x 1024 (Native)
Brightness (cd/m²): 250
Contrast Ratio (typ.) : 1000:1
Viewing Angle (H/V): 170° x 160°
Active Area (mm): 376.32H x 270.33V
Colors: 16.7 M
Backlight: LED
MTBF (hrs): 30,000
Touch Screen (Option)
Option for Resistive or Projected Capacitive type touch screen
Video input
VGA + DVI-D video input
Option for HDMI / BNC / Audio / 3G-SDI input
Front panel control
Power on/off switch
OSD membrane switch
Connector
1 x VGA + 1 DVI-D
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 22W, Standby 2W
Option for 12V / 24V / 48V / 125V DC power input
Mounting
8U high rackmount monitor
For standard 19 inch wide rackmount cabinet
Casing Color
Black front panel (RAL 9005)
Weight
12.5 lb / 5.7 kg

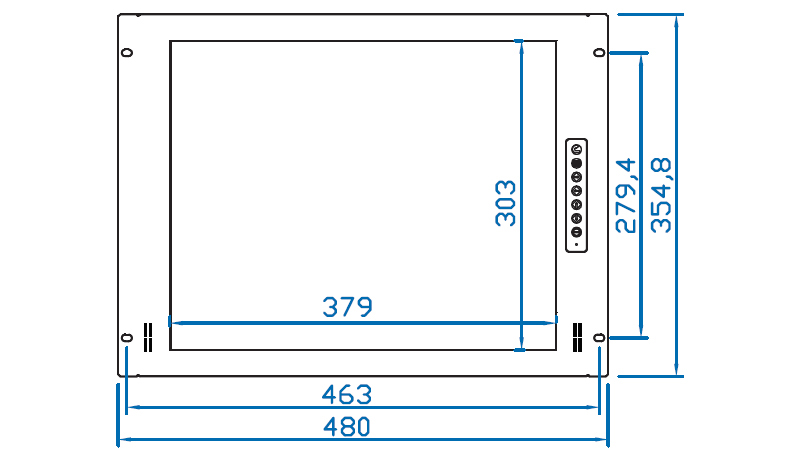

Dimension
18.9"(W) x 2.1"(D) x 14"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11 ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Safety
FCC, CE

RMS8190:
19 inch 1280 x 1024 (Direct) / 1152 x 900 (Native) industrial LCD monitor, VGA + DVI-D video input, 100/240VAC power input, 8U high rackmount monitor enclosure, Black color. Option for HDMI / BNC / Audio / 3G-SDI input, Resistive or Projected Capacitive type touch screen, and DC power input.

Document
Description
Download Link
file iconRMS8190-SP.pdf
Spec Sheet
file iconRMS8190-INST.pdf
Installation Guide
file iconRMS8190-UM.pdf
User Manual
  • RMS8190
    19 inch 1280 x 1024 industrial LCD monitor
    Supports 1152 x 900 SUN Micro resolution
    VGA + DVI-D video input, option for HDMI / BNC / Audio / 3G-SDI input
    Option for Resistive or Projected Capacitive type touch screen
    External 100/240 auto-sensing AC power input
    Option for 12V / 24V / 48V / 125V DC power input
    8U high rackmount monitor
    Starting at:
    $962.00
RMS8190
$962.00

PRODUCT DESCRIPTION
The 19 inch industrial monitor is an active type of digital to digital which connects to the onboard conversion board. The rackmount monitor comes with a standard 15-pin VGA and DVI-D connector on the back of the rackmount monitor for your computer connection. The rackmount monitor offers a 19-inch diagonal LCD with 250nit brightness. The ultra excellent display quality is supported by a maximum contrast ratio of 1000:1 and a resolution up to 1280 x 1024 pixels for the monitor. The LCD display 1152x900 supports Sun Micronative resolution. It provides a 160 degree horizontal and a 160-degree vertical viewing angle for unparalleled viewing ability. The OSD function lets you adjust the monitor for contrast, balance, horizontal position, vertical position, phase, and brightness. It will display 16.7M colors (True color). All the power on/off switch and OSD buttons are located on the front of the industrial monitor for easy access. It comes standard with one 6' VGA cable for the industrial monitor. Option for 10' and 15' VGA cable are available. The auto-sensing power adapter is provided. The 100/240VAC 50/60Hz input power input is integrated into the rackmount monitor. Option for 12V / 24V / 48V / 125V DC power input. The rackmount monitor is ready to mount into the standard 19" rackmount cabinet. It occupies an 8U high rackmount unit.
