19" 1280 x 1024 rackmount monitor with an integrated NVR system supporting 4 x IP Cameras, 1 x LAN port for router connection, and 9U high rackmount monitor enclosure. Option for touch screen, 1000-nit high brightness display, AR protective glass, and DC power input.
Rackmount CCTV with NVR System

RMNVR5015

IP67 Waterproof Rugged Embedded Computer w/ MIL-STD-810F / 461F Testing Standards - FES9267

FES9267

RMNVR5019

  • Rackmount CCTV monitor
  • 19 inch 1280 x 1024 industrial monitor
  • Integrated 4-channel NVR system
  • Supports up to 4 x IP Camera
  • 1 x LAN for router, 1 x DVI video input
  • -5°C to 55°C wide working temperature
  • Option for 1000-nit high brightness display
  • 12V DC power input with external power adapter
Availability: In stock
SKU
RMNVR5019
Rackmount CCTV monitor with a 19 inch 1280 x 1024 LCD, integrated NVR system, 4 x IP Cameras, 1 x LAN port, 1 x DVI video input, and a 9U high rackmount monitor enclosure.
Construction
Heavy-duty steel
LCD Panel
Size: 19” TFT LCD
Max Resolution: 1280 x 1024
Brightness (cd/m²): 350
Colors: 16.7M
Contrast Ratio (typ) : 1000:1
Viewing Angle (H/V): 170° x 160°
Option for 1000-nit high brightness display
Video input
DVI video input
Touch screen (Option)
5-wire resistive touch screen monitor - USB port
Connector
1 x DVI
2 x USB ports for mouse & USB drive
1 x USB for touch screen (Optional)
1 x RJ45 10/100 Ethernet
1 x Line-out audio jack
Front panel control
Flexible 1-4 channel selected by buttons
NVR System
System OS: Linux System
IP cam number: 4 channel IP cam supported
IP cam resolution: 1920 x 1080 @ each channel
Recording format: H.264 recorded
Internet Protocol: IPv4, ARP, TCP, UDP, ICMP, NTP, SMTP, HTTP, RTP, RTSP, RTCP
Real time playback: 4 channel real time playback @ 23fps/channel
Storage: Support SATA I, II Max. 2TB
Auto search: IP cam auto-searched under same domain
Power
12V DC power input
External AC to DC power adapter

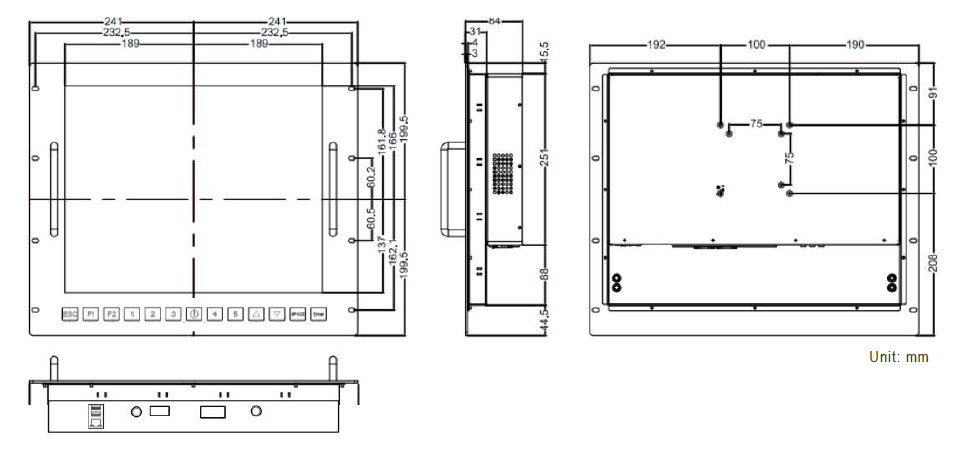

Dimension
18.98” (W) x 15.71” (H) x 3.31” (D)
Environmental
Operating Temperature: -5 to 55°C Degree
Relative Humidity: 10~95%, non-condensing

RMNVR5019:
Rackmount CCTV monitor, 19 inch 1280 x 1024 industrial LCD display, DVI video input, 4-channel NVR system, 1 x LAN, and 12VDC power input. Option for resistive type touch screen, 1000-nit high brightness display, AR protective glass, and 9~36V DC power input.

Document
Description
Download Link
file iconRMNVR5019-SP.pdf
SpecSheet
