The PMW7023 is a 23" 4K open frame LCD monitor supporting 3840 x 2160 native resolution, DP 1.2 + HDMI 1.4 + HDMI 2.0 input, universal or VESA (100 x 100mm) mount, and an open frame metal enclosure. With a display 4 times the resolution of FHD, it achieves superior picture quality with exceptional image clarity and sharpness. The open frame design allows it to be easily fitted into existing equipment or structural housings, such as kiosks. It also allows users to design a custom bezel for individual projects or specific industry requirements.
Loading...
17.3

PMW7017

28

PMW7028

PMW7023

  • 23" 4K UHD open frame LCD monitor
  • Supports 3840 x 2160 native resolution
  • DP 1.2 + HDMI 1.4 + HDMI 2.0 video input
  • Option for 3G-SDI input or MCS multi-display control
  • Option for Resistive or PCAP touch screen - USB
  • Option for video decoding capability up to 1080P
  • PIP sub-screen & PBP dual-screen viewing efficiency
  • Universal & VESA (100 x 100mm) mount ready
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
$1,718.00
Availability: In stock
SKU
PMW7023
Email

23" open frame LCD monitor with 3840 x 2160 4K resolution, DP 1.2 + HDMI 1.4 + HDMI 2.0 input, universal or VESA mount, and an open frame metal enclosure.

Material
Open frame metal construction
Rear rugged metal enclosure
LCD Panel
Size: 23 inch
Native Resolution: 3840 x 2160
Brightness (cd/m²): 250
Contrast Ratio (typ.): 1000:1
Colors: 1.07 Billion, 10-bit
Viewing Angle (H/V): 178° x 178°
Response Time (ms): 25
Dot Pitch (mm): 0.13725
Display Area (mm): 527.04H x 296.46V
Surface Treatment: Anti-glare
Surface Hardness: 3H
Backlight Type: LED
MTBF (hrs): 30,000
Video Input
Standard: DP 1.2 + HDMI 1.4 + HDMI 2.0
Option: 3G-SDI or MCS multi-display control
Touch Screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 10-pt touch screen - USB port
Lockable USB connector
HDMI Modules (Option)
HDMI decoder module 1080P over IP
HDMI receiver module 1080P
HDMI quad display module 1080P
Rear Panel Controls
Power on/off switch & OSD membrane switch
OSD Menu Control
OSD membrane switch control for Picture, Position, Color, OSD Set, Reset, PIP, and MISC
Mounting Type
Universal mount or VESA (100mm) mount
Cable
1 x 6ft DP cable included
1 x Power adapter included
1 x Power cord included
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 45W, Standby 2W
Option for 12V / 24V / 48V / 125V DC power input
Weight
14.7 lb / 6.7 kg

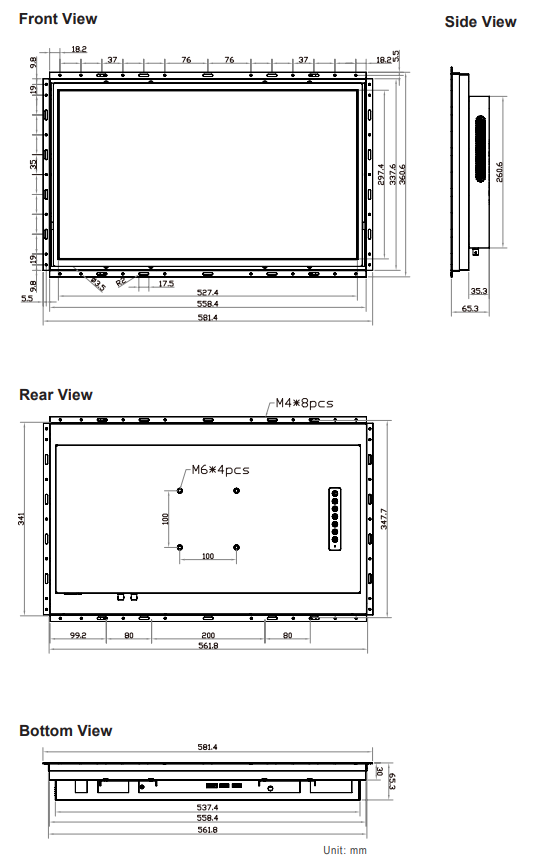

Dimension
22.9"(W) x 2.6"(D) x 14.2"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
FCC, CE, RoHS, TAA Compliant

PMW7023:
23" 4K open frame LCD monitor, 3840 x 2160 native resolution, DP 1.2 + HDMI 1.4 + HDMI 2.0 input, VESA (100 x 100mm) mount ready, 100/240VAC power input, open frame metal enclosure.

Document
Description
Download Link
file iconPMW7023-SP.pdf
Spec Sheet
file iconPMW7023-UM.pdf
User Manual
  • PMW7023
    23" 4K UHD open frame LCD monitor
    Supports 3840 x 2160 native resolution
    DP 1.2 + HDMI 1.4 + HDMI 2.0 video input
    Option for 3G-SDI input or MCS multi-display control
    Option for Resistive or PCAP touch screen - USB
    Option for video decoding capability up to 1080P
    PIP sub-screen & PBP dual-screen viewing efficiency
    Universal & VESA (100 x 100mm) mount ready
    Auto-sensing 100 to 240VAC, 50 / 60Hz power input
    Starting at:
    $1,718.00
PMW7023
$1,718.00

PRODUCT DESCRIPTION
The PMW7023 is an industrial-grade panel mount monitor designed to satisfy a wide range of industrial, commercial, broadcast, and military requirements. The monitor features a 3840 x 2160 native UHD resolution with 310nit brightness, 1000:1 contrast ratio, 1.07 billion colors, and a viewing angle of 89° vertically and horizontally. The video input incorporates DP 1.2 (3840 x 2160, 60Hz) and HDMI 2.0 (3840 x 2160, 60Hz) / 1.4 (3840 x 2160, 30Hz) video input signals and offers on-screen display allowing users to adjust display characteristics or select viewing options with a touch of a button. To give users the ability of video remote management and transmission for multiple monitors over a network, PMW7017 also offers options for a variety of embedded modules including an HDMI Decoder / Extender, Multi-Monitor OSD Controller, SDI, and Portrait Mode. The internal power supply module includes an external 100/240V AC power adapter with an option for 12V / 24V / 48V / 125V DC power input. Acnodes Corporation has designed the PMW7023 to operate in a wide range of temperatures from 0 - 50°C, making it ideal for industrial applications and control room projects. This unit offers a wealth of value-added optional features such as resistive touchscreen integration, MCS control, and various video inputs including 3G/HD/SD-SDI. Weighing at 14.7 lbs and with dimensions of 22.9"(W) x 14.2"(H) x 2.6"(D), it can withstand operating temperatures of 32°F (0°C) to 131°F (55°C) and storage temperature of -7°F (-20°C) to -76°F (60°C). PMW7023 is powered by external auto-sensing 100 to 240V AC, 50/60Hz power input.
