The PMW7017 is a 17.3 " 4K open frame LCD monitor supporting 3840 x 2160 native resolution, DP 1.2 + HDMI 1.4 + HDMI 2.0 input, universal or VESA (100 x 100mm) mount, and an open frame metal enclosure. With a display 4 times the resolution of FHD, it achieves superior picture quality with exceptional image clarity and sharpness. The open frame design allows it to be easily fitted into existing equipment or structural housings, such as kiosks. It also allows users to design a custom bezel for individual projects or specific industry requirements.
Loading...
15.6

PMW7015

23

PMW7023

PMW7017

  • 17.3" 4K UHD open frame LCD monitor
  • Supports 3840 x 2160 native resolution
  • DP 1.2 + HDMI 1.4 + HDMI 2.0 video input
  • Option for 3G-SDI input or MCS multi-display control
  • Option for Resistive or PCAP touch screen - USB
  • Option for video decoding capability up to 1080P
  • PIP sub-screen & PBP dual-screen viewing efficiency
  • Universal & VESA (100 x 100mm) mount ready
  • Auto-sensing 100 to 240VAC, 50 / 60Hz power input
$1,530.00
Availability: In stock
SKU
PMW7017
Email
17.3" 3840 x 2160 4K open frame LCD monitor with DP 1.2 + HDMI 1.4 + HDMI 2.0 video input, universal or VESA mount, and an open frame metal construction.
Material
Open frame metal construction
Rear rugged metal enclosure
LCD Panel
Size: 17.3 inch
Native Resolution: 3840 x 2160
Brightness (cd/m²): 400
Contrast Ratio (type): 1000:1
Colors; 16.7 M, 8-bit
Viewing Angle (H/V): 178° x 178°
Response Time (ms): 16
Dot Pitch (mm): 0.0995
Display Area (mm): 382.12H x 214.94V
Surface Treatment: Anti-glare
Surface Hardness: 3H
Backlight Type: LED
MTBF (hrs): 15,000
Video Input
Standard: DP 1.2 + HDMI 1.4 + HDMI 2.0
Option: 3G-SDI or MCS multi-display control
Touch Screen (Option)
Resistive 1-pt touch screen - USB port
Projected Capacitive 10-pt touch screen - USB port
Lockable USB connector
HDMI Module (Option)
HDMI decoder module 1080P over IP
HDMI receiver module 1080P
HDMI quad display module 1080P
Rear Panel
Power on/off switch & OSD membrane switch
OSD Menu Control
OSD membrane switch control for Picture, Position, Color, OSD Set, Reset, PIP, and MISC
Mounting Type
Universal mount or VESA (100mm) mount
Cable
1 x DP cable included
1 x Power adapter included
1 x Power cord included
Power Supply
Input: Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption: Max. 21W, Standby 2W
Option for 12V / 24V / 48V / 125V DC power input
Weight
7.5 lb / 3.4 kg

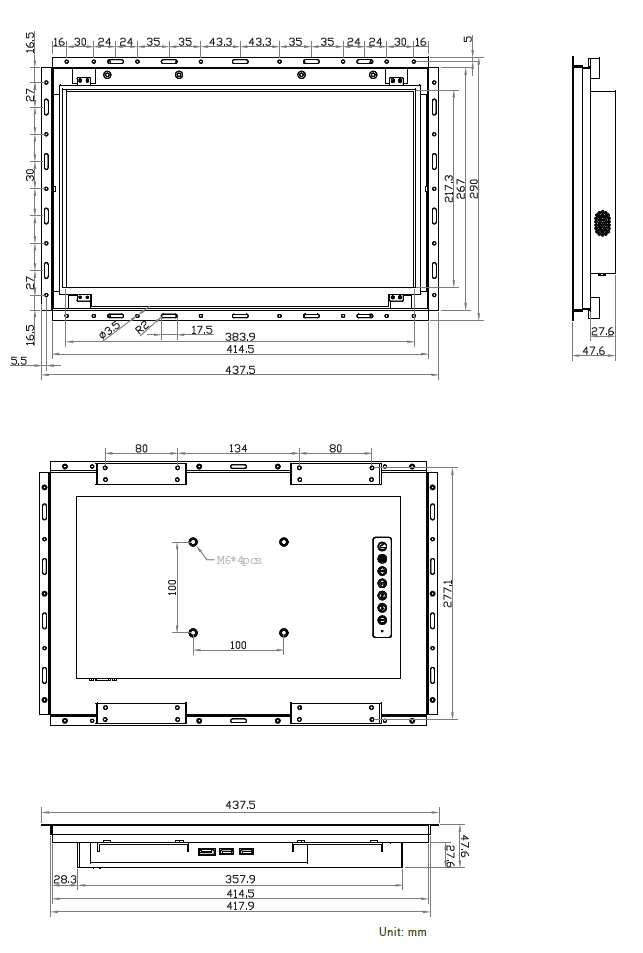

Dimension
17.2"(W) x 1.9"(D) x 11.4"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Altitude (Operating / Non-Operating): 16,000 ft / 40,000 ft
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Compliance
CE, FCC, RoHS, TAA Compliant

PMW7017:
17.3" 4K open frame LCD monitor, 3840 x 2160 native resolution, DP 1.2 + HDMI 1.4 + HDMI 2.0 input, VESA (100 x 100mm) mount ready, 100/240VAC power input, open frame metal enclosure.

Document
Description
Download Link
file iconPMW7017-SP.pdf
Spec Sheet
file iconPMW7017-UM.pdf
User Manual
