Open frame monitor with a 28 inch 1920 x 1080 full HD LED-backlit LCD panel, VGA + DVI-D video input, universal or VESA (100mm) mount, and an open frame metal enclosure. Option for HDMI / DP / Audio / SDI input, quad display module, and DC power supply.
Loading...
23

PMW6230

13.3

APW5130

PMW6280

  • Open frame metal construction
  • 2.6" short-depth metal rugged construction
  • 28" 1920 x 1080 full HD industrial LCD monitor
  • VGA + DVI-D video input
  • Option for HDMI, DP, Audio, or 3G/HD/SD-SDI input
  • Option for HDMI modules and Portrait mode module
  • Universal or VESA (100mm) mount ready
  • External 100/240 auto-sensing AC power adapter
Availability: In stock
SKU
PMW6280
Email
28" 1920 x 1080 full HD open frame LCD monitor with VGA + DVI-D video input, universal or VESA mount, 100/240VAC power input, and an open frame metal enclosure.
Construction
Open frame metal construction
Rear rugged metal enclosure
LCD Panel
Size: 28 inch
Max Resolution: 1920 x 1080
Brightness (cd/m²): 300
Contrast Ratio (typ.): 1000:1
Viewing Angle (H/V): 170° x 160°
Active Area (mm): 620.93H x 341.28V
Colors: 1.07 Billion, 10-bit
MTBF (hrs): 30,000
Video Input
VGA + DVI-D video input
Option for HDMI / DP / Audio / Remote Control / SDI input
HDMI Module (Option)
HDMI decoder module 1080P over IP
HDMI receiver module 1080P
HDMI quad display module 1080P
Rear Panel
Power on/off switch
OSD membrane switch
OSD Menu Control
OSD membrane switch control for brightness, contrast,
phase & clock, color, H & V position, auto-tune
Option for MCS multi-display OSD menu control - RS-232
Mounting Type
Universal mount or VESA (100mm) mount
Power Supply
Auto-sensing 100 to 240VAC, 50/60Hz power adapter
Consumption: Max. 52W, Standby 9W
Option for 12V / 24V / 48V / 125V DC power supply
Weight
27.9 lb / 12.7 kg

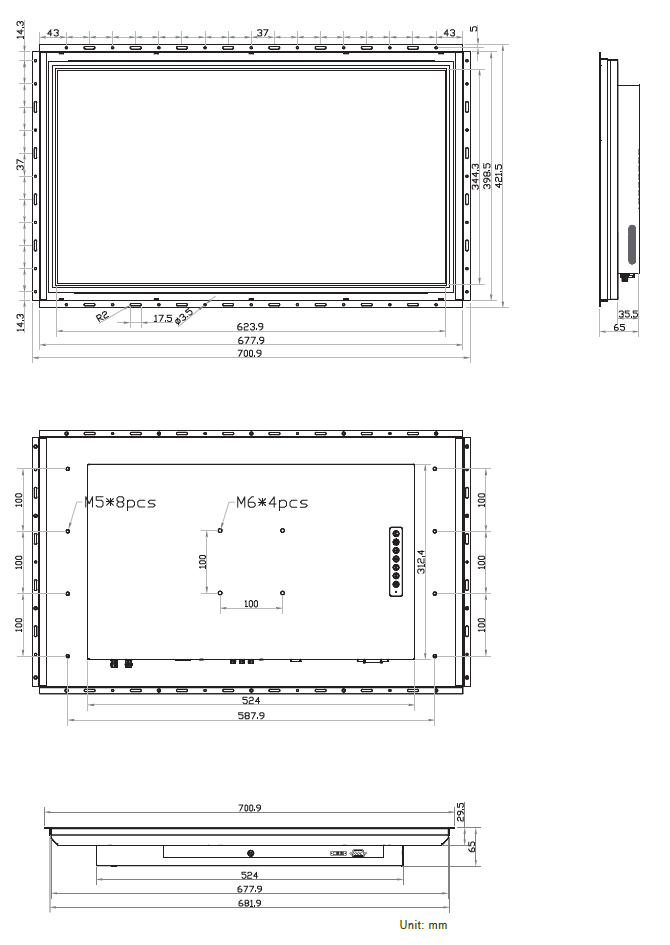

Dimension
27.6"(W) x 2.6"(D) x 16.6"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Safety
CE, FCC

PMW6280:
28" 1920 x 1080 full HD open frame LCD monitor, VGA + DVI-D video input, universal or VESA (100mm) mount ready, open frame metal enclosure, Black color. Option for HDMI / DP / Audio / SDI input, quad display module, and DC power supply.

Document
Description
Download Link
file iconPMW6280-SP(V1-2).pdf
Spec Sheet
  • PMW6280
    28" 1920 x 1080 Full HD LED backlight industrial monitor
    VGA + DVI-D video input
    Option for HDMI, DP, Audio, or 3G/HD/SD-SDI input
    Option for HDMI modules and Portrait mode module
    Universal or VESA (100mm) mount ready
    External 100/240 auto-sensing AC power adapter
    2.6" short-depth metal rugged construction
