Open frame monitor with a 23 inch 1920 x 1080 full HD LED-backlit LCD panel, VGA + DVI-D video input, universal or VESA (100mm) mount, and an open frame metal enclosure. Option for Resistive / Infrared / PCAP type touchscreen, HDMI / DP / Audio / SDI input, and DC power supply.
Loading...
15.6

PMW6156

28

PMW6280

PMW6230

  • Open frame metal construction
  • 2.6" short-depth metal rugged construction
  • 23" 1920 x 1080 Full HD industrial LCD monitor
  • VGA + DVI-D video input
  • Option for HDMI, DP, Audio, or 3G/HD/SD-SDI input
  • Option for Resistive, Infrared, or PCAP type touch screen
  • Universal or VESA (100mm) mount ready
  • External 100/240 auto-sensing AC power adapter
Availability: In stock
SKU
PMW6230
Email
23" 1920 x 1080 full HD open frame LCD monitor with VGA + DVI-D video input, universal or VESA mount, 100/240VAC power input, and an open frame metal enclosure.
Construction
Open frame metal construction
Rear rugged metal enclosure
LCD Panel
Size: 23 inch
Max Resolution: 1920 x 1080
Brightness (cd/m²): 310
Contrast Ratio (typ.): 1000:1
Viewing Angle (H/V): 178°x 178°
Active Area (mm): 527.04H x 296.46V
Colors: 1.07 Billion, 10-bit
MTBF (hrs): 30,000
Video Input
VGA + DVI-D video input
Option for HDMI / DP / Audio / Remote Control / SDI input
Touch Screen (Option)
Resistive, Infrared, or Projected Capacitive type touch screen monitor
HDMI Module (Option)
HDMI decoder module 1080P over IP
HDMI receiver module 1080P
HDMI quad display module 1080P
Rear Panel
Power on/off switch
OSD membrane switch
OSD Menu Control
OSD membrane switch control for brightness, contrast,
phase & clock, color, H & V position, auto-tune
Option for MCS multi-display OSD menu control - RS-232
Mounting Type
Universal mount or VESA (100mm) mount
Power Supply
Auto-sensing 100 to 240VAC, 50/60Hz power adapter
Consumption: Max. 45W, Standby 2W
Option for 12V / 24V / 48V / 125V DC power supply
Weight
14.7 lb / 6.7 kg

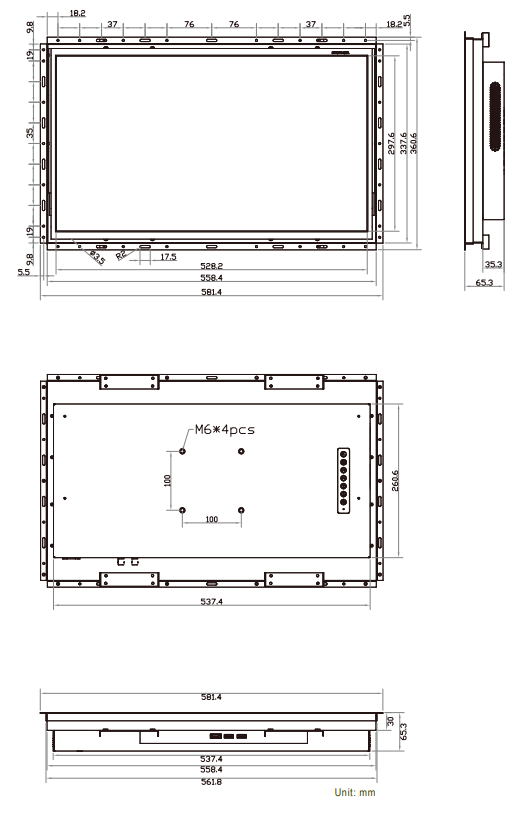

Dimension
22.90”(W) x 2.6"(D) x 14.20"(H)
Environmental
Operating Temperature: 0°C to 55°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 5~90%, non-condensing
Shock: 10G acceleration (11ms duration)
Vibration: 10~300Hz 0.5G RMS random vibration
Safety
CE, FCC

PMW6230:
23" 1920 x 1080 full HD open frame LED-backlit LCD monitor, VGA + DVI-D video input, universal or VESA (100mm) mount ready, open frame metal enclosure, Black color. Option for Resistive / Infrared / PCAP type touchscreen, HDMI / DP / Audio / SDI input, and DC power supply.

Document
Description
Download Link
file iconPMW6230-SP.pdf
Spec Sheet
file iconPMW6230-UM.pdf
User Manual
  • PMW6230
    23" 1920 x 1080 Full HD LED backlight industrial monitor
    VGA + DVI-D video input
    Option for HDMI, DP, Audio, or 3G/HD/SD-SDI input
    Option for Resistive, Infrared, or PCAP type touch screen
    Universal or VESA (100mm) mount ready
    External 100/240 auto-sensing AC power adapter
    2.6" short-depth metal rugged construction
