The PCW8190 is a 19" wide temperature touch panel PC supporting a 1280 x 1024 display resolution, Projected Capacitive touch screen technology, and a bezel-free fanless design. Powered by the 11th Gen Intel Tigerlake-UP3 Core i5-1145GRE processor, it supports up to 32GB DDR4 memory, one M.2 slot, and one removable 2.5" HDD/SDD tray. The panel PC features an IP65-rated flat-front aluminum bezel and a wide working temperature range of -40°C to 70°C (-40°F to 158°F).
Loading...
18.5

PCW8185

PCW8190

  • 19-inch 1280 x 1024 industrial LCD monitor
  • Projected Capacitive type touch screen - USB
  • Intel Tigerlake-UP3 Core i5-1145GRE processor
  • 4GB DDR4 memory (Up to 32GB) & 120GB SSD
  • 1 x removable 2.5" HDD/SDD tray
  • 4 x USB, 2 x GbE LAN, 2 x DP, 4 x RS-232/422/485, 1 x Audio
  • -40°C to 70°C wide range working temperature
  • IP65 rated flat front aluminum bezel
  • Supports Panel or VESA mounting
  • 9~55V DC wide-range power input
$3,085.00
Availability: In stock
SKU
PCW8190
Email
19" wide temp touch panel PC with the Intel Tigerlake-UP3 Core i5-1145GRE processor, 1 x removable 2.5" storage bay, 4 x USB + 2 x LAN + 2 x DP + 4 x COM, IP65 rated aluminum front bezel, and -40°C to 70°C wide range working temperature.
Construction
Aluminum front bezel and metal case
LCD Panel
Size: 19" TFT LCD
Max. Resolution: 1280 x 1024
Brightness (cd/m²): 350-nits
Option for 1000-nits high brightness
Viewing Angle (H/V): 170° x 160°
Colors: 16.7M
MTBF (hrs): 30,000
Touch Screen
Projected Capacitive touch screen – USB
Light Transmission: 90%
System
CPU: Intel Tigerlake-UP3 Core i5-1145GRE
Memory: 1 x DDR4 SO-DIMM, up to 32GB
Storage: 1 x 2.5" Storage Bay & 1 x M.2 B-key 2260 Socket
Expansion Slot
1 x M.2 B-Key 3042/3052
1 x M.2 E-key 2230
I/O Ports
4 x USB Ports
2 x RJ45 GbE LAN
2 x Display Port
4 x RS-232/422/485
1 x Audio
1 x Power Press Button
1 x 3-Pin Terminal Block for Power Input
Power Supply
DC 9~55V power input
Mounting
VESA mount (75 x 75 / 100 x 100)
M4 Screw Hole
Weight
TBD

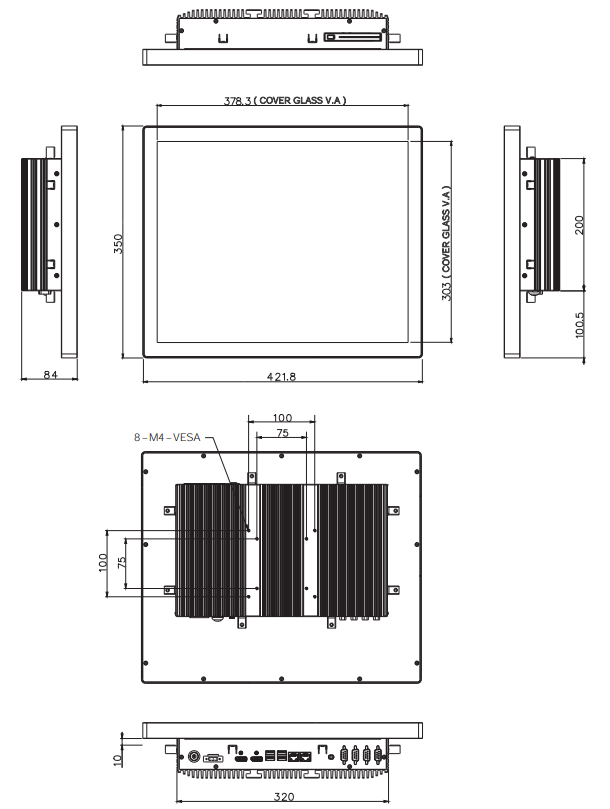

Dimension
16.6”(W) x 13.8”(H) x 3.3"(D)
Environmental
Operating Temperature: -40°C to 70°C
Storage Temperature: -40°C to 70°C
Humidity: 10~90% @40°C, non-condensing
Vibration: 1.5 Grms @10~500Hz
IP Rating: Front Panel IP65
Compliance: FCC, CE
Operating System
Windows 10 IoT Enterprise LTSC

PCW8190:
19" 1280 x 1024 P-CAP touch panel PC, Intel Tigerlake-UP3 Core i5-1145GRE CPU, IP65 aluminum front bezel, 1 x 2.5" removable HDD/SDD tray, 4 x USB + 2 x LAN + 2 x DP + 4 x COM, DC 9~55V power input, -40°C to 70°C extended working temperature.

Document
Description
Download Link
file iconPCW8190-SP.pdf
Spec Sheet
file iconPCW81XX-UM.pdf
User Manual
  • PCW8190
    19" 1280 x 1024 industrial LCD monitor
    350-nits brightness, option for 1000-nits high brightness
    Projected Capacitive type touch screen - USB
    Intel Tigerlake-UP3 Core i5 or i7 processors
    4GB DDR4 memory (Up to 32GB) & 120GB SSD
    -40°C to 70°C wide range working temperature
    IP65 rated flat front aluminum bezel
    9~55V DC wide range power input
