The PCW8185 is an 18.5" wide temperature touch panel PC supporting a 1920 x 1080 display resolution, Projected Capacitive touch screen technology, and a bezel-free fanless design. Powered by the 11th Gen Intel Tiger Lake-U Core i5/i7 processors, it supports up to 32GB DDR4 memory, one M.2 slot, and one removable 2.5" HDD/SDD tray. The panel PC features an IP65-rated flat-front aluminum bezel and a wide working temperature range of -40°C to 70°C (-40°F to 158°F).
Loading...
15.6

PCW8156

19

PCW8190

PCW8185

  • 18.5" industrial PCAP touch panel PC
  • Support Full HD (1920 x 1080) resolution
  • Intel Tigerlake-UP3 Core i3 / i5 / i7 processors
  • 1 x removable 2.5" HDD/SDD tray
  • 4 x USB, 2 x GbE LAN, 1 x DP, 4 x COM, 1 x Audio Out
  • IP65 compliant flat front aluminum bezel
  • -40°C to 70°C wide range working temperature
  • Supports Panel or VESA mounting
  • 12~24VDC wide range power input
$2,990.00
Availability: In stock
SKU
PCW8185
Email
18.5" wide temp panel PC with the Intel Tigerlake-UP3 Core i7/i5 processor, 1 x removable 2.5" storage bay, P-CAP touch screen, 4 x USB + 2 x GbE LAN + 1 x DP + 4 x COM, IP65 rated flat-front aluminum bezel, and -40°C to 70°C wide range working temperature.
Construction
IP65 rated aluminum front bezel
Metal case with bezel-free design
LCD Panel
Size: 18.5" TFT LCD
Max. Resolution: 1920 x 1080
Brightness (cd/m²): 350-nits
Option for 1000-nits high brightness
Contrast Ratio (typ.): 1000:1
Viewing Angle (H/V): 178° x 178°
Colors: 16.7M
MTBF (hrs): 30,000
Touch Screen
Projected Capacitive touch screen – USB
Light Transmission: 90%
System
CPU: Intel Tigerlake-UP3 i3/i5/i7 processors
Memory: 2 x DDR4 SO-DIMM, up to 64GB
Storage: 1 x 2.5" Storage Bay & 1 x M.2 B-key 2260 Socket
Expansion Slot
1 x M.2 B-key 2242/3042 (SATA 3.0, PCIe x 1, USB 2.0)
1 x M.2 E-key 2230 (PCIe x 1, USB 2.0)
External I/O Ports
4 x USB 3.2 Gen2 Ports
2 x RJ45 GbE LAN (Intel® I225-LM supports 2.5GbE LAN)
1 x Display Port
4 x RS-232/422/485
1 x Audio Out
1 x Power Press Button
1 x 3-Pin Terminal Block for Power Input
Power Supply
DC 12~24V power input
Mounting
VESA mount (75 x 75 / 100 x 100)
M4 Screw Hole
Weight
32.6 lb / 14.8 kg (estimated)

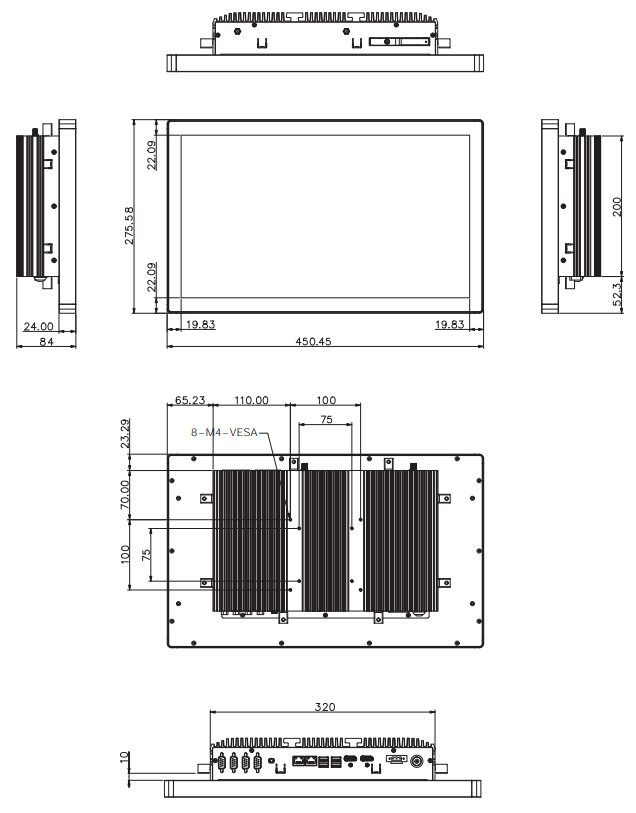

Dimension
17.7"(W) x 10.8"(H) x 3.3"(D)
Environmental
Operating Temperature: -40°C to 70°C
Storage Temperature: -40°C to 70°C
Humidity: 10~90% @40°C, non-condensing
Vibration: MIL-STD-810H, Method 514.8, Procedure I (Compliance)
Shock: MIL-STD-810H, Method 516.8, Procedure I (Compliance)
Operating System
Windows 10 IoT Enterprise LTSC
Compliance
CE, FCC

PCW8185:
18.5" 1920 x 1080 P-CAP touch panel PC, Intel Tigerlake-U Core i CPU, IP65 aluminum front bezel, 1 x 2.5" removable HDD/SDD tray, 4 x USB + 2 x LAN + 2 x DP + 4 x COM, DC 12~24V power input, -40°C to 70°C extended working temperature.

Document
Description
Download Link
file iconPCW8185-SP.pdf
Spec Sheet
file iconPCW81XX-UM.pdf
User Manual
