Fully IP65 rated embedded computer integrated 15 inch touch screen monitor with Core 2 Duo P8400 2.26GHz fan less processor and stainless steel full flat front bezel and rugged enclosure that designed to withstand excess water, oil and other harsh work environment.
Loading...
Monitor Keyboard Drawer KD82216 Front View

KD82216

Panel PC PCH3791 Front View

PCH3791

PCH3591

  • 15 inch 1024 x 768 350-nit industrial LCD display
  • Resistive type touch screen monitor
  • Core 2 Duo P8400 2.26GHz fan less embedded computer
  • 2GB DDR3 memory & 2.5" SATA HD storage device
  • Fully IP65 rated stainless steel enclosure and front bezel
  • 11~32V DC power input with adapter
$2,765.00
Availability: In stock
SKU
PCH3591
Email
Panel PC - 15inch 1024 x 768 resistive type touch screen monitor, Core 2 Duo P8400 2.26GHz fan less embedded computer, fully IP65 rated waterproof stainless steel enclosure & front bezel.
Material
Stainless Steel Front Bezel
Aluminium Extrusion Back Cover
LCD Panel
Size: 15”
Backlight: LED
Display Color: 262K
Brightness: 350
Display Resolution: 1024 x 768
Viewing Angle (H/V): 120'(H)/ 100'(V)
Light Transmission: 80%
MTBF: 50,000 (hrs)
Option for touch screen typr (resistive) MCS Multi-Display
Control Solution, Protective Glass, TC-PAL or NTSC
OSD Control (On Screen Display)
Auto-adjusment for brightness, contrast, phase & clock,
color, horizontal-position, vertical - position, auto-tune & recall
Signal Input
HDMI / DVI-D / VGA / S-VIDEO / RCA
Connectors
1 x Audio, Line-Out
1 x 2.5" SATA HDD
1 X CF Slot (internal)
1 x DC Power Input
1 x VGA DB-15 port
1 x RJ-45 GbE LAN
2 x USB ports
2 x DB-9 RS-232 (COM1-2) connectors

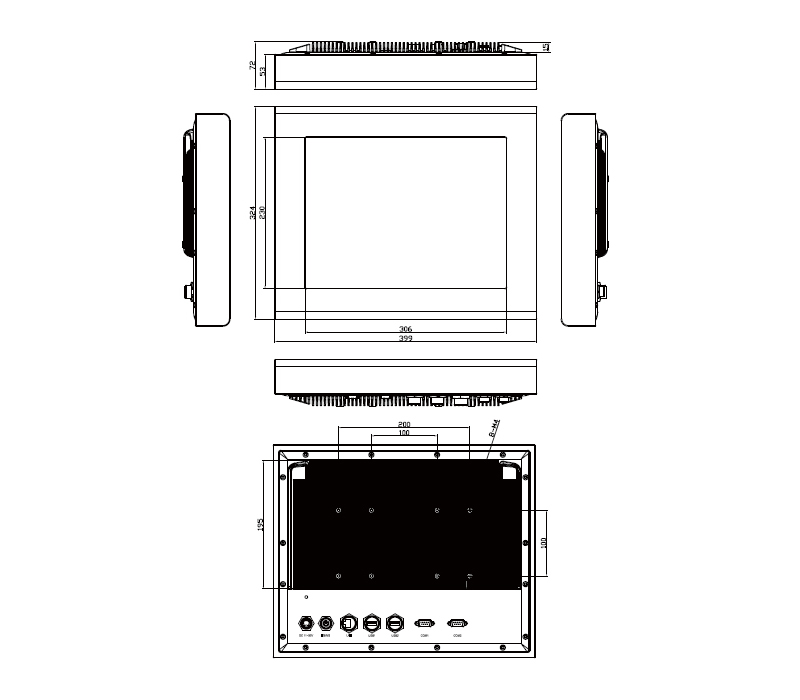

Dimension
399mm x 72mm x 324mm
15.71" x 2.83" x 12.76"
(W) x (D) x (H)
Weight
15.22 lbs
Color
Stainless steel
Mounting
VESA 100mm x 100mm
VESA 200mm x 100mm
IP Rating
IP65
Power Supply
DC 11~32V
Touch Screen
Option for capacitive or resistive touch screen
Certificate
CE, FCC
Environmental
Environment Temperature
Operating: 0 to 50 degree C
Storage: -20 to 60 degrees C
Humidity: 10~90% @ 40C non-condensing

PCH 3591:
15" 1024 x 768 touch panel PC comes with resistive-type touch screen, ultra slim IP65 rated enclosure.
 Atom P8400 2.26 GHz fanless embedded system, stainless steel front and aluminium die-casting back cover.
Price start from: $2,765.00

Document
Description
Download Link
file iconPCH_3591-data.pdf
Data Sheet
file iconPCH_3591-dim.pdf
Dimension
file iconPCH3591-UM.pdf
User Manual
  • PCH3591
    Panel PC Core 2 Duo P8400 2.26GHz CPU
    2GB DDR3 memory & 320GB 2.5" HD
    15" 1024 x 768 resistive type touch screen
    IP65 rated fully enclosure
    IP65 rated front stainless steel bezel
    VESA mount ready
    Starting at:
    $2,765.00
PCH3591
$2,765.00

LCD Panel and Touch Screen:
  The 15 inch (1024 x 768) is an industrial-grade panel PC with an SXGA LCD panel. The resistive-type touch screen is mounted on the front of the LCD panel with 5-wire and an RS-232 interface flat touch window. The resistive touch screen provides protection for the LCD panel and a flat glass bezel with a touch controller IC onboard. The panel PC comes with an IP65 rated front stainless bezel and metal casing.

Onboard System Board:
  The embedded fanless system board comes with Intel Atom P8400 2.26 GHz processor. It comes with the features of the standard mother board and the additional function for industrial application. It supports DDR 3 800MHz modules for up to 2GB, 2 x serial and 2 x USB ports and one RJ-45 port. The working temperature range is from 0°C to 50°C.

Input/Output Connectors:
 The system comes with 2 x USB, 2 x RS232, 1 x power input & 1 x VGA DB-15 port.

Expansion:
  We provide one internal mini PCI expansion slot.

Power Supply:
  The 20W power adapter input is 11~32V DC and it comes with lockable power jack and external 110/220VAC 90W power adapter.

Mounting:
  The casing comes with a standard 100mm x 100mm and 200mm x 100mm VESA mounting holes.

References
What is IP rating?
IP rating refers to the degree of protection against water and dust provided by a computer's enclosure.

What is projected capacitive touch screen?
Projected capacitive touch screen is a multi-touch solution capable to support 10 simultaneous touch points and is extremely durable in most environments.

What is mounting solution?
Mounting solution is a collection of different kinds of mounting methods that can help you to know how to mount your product correctly and rapidly.
