Rack console with 20 inch 1600 x 1200 industrial monitor, 104-keys keyboard with 3-button membrane touch pad, 16 ports KVM switch, 1U high and 25.6 inch depth rack mount drawer.
Loading...
20

APM5200

Panel PC PCH3591 Front View

PCH3591

KD82216

  • 1U high and 25.6 inch depth rack mount drawer
  • 20.1 inch  1600 x 1200 LCD panel
  • 16 ports KVM switch
  • 104-key notepad keyboard with full numerical pad
  • 3-button membrane touch pad
  • Combo free (PS/2 or USB) for keyboard and touch pad
  • 16 x proprietary KVM cables
  • Option BNC+S-Video, DVI-D, DC power and audio
  • 110/220VAC 25W power supply
$1,695.00
Availability: In stock
SKU
KD82216
Email
Monitor keyboard drawer - 20 inch 1600 x 1200 LCD panel, keyboard, touch pad, 16 ports KVM switch, 1U high and 25.6 inch depth rack mount drawer.
Material:
Heavy-duty steel
LCD Panel:
Size: 20.1"
Max. Resolution: 1600 x 1200 (UXGA)
Brightness: 300
Pixel Pitch:0.255(H) x 0.255(V)mm
Contrast Ratio: 800:1
Response time: Tr=1ms / Tf=4ms
Viewing Angle: 160 °(L/R), 160°(U/D)
Colors: 16.7M colors
MTBF: 50,000 hours
Keyboard type :
104-key keyboard with 2-button mechanical mouse & numerical key (combo free)
3-button membrane touch pad
On Screen Display Control:
Brightness, Contrast, Phase & Color, H &V position, Auto-tune, Recall & Language
Video Input:
Video Synchronization: 45 ~ 80KHz, VGA (standard)
Front Panel Controls:
Power on/off switch
OSD(On Screen Display)
16 membrane KVM switch buttons and indicted LEDs
KVM Switch:
16 port USB KVM switch
Connector type: proprietary DB-15 KVM connector
Cascades level: 8 levels, up to 128 servers
Resolution: 1,600 x 1,200
Supprt hot-pluggable cable and built-in KVM switch buttons
Multilingual OSD: English, France, German, Spanish, Italian, Russian, Simplified Chinese, Japanese
Hotkey combination: Scroll-lock, Cap-lock, Num-lock, Alt, Ctrl & Win
Security: Password enable & disable, up to 8 users profile for port access
PC Selection: Front button, OSD menu & hotkey
KVM Switch connector :
16 x D-Sub 15 pin (female) for VGA / Keyboard /mouse
(Combo Interface, USB or PS/2)
1 x D-sub 15 pin for cascades KVM port
Cable:
16 x 6' 4-in-1 KVM cable for VGA / Keyboard /mousel
Optional for 10' or 15'
KVM side: 1 x D-sub 15 pin proprietary KVM connector
Server side: 1 x D-sub 15 pin VGA and 1 x USB or 2 x PS/2 connectors
Power Supply:
100- 240 V AC Input
Optional for DC power (+48V/ + -24V/ + -12V)
50W, 45W for Panel
Support Platform:
Dos, Windows (3.1, 9x, 2000, NT4, ME, XP, 2003 Server) Linux, Novell 3.12-6, HP UX, SUN
Color:
Black
Environmental:
Temperature:
Operate 0°~ 50°C / 32°~122°F
Storage-25°~ 65°C / -4°~140°F
Humidity: 8%~ 95% RH
Safty:
CE, FCC, RoHS
Compatibility:
Multi plat form: Support PS/2, SUN and USB

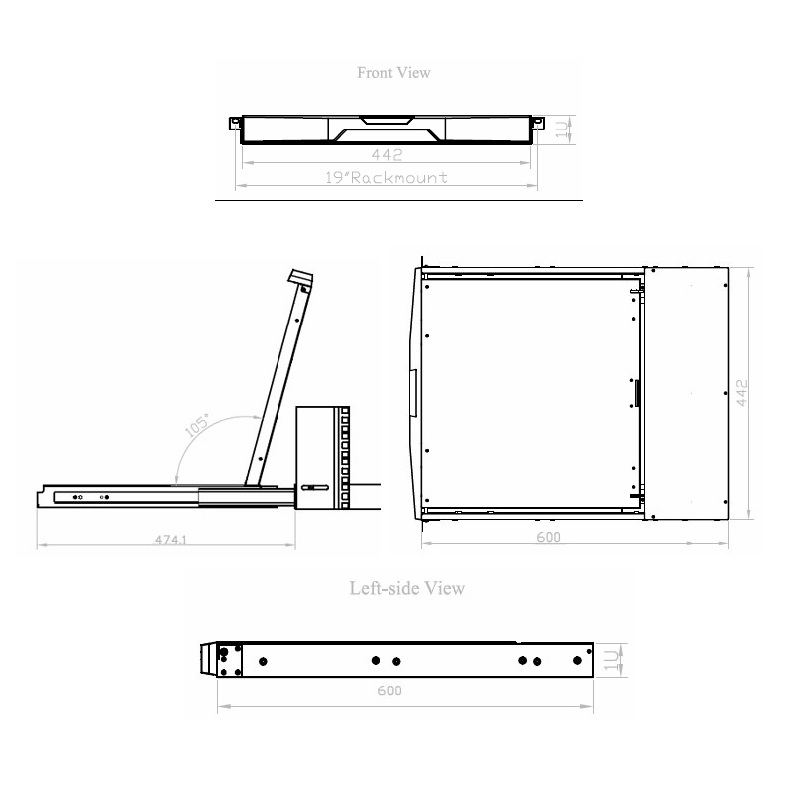

Dimension:
17.4"(W) x 1.73”(H) x 25.6"(D)

KD 82216
LCD keyboard drawer, 20 inch 1600 x 1200 monitor, VGA port, keyboard & touch pad and 16 port KVM switch and 1U high 25.6 inch depth rack mount monitor drawer. Black color

Price: $1,695



Document
Description
Download Link
file iconKD_82216-data.pdf
Data Sheet
file iconKD_82216-dim.pdf
Dimension
file iconKD_82216-um.pdf
User Manual
  • KD82216
    Monitor keyboard drawer
    20 inch 1600 x 1200 LCD panel
    Keyboard & touch pad
    16 port KVM switch
    1U high & 25.6" depth rack mount drawer
    Starting at:
    $1,695.00
KD82216
$1,695.00

LCD monitor
  The 20 inch industrail monitor comes with  1600 x 1200 display resolution and standard 15-pin VGA connector on the back of the rackmount drawer for your rack server connection. The OSD function lets you adjust the LCD monitor for the best view. All the OSD buttons are located on the front of the LCD monitor for easy access. The monitor can be tilted to a 90 degree horizontal angle. The auto-shutoff function enables whenever the monitor drawer is back to its resting position. This allows you to save LCD monitor life.

Keyboard and pointing device
  The keyboard and 3-button touchpad (PS/2 type) are mounted on the front of the rackmount drawer underneath the LCD monitor, Both of them areconnected to a standard USB type connector on the back of the rackmount drawer for you Sun system connection. The 104-key keyboard comes with Sun keys and 10-key keypad.

KVM switch
  We provide the KVM switch function for your unique hardware applications. The 16 ports DB-15 KVM switch is built into the keyboard drawer and provides the 16 KVM ports and 1 x Cascade KVM port (1 x VGA, 2 x PS/2) on the back of the drawer. You can select the server through the OSD (on screen display) menu or front hot-key buttons. The user can access server independly and simultaneously throught the matrix KVM switch. It support hot-plug function and comes with a standard 6' high-density KVM cable for each individual KVM port. The KVM switch is compatible with Sun and PC system. Optional for 10' or 15' KVM cable.

Rack mount drawer
  The low profile 1U drawer saves on rack space and integrates an LCD monitor, keyboard and track ball into a complete unit. The ball-bearing slide rail is mounted on the each side of the drawer so that you can pull-out the drawer from a 19 inch rack cabinet. Two thumb-lockers are  installed on the front panel to lock the drawer inside the rack when the monitor keyboard drawer is not using.

Cable for monitor, keyboard and pointing device
  We provide 16 x 6-feet 15pins D-sub proprietary KVM cable. Optional: 10-feet and 15-feet cable.

Power supply
  It comes with one 110/220VAC 12V/5A external power adapter.

Mounting
  Monitor keyboard drawer is ready to mount into a standard 19 inch rack cabinet, the standard rear mounting bracket can be extended up to 34 inch deep for the rack server cabinet.
