Fanless Panel PC comes with a 24 inch WUXGA 1920 x 1200 LCD powered by the Core i5-7200 2.6GHz CPU. It features a resistive type touch screen, 900-nit brightness display, IP65 rated flat front bezel, and -10° to 50°C wide range working temperature.
27

PCH8270

21.5

PC5026

PC5826

  • IP65 rated flat front bezel
  • 24 inch WUXGA 1920 x 1200 LCD
  • Resistive type touch screen monitor
  • 7th generation Core i5-7200U 2.6GHz CPU
  • 1 x RS232, Dual LAN, 6 x USB, 1 x HDMI
  • -10° to 50ºC wide range working temperature
  • 100/220VAC power input
$2,485.00
Availability: In stock
SKU
PC5826
24 inch WUXGA 1920 x 1200 touch panel PC with the Core i5-7200U 2.6GHz CPU, IP65 rated flat front bezel, and -10° to 50°C wide range working temperature.
Material
IP65 rated rugged enclosure
LCD Panel
Size: 24"
Max. Resolution: 1920 x 1200
Brightness (cd/m²): 900
Contrast Ratio (typ.): 1000:1
Viewing Angle (H/V): 178°/ 178°
Active Area (mm): 521.4(H) x 327.0(V)
Response Time (ms): 14
Colors: 1.07B
System
CPU: Core i5-7200U 2.6Hz
Chipset: SoC
Memory: 2 x DDR4 SO-DIMM
8GB (std.), max. 32GB
Storage: 120GB mSATA SSD
Ethernet: i2110AT Controller, i219-LM Connection
Graphic: Gen. 9 integrated HD Graphics
Real Time Clock: Chipset integrated RTC
System Indicator
LED indicators for power and HDD
Touch Screen
Resistive-type touch screen, USB
WiFi (option)
802.11 b/g/n 2 x 2 Dual Band
Power Supply
100~220VAC power input
Consumption: 30W
Mounting
VESA mount
Option for panel mount

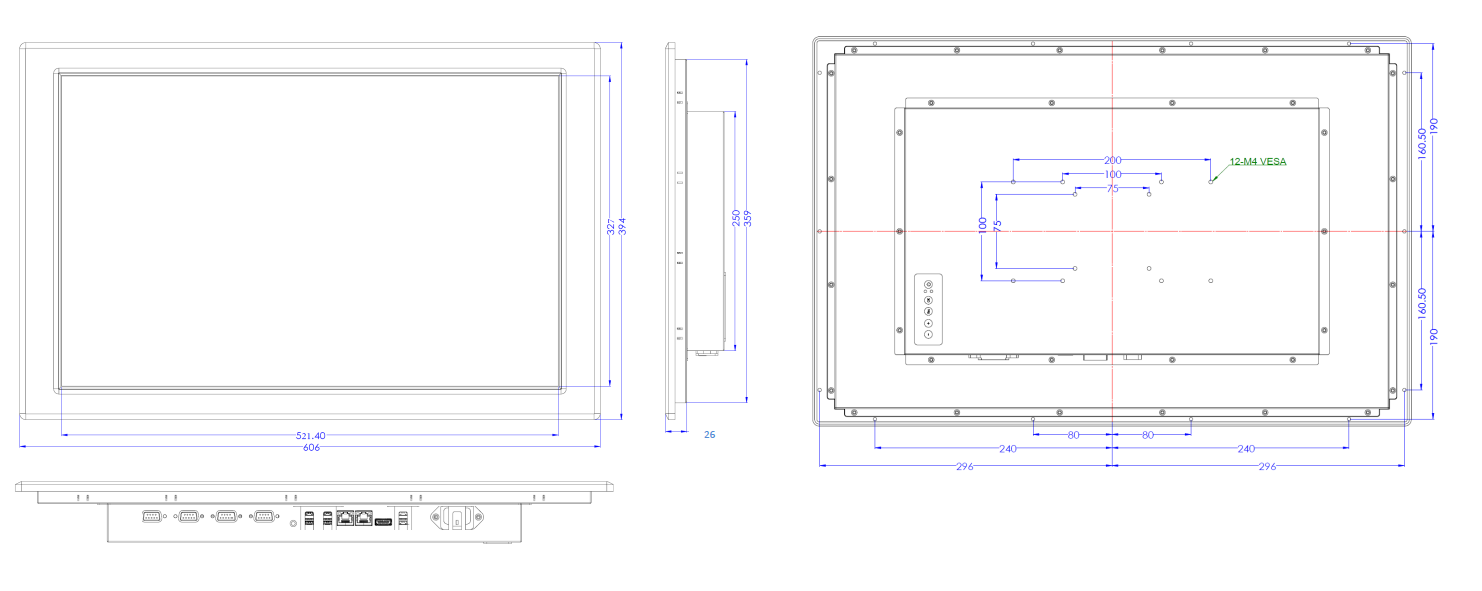

Dimension
22.8”(W) x 13.9”(H)
Connectors
1 x RS232
4 x USB 3.0
2 x USB 2.0
2 x Gigabit Ethernet ports (RJ-45)
1 x HDMI output
1 x 100~220 AC input
Environmental
Operating Temperature: -10°C to 50°C
Storage Temperature: -30°C to 70°C
Relative Humidity: 10% to 95%, noncondensing
IP Rating
IP65

PC5826:
Fanless Panel PC, 24 inch WUXGA 1920 x 1200 LCD, resistive-type touch screen, Core i5-7500U 2.6GHz CPU, 8GB DDR4 SODIMM memory, 120GB mSATA SSD, AC power input, IP65 rated flat front bezel, Black color.

Document
Description
Download Link
file iconPC5826-SP.pdf
Spec Sheet
