Antimicrobial Panel PC comes with a 21.5 inch 1920 x 1080 LED backlight LCD monitor, antivirus P-cap multi-touch screen, Celeron N3350 2.4GHz or 7th Gen. Core i5-7200U 2.5GHz CPU, dual GbE LAN, -10°C to 55°C wide range working temperature, and 110/240VAC power input. Option for WiFi.
PC5026
- IP65 rated antimicrobial coated flat front bezel
- SIAA certified antivirus P-cap multi-touch screen
- 21.5" 1920 x 1080 Full HD industrial LCD monitor
- Celeron N3350 2.4GHz or 7th Gen. Core i5-7200U 2.5GHz CPU
- VGA / HDMI / DP video ports
- -10°C to 55°C wide range working temperature
- 110/240VAC power input
In stock
SKU
PC5026
21.5" 1920 x 1080 Full HD antimicrobial panel PC powered by Intel Celeron or 7th Gen. Core i5 CPU with P-cap multi-touch screen, Dual GbE LAN, and an IP65 rated flat front bezel.
- Material
- IP65 rated front bezel
Antimicrobial coating on metal housing
- LCD Panel
- Size: 21.5 inch
Max. Resolution: 1920 x 1080
Brightness (cd/m²): 300
Contrast Ratio (typ.): 1000:1
Active Area (mm): 476.64H x 268.11V
Pixel Pitch (mm): 0.248H x 0.248V
Colors: 16.7M (8 bits + FRC)
- System
- CPU: Celeron N3350 2.4GHz / 7th gen. Core i5-7200U 2.5GHz
Chipset: SoC Integrated
Memory: 4GB DDR3 SO-DIMM / 8GB DDR4 SO-DIMM
Storage: mSATA Storage
Ethernet: Intel i211-AT / i219-LM / Dual i210-AT
BIOS: AMI Flash
- Touch Screen
- SIAA certified anti-virus/antimicrobial P-cap multi-touch screen
- System Indicator
- LED indicators for power and HDD
- Graphic
- Intel Gen 9 integrated HD Graphics
- Watchdog
- Programmable 1~255 sec.
- WiFi (Option)
- 802.11 b/g/n 2 x 2 Dual Band
- PC5026A Connectors
- 2 x RS232
2 x USB 2.0, 2 x USB 3.0
1 x VGA, 1 x DP output
2 x RJ45 GbE LAN
1 x AC Input
1 x Audio Line Out
- PC5026B Connectors
- 4 x RS232
2 x USB 2.0, 4 x USB 3.0
1 x HDMI output
2 x RJ45 GbE LAN
1 x AC Input
1 x Audio Line Out
- Power Supply
- 110~240V AC input (IEC C14/15)
1 x Power Cord
- Mounting
- VESA mount

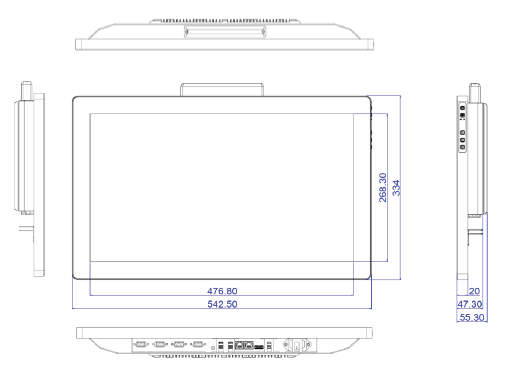

- Dimension
- 21.36 (W) x 13.15 (H) x 2.18 (D) inch
542.50 (W) x 344 (H) x 55.30 (D) mm
- Environmental
- Operating Temperature: -10°C to 55°C
Storage Temperature: -30°C to 70°C
Relative Humidity: 10~95%, non-condensing
- IP Rating
- Front IP65
PC5026A:
21.5" 1920 x 1080 LED LCD monitor, Celeron N3350 2.4GhZ CPU, 4GB DDR3L SO-DIMM memory (Max. 8GB), Dual i210-AT Ethernet, AMI BIOS 16Mbit Flash, 2 x RS232, 4 x USB, 2 x GbE LAN, 1 x VGA, and 1 x DP output.
PC5026B:
21.5" 1920 x 1080 LED LCD monitor, 7th gen. Core i5-7200U 2.5GHz CPU, 8GB DDR4 SO-DIMM memory (Max. 32GB), i211-AT & i219-LM Ethernet, AMI BIOS 128Mbit Flash , 4 x RS232, 6 x USB, 2 x GbE LAN, and 1 x HDMI output.
Lead Time: 6 to 8 weeks
Document
Description
Download Link
PC5026-SP.pdf Spec Sheet
