Fanless panel PC with a 15.6" 1366 x 768 widescreen LCD panel, resistive type touch screen panel, ABS plastic, 4GB DDR4 memory, built-in 802.11 a/b/g/n/ac wireless module, IP64 rated front bezel, and -20°C to 50°C extended working temperature. Option for Core i5-6300U CPU and panel/rack mounting kit.
Loading...
12.1

FPC80121

18.5

FPC80185

FPC80156

  • 15.6" 1366 x 768 (16:9) LED LCD monitor
  • Resistive type touch screen with anti-glare
  • Intel Celeron 3955U Dual-Core 2.0GHz CPU
  • 4GB DDR4 memory, max. 8GB
  • 128GB mSATA SSD
  • Built-in 802.11 a/b/g/n/ac wireless module
  • -20°C to 50°C extended working temperature
  • 36W 90~264VAC external power adapter
  • IP64 rated front bezel
Availability: In stock
SKU
FPC80156
Email
15.6" 1366 x 768 light fanless touch panel PC with Celeron 3955U CPU, 4GB DDR4 memory, IP64 rated front panel, and -20°C to 50°C extended working temperature.
Material
PC + ABS plastic on front panel
LCD Panel
Size: 15.6 inch
Resolution: 1366 x 768 (16:9)
Brightness (cd/m²): 400
Contrast Ratio: 500:1
Viewing Angle (H/V): 170° / 160°
Pixel Pitch (mm): 0.240(H) x 0.240(V)
Colors: 16.2M
MTBF (hrs): 50,000
System
CPU: Celeron 3955U Dual Core 2.0GHz CPU
Option for 6th generation Core i5-6300U 2.4GHz CPU
Memory: 4GB DDR4 memory, max. 8GB
Storage: 128GB mSATA SSD
Touch Screen
Resistive type touch screen with anti-glare coating, RS-232 interface (std)
Option for projected capacitive type touch screen with anti-glare coating, USB interface
Connectors
1 x RS-232 (DB-9)
1 x RS-232/422/485 (DB-9)
2 x GbE LAN
4 x USB 3.0
1 x HDMI output
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x 9~30V lockable power jack
Audio
AMP 3W + 3W internal speakers
Camera & Microphone
2-megapixel with low light function, digital microphone
Wireless
IEEE 802.11 a/b/g/n/ac, Bluetooth V4.1
Mounting
Option for panel or rack mounting kit
Power Supply
36W 90~264VAC external power adapter
Color
Black
Weight
14.33 lb / 6.5 kg

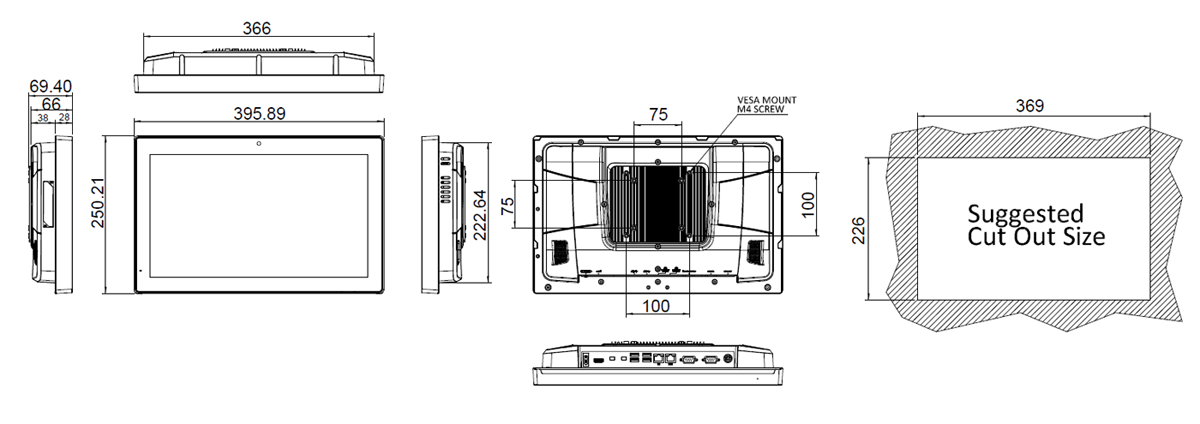

Dimension
15.59"(W) x 9.84"(H) x 2.52"(D)
Environmental
Operating Temperature: -20°C to 50°C
Storage Temperature: -20°C to 60°C
Relative Humidity: 10% to 95%, noncondensing
IP Protection
IP64 compliant front panel
Certification
CE / FCC

FPC80156:
15.6" 1366 x 768 fanless panel PC with Celeron 3955U 2.0GHz CPU, 4GB DDR4 memory, 128GB mSATA SSD, built-in 802.11 a/b/g/n/ac wireless module, resistive type touch screen, anti-glare coating, 90 to 264VAC external power adapter, and -20°C to 50°C extended working temperature.

Document
Description
Download Link
file iconFPC80156-SP(V2-1).pdf
Spec Sheet
  • FPC80156
    15.6" 1366 x 768 (16:9) LED LCD monitor
    Resistive type touch screen with anti-glare
    Option for projected capacitive type touch screen
    Intel Celeron 3955U Dual-Core 2.0GHz CPU
    Option for 6th gen. Core i5-6300U 2.4GHz CPU
    4GB DDR4 memory, max. 8GB
    128GB mSATA SSD
    Built-in 802.11 a/b/g/n/ac wireless module
    -20°C to 50°C extended working temperature
    36W 90~264VAC external power adapter
    IP64 rated front bezel
    Starting at:
FPC80156
