Fanless embedded computer powered by the Core i CPU comes with 4GB DDDR4 memory, 4 x GbE ports, 4 x USB 3.1, 1 x 2.5" hot-swappable SSD tray, and -25°C to 60°C wide range working temperature. Option for DIN mounting bracket, AC power adapter, and WIndows 10 OS.
Loading...
Fanless Embedded Computer with Intel Core i CPU - FES7501

FES7501

Fanless Embedded PC with Intel Celeron J3455 1.5GHz CPU - FES8097

FES8097

FES7531

  • Low-profile fanless embedded computer
  • Intel 8th/9th Gen. Core i processors
  • DVI-I + DP dual display outputs
  • 4 x GbE, 4 x USB 3.1, 2 x RS-232/422/485
  • 1 x 2.5" hot-swappable SSD tray with slot lock
  • 1 x M.2 2280 SATA interface for storage
  • 4-CH isolated DI and 4-CH isolated DO
  • -25°C to 60°C wide range working temperature
  • 12V DC power input, option for external AC power adapter
Availability: In stock
SKU
FES7531
Email
Low-profile fanless embedded PC with the Core i CPU, 1 x 2.5" hot-swappable SSD tray, 4GB DDR4 memory, and -25°C to 60°C wide range working temperature.
Construction
Compact rugged enclosure
System
CPU: 8th / 9th Gen. Core i processor
Chipset: Intel H310 platform controller hub
Memory: 4GB DDR4 SODIMM memory, max. 32GB
Graphics: Integrated Intel UHD Graphics 630
Video Port
1 x DVI-I for DVI/VGA output, supporting 1920 x 1200 resolution
1 x Display Port, supporting 4096 x 2304
Expansion Slot
3 x full-size mini PCIe sockets with internal SIM sockets
Storage
1 x hot-swappable 2.5” HDD/SDD tray
1 x M.2 2280 SATA interface
Panel I/O
4 x GbE Ethernet ports by 1 x i219 and 3 x i210
4 x USB 3.1 Gen 1, 2 x USB 2.0
2 x RS-232/422/485 (COM1 / COM2)
1 x 3.5mm jack for mic-in and speaker-out
4-CH isolated DI and 4-CH isolated DO
Power Supply
12V DC power input
Option for external 120/220VAC power adapter
Weight
5.51 lb / 2.5 kg

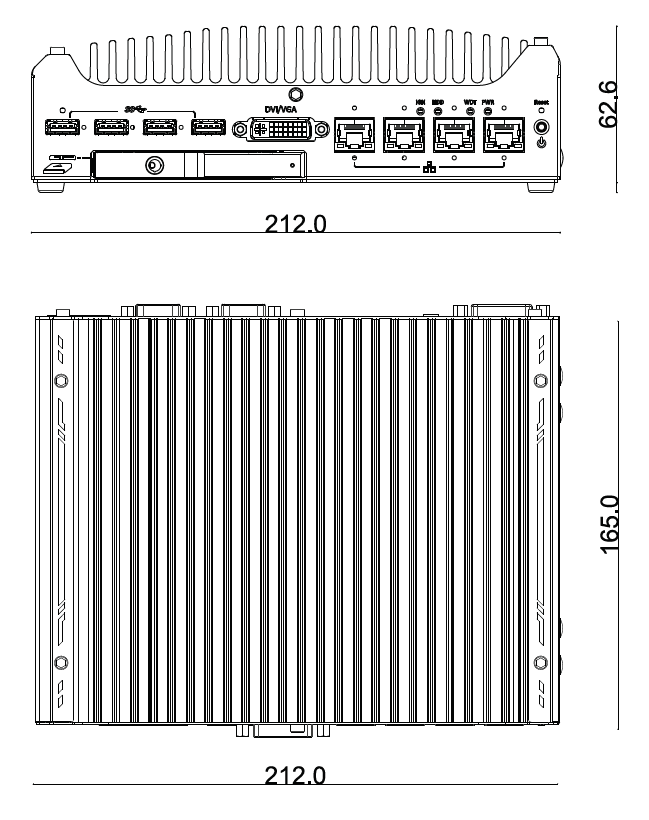

Dimension
8.35”(W) x 6.50”(D) x 2.48”(H)
Mounting
Wall mount (std) or DIN-rail mount (opt)
Environmental
Operating Temperature: -25°C to 60°C
Storage Temperature: -40°C to 85°C
Humidity: 10% to 90%, non-condensing
Vibration: Operating, MIL-STD-810G, Method 514.6, Category 4
Shock: Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC: CE/FCC Class A, according to EN55032 & EN55024

FES7531:
Fanless embedded PC, 8th / 9th gen. Core i CPU, 1 x removable 2.5" SSD tray, 4GB DDR4 memory, 4 x GbE, 2 x COM ports, 4 x USB 3.1, 2 x USB 2.0, wall mount, and 12V DC power input. Option for AC power adapter, DIN rail mounting kit, and Windows 10 OS.
Lead Time: 3 Weeks

Document
Description
Download Link
file iconFES7531-SP.pdf
Spec Sheet
file iconFES7531-UM.pdf
User Manual
  • FES7531
    Fanless embedded computer
    8th / 9th generation Core i CPU
    4GB DDR4 memory, max. 32GB
    128GB SSD, wide temperature
    1 x DP + 1 x DVI-I video port
    4 x GbE, 2 x COM, 4 x USB 3.1, 2 x USB 2.0
    Wall mount, option for DIN-rail mounting kit
    12V DC power input, option for AC power adapter
    Option for Windows 10 OS
    Starting at:
FES7531

PRODUCT DESCRIPTION
Fanless embedded computer featuring Intel Core i processor and a removable SSD tray. The system is powered by the 8th/9th generation Core i3-8100T quad-core CPU with H310 platform controller hub chipset and UHD Graphics 630. Options are available for the 8th/9th generation Core i5 or i7 multiple core CPU. FES7531 comes standard with 4GB memory and provides options for memory up to 32GB. The storage for the system features 1 x M.2 2280 SATA interface and 1 x hot-swappable 2.5" SSD tray that allows users to remove the storage drive without turning off the PC or disassembling the chassis. FES7531 also provides DVI-I + DP dual display outputs and a rich I/O interface, including 4 x GbE LAN, 4 x USB 3.1, 2 x USB 2.0, 2 x COM, and 4-CH isolated DI/DO. With its compact rugged enclosure, FES7531 measures at just 8.35”(W) x 6.50”(D) x 2.48”(H) and weighs 5.51 lbs. The system has a wide range working temperature of -25°C to 60°C and MIL-STD-810G vibration and shock.
